📊 Basic Information
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001-2000
Usage
Rectifier Transformer
Frequency
Intermediate Frequency
Conditions
For Electric Furnace

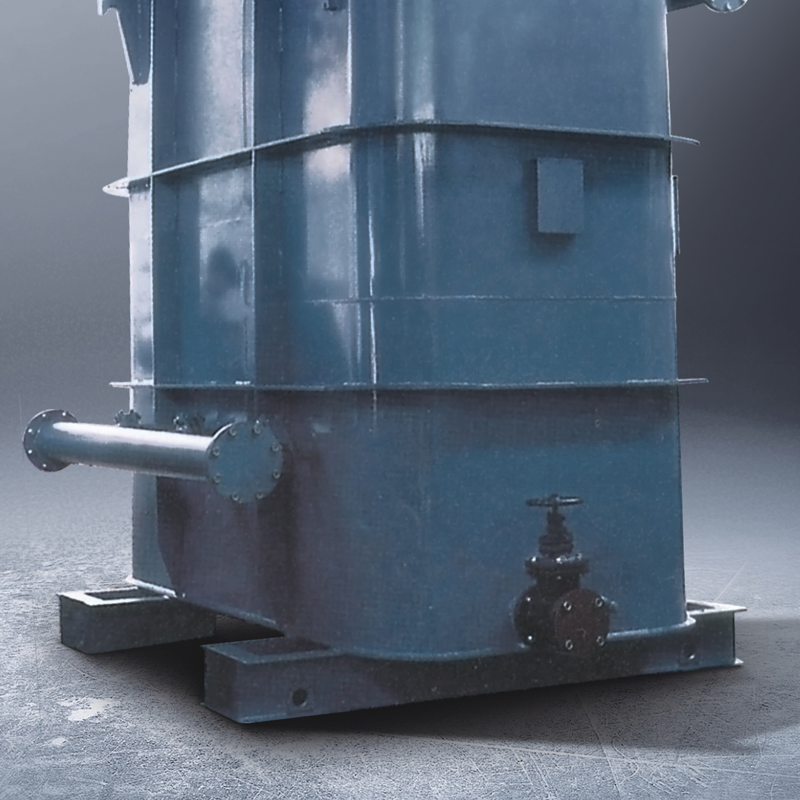

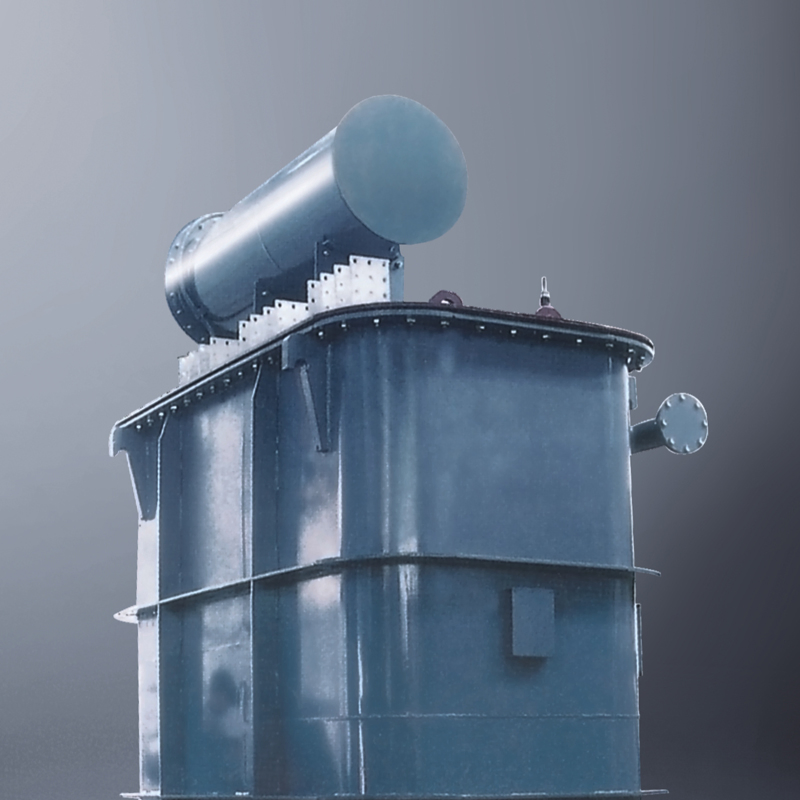

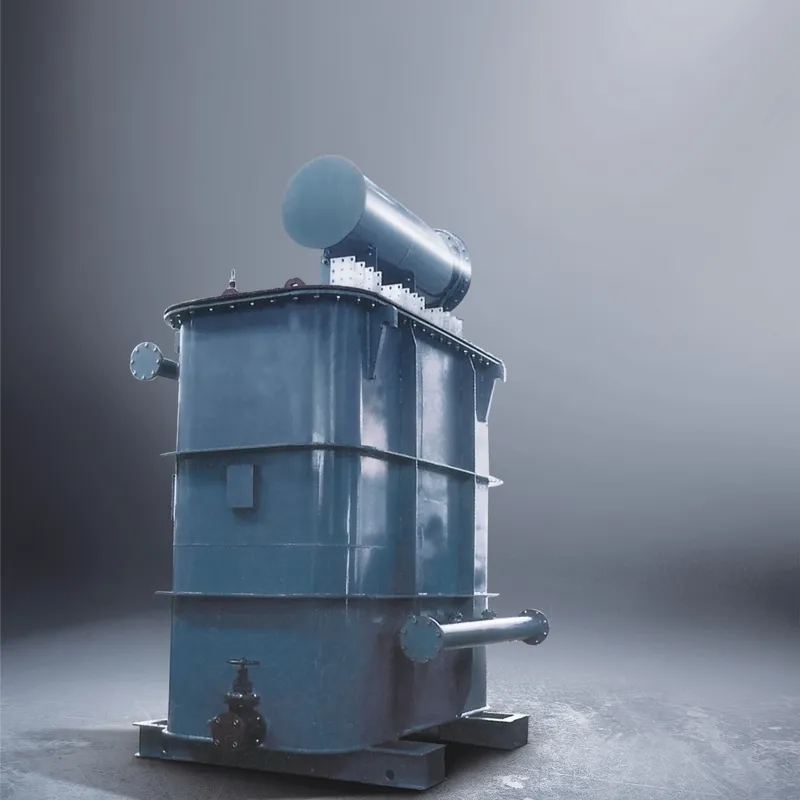

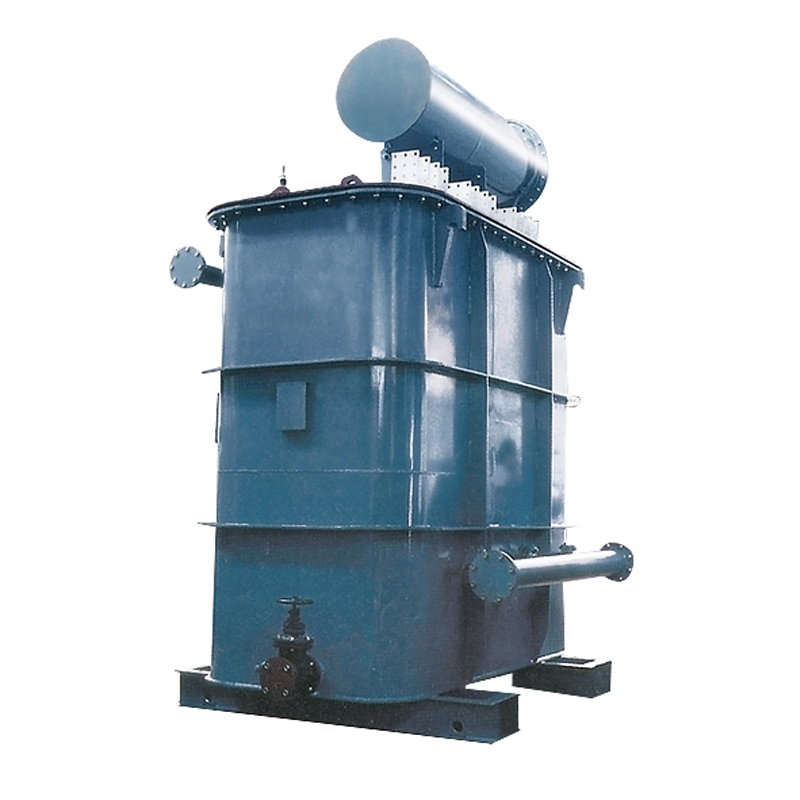

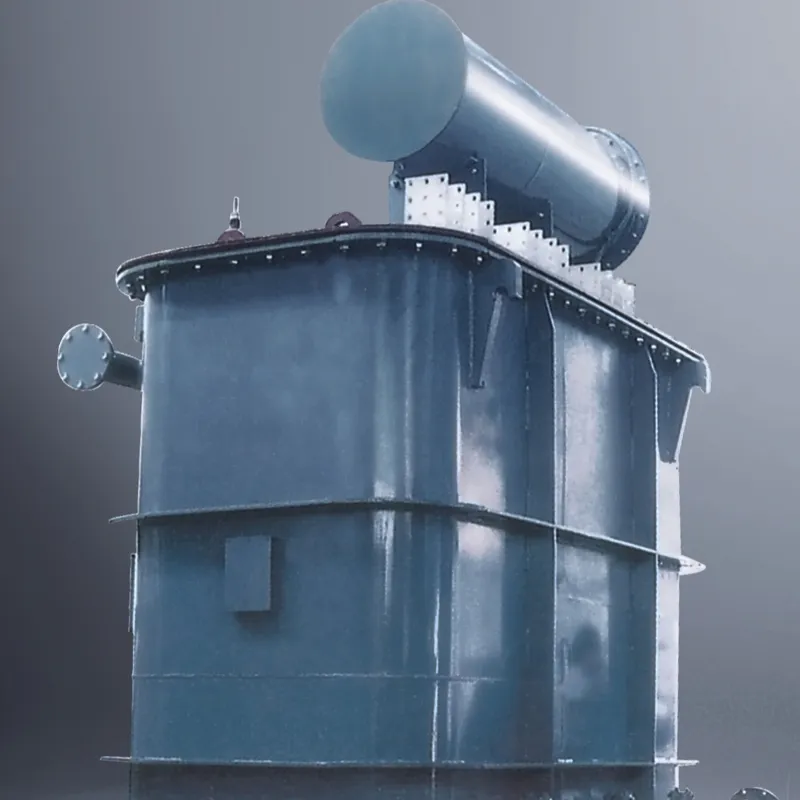

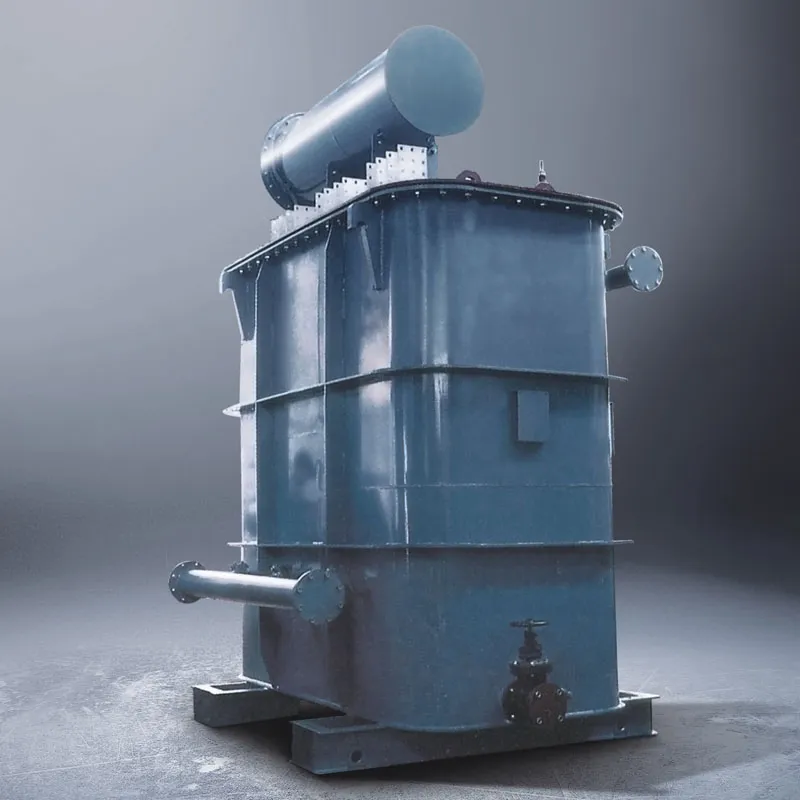

🖼️ Product Showcase
💡 Application & Description
The rectifier transformer for medium frequency electric furnace is a special transformer designed to provide stable rectifier power. Based on the specific load characteristics of medium frequency electric furnaces, this unit features exceptional overload capacity, minimized harmonic current interference, and highly efficient cooling performance to ensure long-term industrial stability.
⚙️ Technical Parameters
| Model |
Rated Capacity (kVA) |
HV (kV) |
LV (kV) |
Connection Symbol |
Body Weight (kg) |
Gross Weight (kg) |
Dimensions (L*W*H m) |
| ZS-500/10 |
500 |
6.0 / 10 / 35 |
0.575 / 1.25 |
D,y11 |
970 |
1800 |
1.63 * 1.13 * 1.62 |
| ZS-1000/10 |
1000 |
6.0 / 10 / 35 |
0.575 / 1.25 |
D,y11 |
1850 |
2450 |
1.95 * 1.63 * 2.01 |
| ZS-2000/10 |
1800 |
6.0 / 10 / 35 |
0.575 / 1.25 |
D,y11 |
2650 |
5200 |
2.80 * 2.12 * 2.27 |
| ZS-3150/10 |
3150 |
6.0 / 10 / 35 |
2x0.575 |
D,y11/D,d0 |
3960 |
7970 |
2.55 * 2.17 * 2.60 |
| ZS-6300/10 |
6300 |
10 / 35 |
2x1.25 |
D,y11/D,d0 |
6650 |
12800 |
2.95 * 2.39 * 2.92 |
Frequently Asked Questions
Q1: What is the primary use of the ZS series rectifier transformer?
A1: It is specifically designed to provide rectified power for medium frequency electric furnaces, optimized for high-demand industrial heating processes.
Q2: How does the cooling system work for this transformer?
A2: This series utilizes an oil-immersed cooling method, which provides superior thermal management for heavy-duty operations.
Q3: Can the low voltage (LV) output be customized?
A3: Yes, while standard values include 0.575kV and 1.25kV, the technical parameters can be decided based on specific customer requirements for furnace loads.
Q4: What are the main technical advantages of this model?
A4: Key advantages include a strong overload capacity, reduced harmonic current for better power quality, and a robust core-type design for high durability.
Q5: Is the transformer compliant with international standards?
A5: Yes, the manufacturing process and product quality comply with the ISO9001-2000 certification standard.
Q6: What connection groups are typically used?
A6: Depending on the model and phase requirements, the connection groups commonly used are D,y11 or D,y11/D,d0 for multi-winding configurations.
