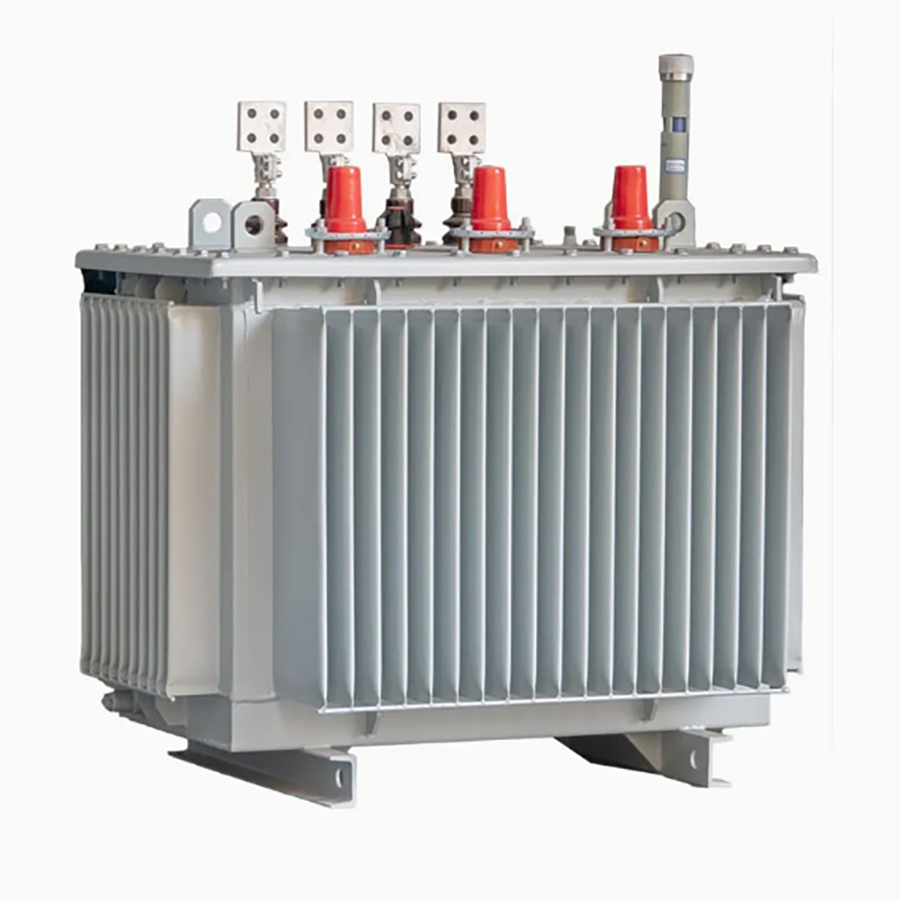

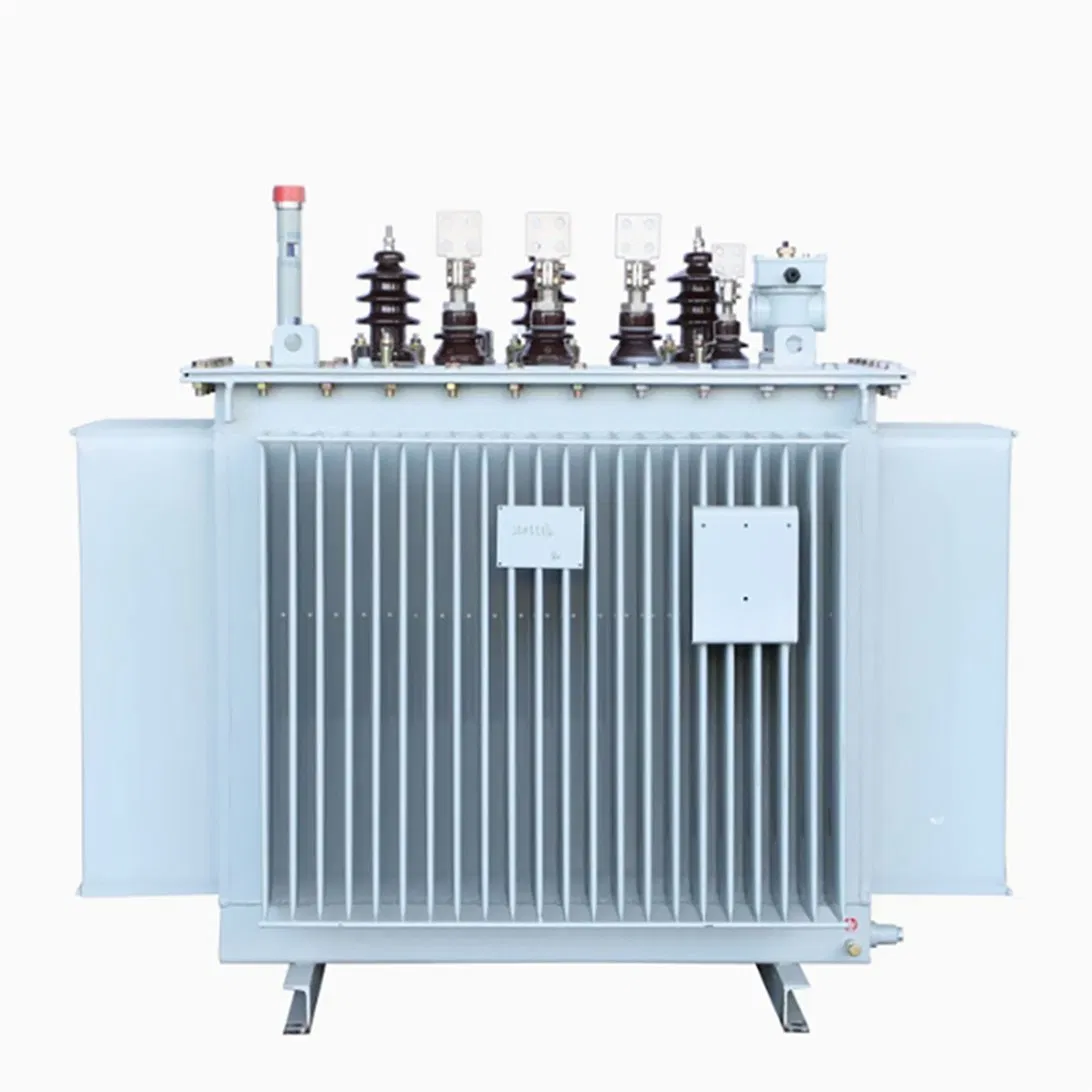

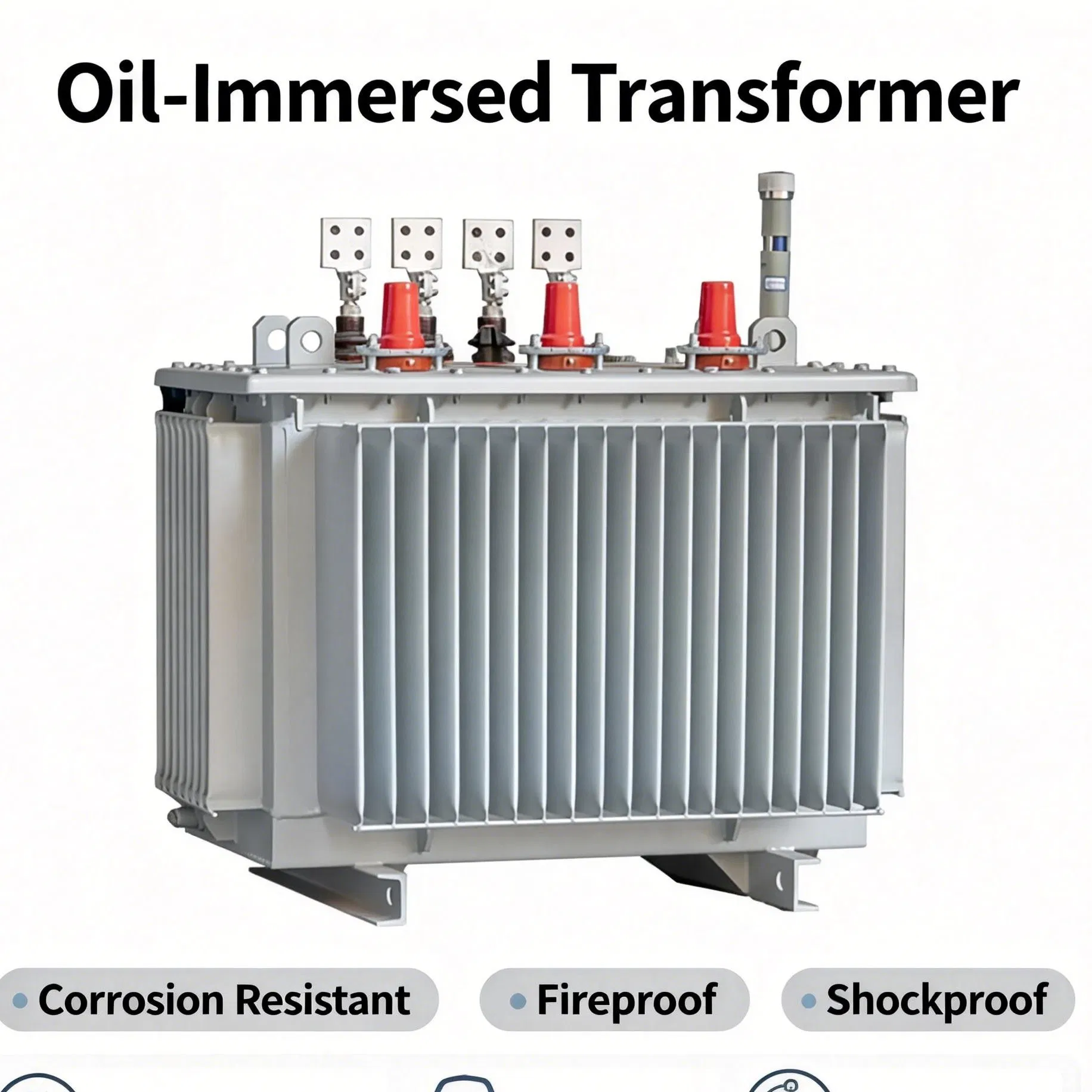

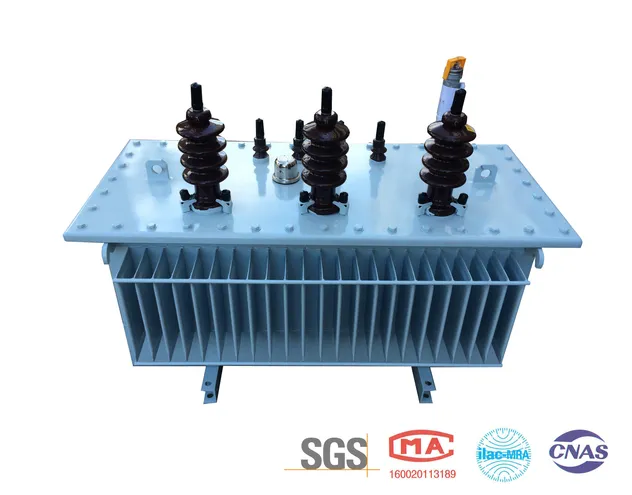

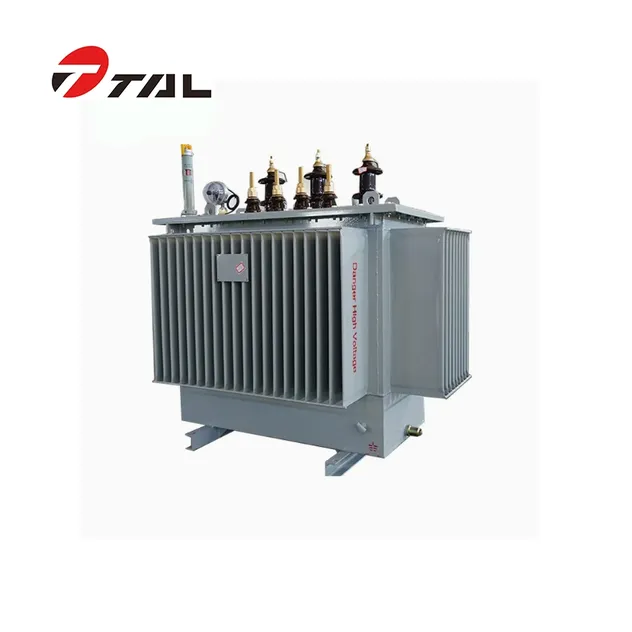

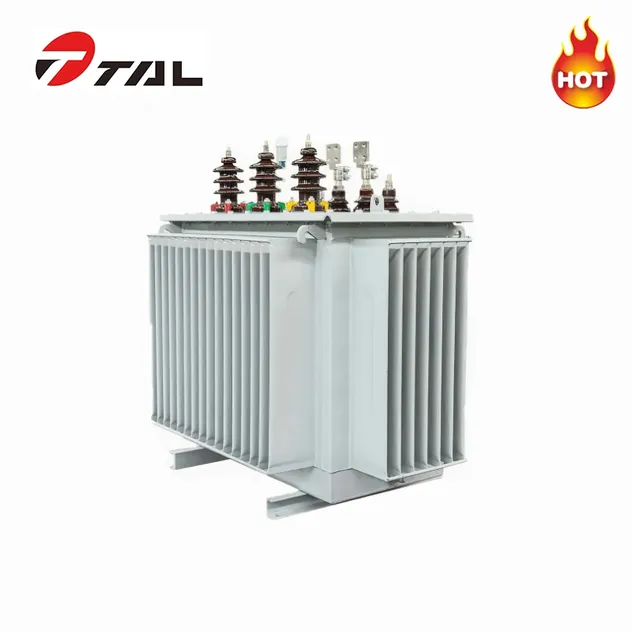

Oil Immersed Distribution Transformer

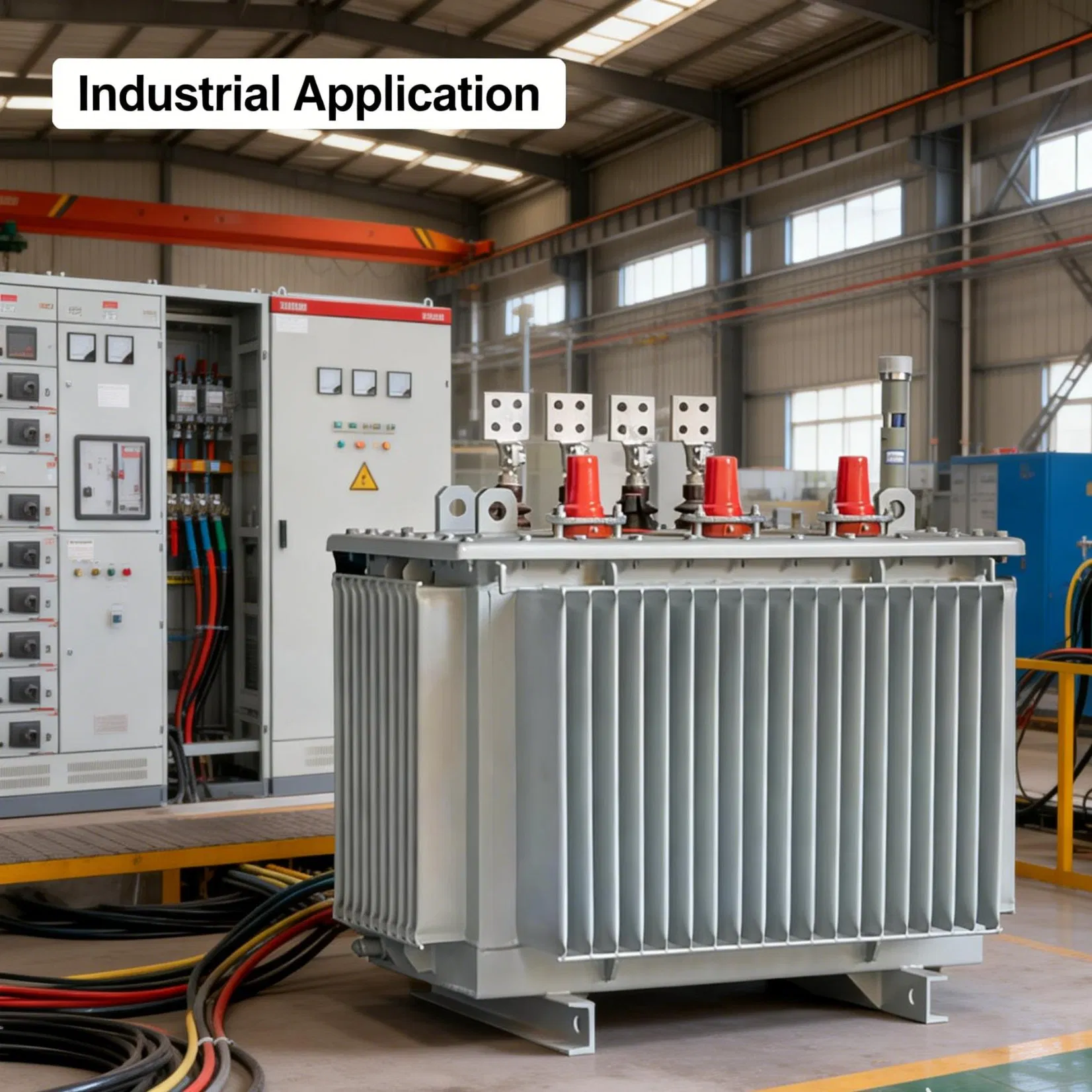

Founded in 1988, with over 35 years of experience in the power transmission and distribution equipment industry. We specialize in a comprehensive range of power transmission and distribution products, including dry-type transformers, oil-immersed transformers, compact substations, switchgear and vacuum circuit breakers. Our products are widely deployed across diverse sectors including power grids, railways, mining operations, shipping, factories, and residential communities.
Key Features
High Permeability Core: Made of grain-oriented cold-rolled silicon steel. The design boosts energy efficiency and load-handling capacity with a continuous magnetic path.

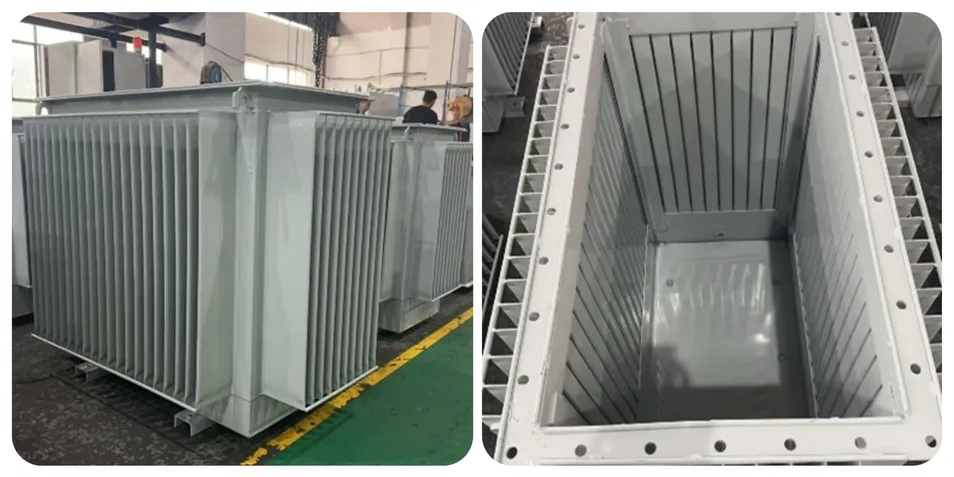

Corrugated Oil Tank: Provides insulation protection, efficient heat dissipation through corrugated sinks, and sturdy mechanical casing for internal components.
(Values can be customized according to local demand!)
| Capacity (kVA) | High Voltage (kV) | Low Voltage (V) | Vector Group | No-load Loss (W) | Load Loss (W) | No-load Current (%) |
|---|---|---|---|---|---|---|
| 50 | 6 / 10 / 11 20 / 33 / 36 or others | 380 / 400 415 / 433 or others | Dyn11 Dyn5 Yyn0 | 104 | 870 | 2.0 |
| 100 | 160 | 1500 | 1.8 | |||
| 250 | 320 | 3050 | 1.4 | |||
| 500 | 544 | 5100 | 1.2 | |||
| 1000 | 920 | 10300 | 1.0 | |||
| 2500 | 2376 | 20700 | 0.4 |
1. Payment: TT, 30% deposit, 70% balance against BL copy.
2. Delivery Time: Usually 15 - 20 days.

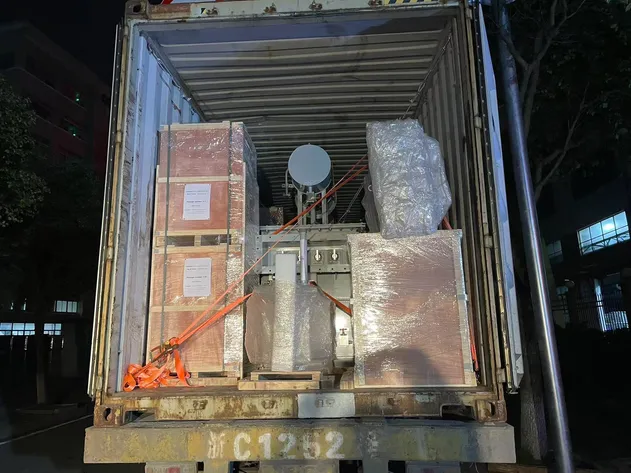

3. Standard Package: Strong plywood cases for export protection.
4. Material: Available in Copper (superior performance) or Aluminum based on requirements.
