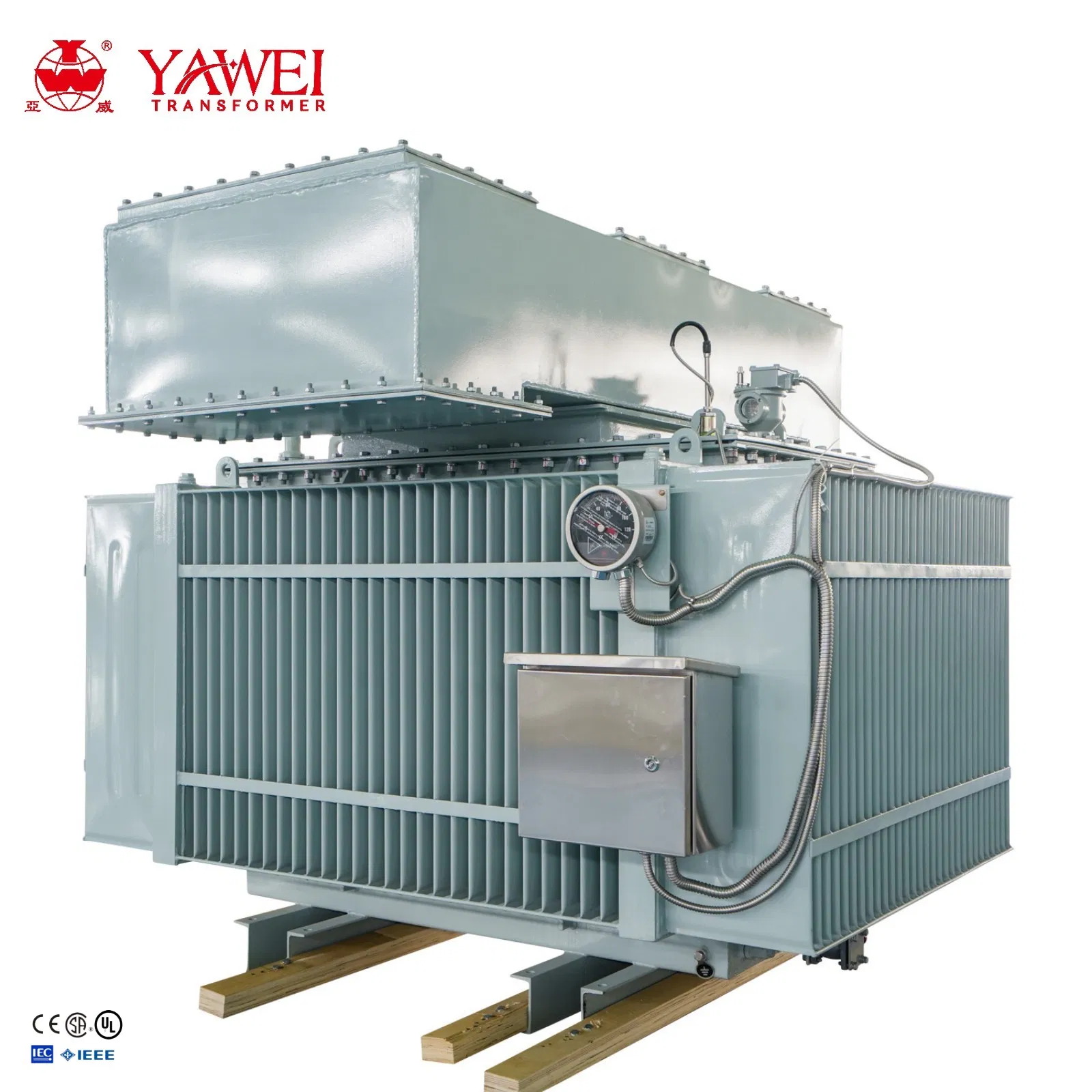

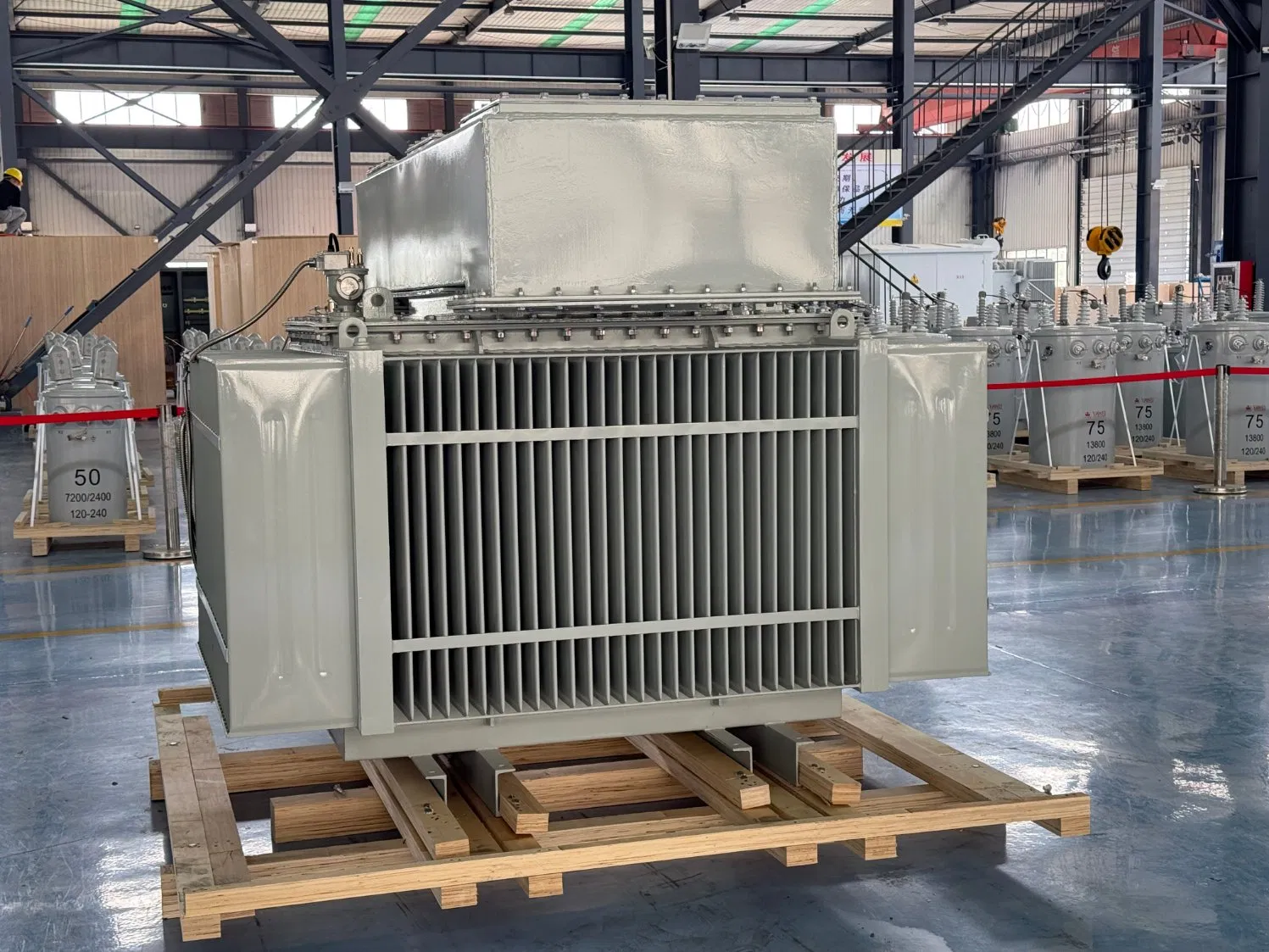

Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers
Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers
Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers
Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers
Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers
1 / 5
Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers
Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers
Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers
Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers
Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers

Yawei 11kv 2000kVA Onan Dyn11 Outdoor Substation Power Transformer Manufacturers

Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

Basic Information
Model NO.
S-M-2000/11
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC, UL CE
Usage
Power Transformer
Frequency
High Frequency
Shape of Core
Ring
Coil Structure
Layer Coil
Rated Primary Voltage
11 kV
Rated Secondary Voltage
0.433 kV
Rated Capacity
2000 kVA or Others
Winding Material
Copper/Aluminum
Connection Symbol
Dyn11
Production Capacity
1200 Sets Per Month
Origin
China
Packaging & Delivery
Package Size
1500.00cm * 1500.00cm * 2000.00cm
Gross Weight
1000.000kg
Transport Package
Wooden Case
Product Description

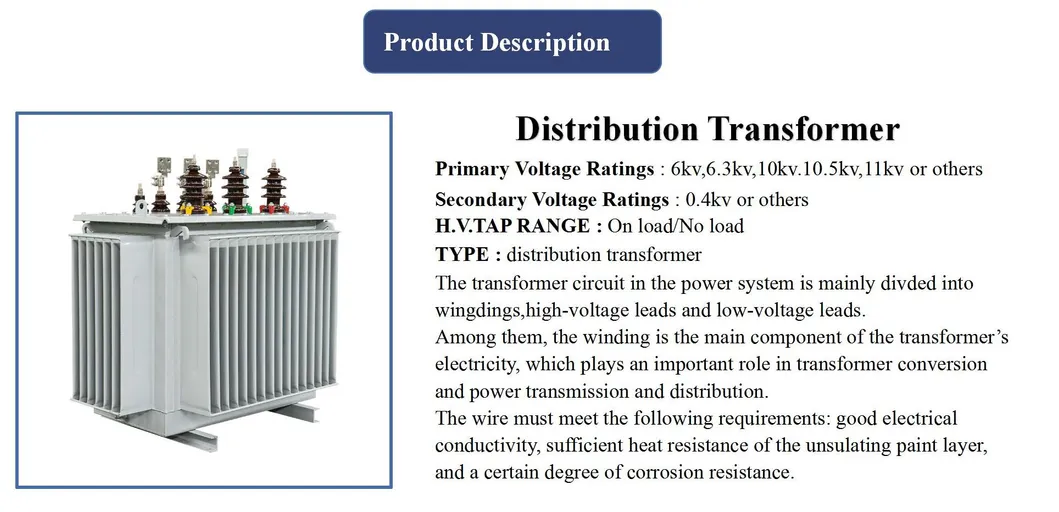

Substation Power Transformer
1
Excellent Heat Dissipation
2
Superior Insulation Performance
3
Long Lifespan & Reliability
4
Adaptability to Harsh Environments
5
Cost-Effectiveness
6
High Capacity & Voltage Suitability
7
Noise Reduction

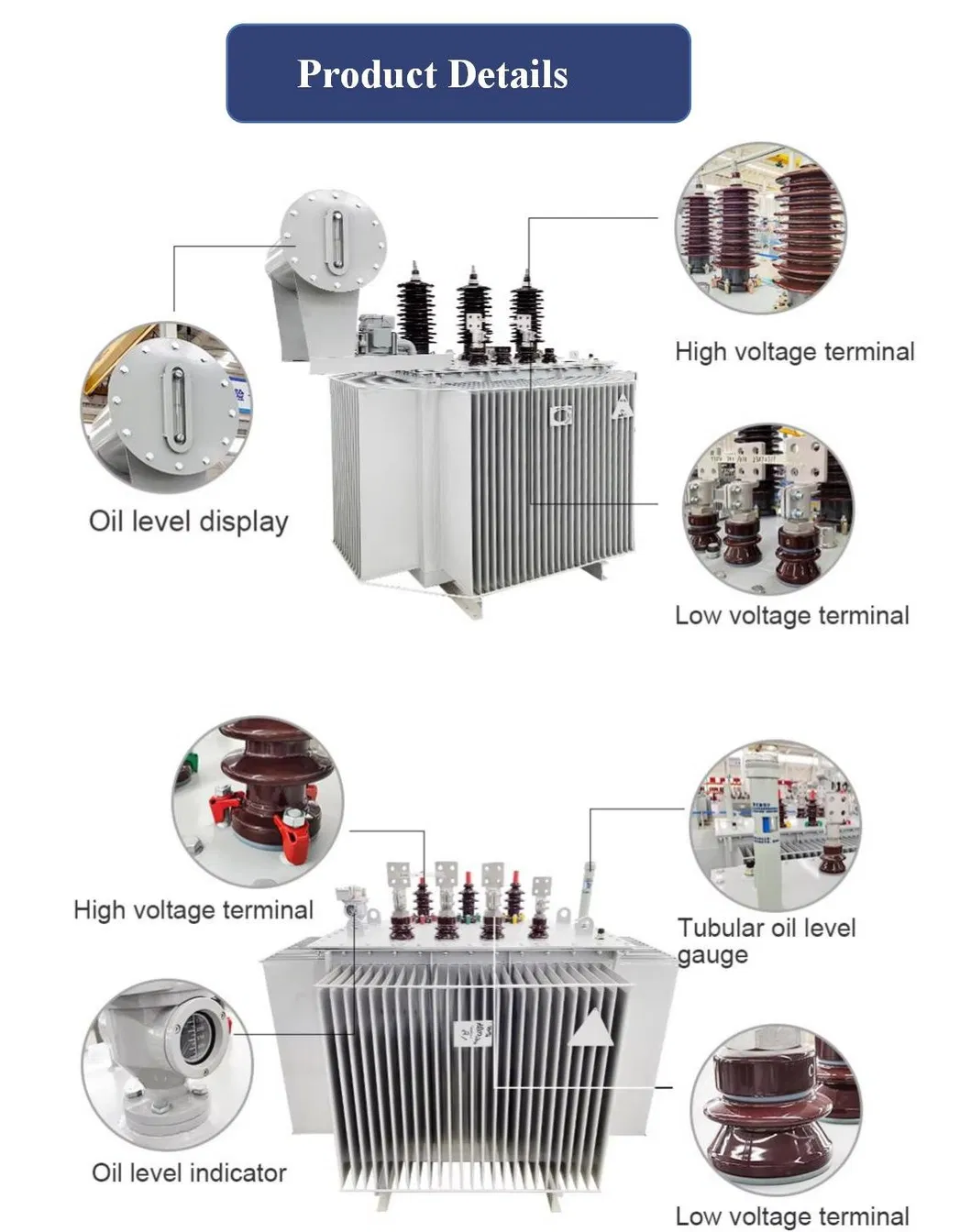

Transformer Details 1
Transformer Details 2
Transformer Details 3

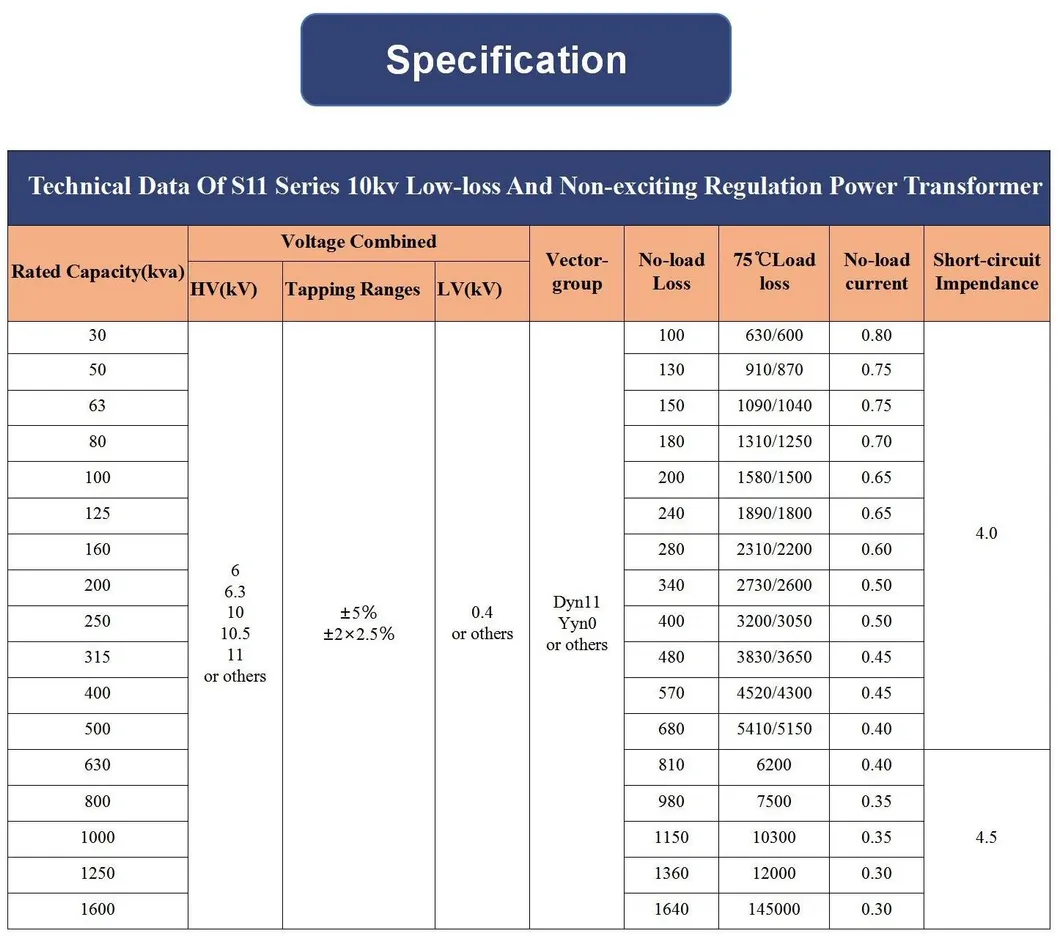

Technical Specifications (S11 Series)
Model Rated Capacity (kVA) Voltage Combined No-load Loss (W) 75ºC Load Loss (W) No-load Current (%)
H.V. (kV) Tap Range L.V. (kV)
S11-303020±2×2.5% / ±5%0.4906602.1
S11-10010020016501.6
S11-40040057047301.0
S11-100010001150113300.7
S11-200020001950191400.6
S11-250025002340222200.5
Production & Quality Control

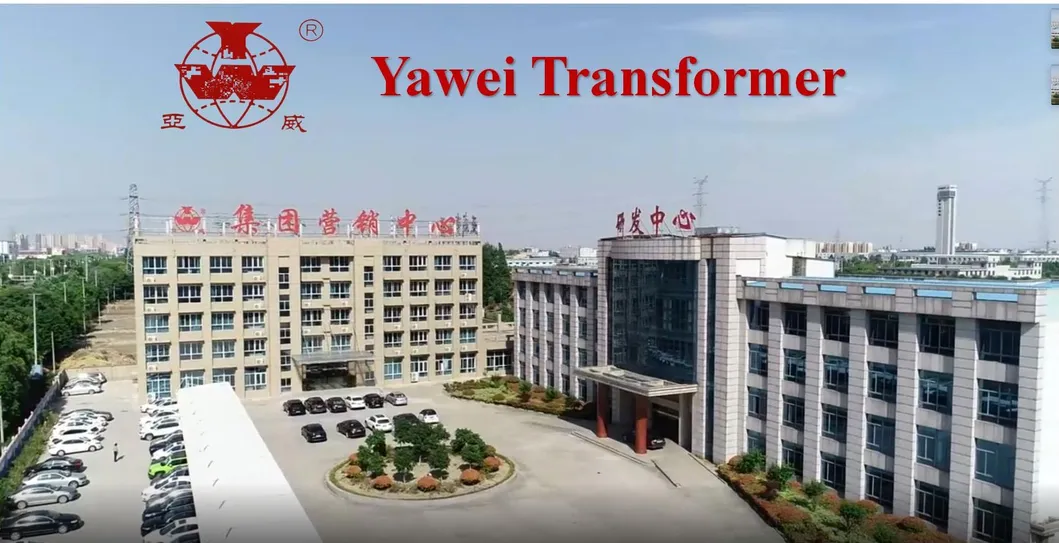

Production 1
Production 2
Production 3
Production 4
Production 5
Production 6
Frequently Asked Questions

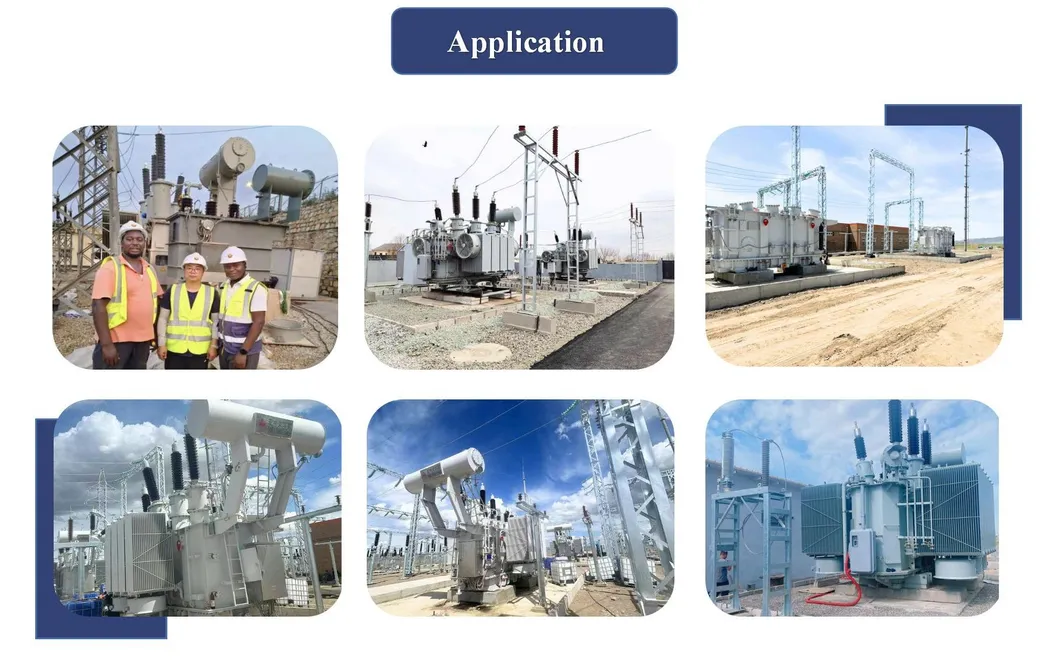

What are the primary applications for this power transformer?
This oil-immersed power transformer is designed for outdoor substations, industrial power distribution, and high-frequency power systems requiring reliable voltage regulation.
What winding materials are used in the construction?
We offer both high-quality Copper and Aluminum winding options depending on the specific requirements for conductivity and cost-effectiveness.
How does the oil-immersed cooling system benefit the unit?
The oil-immersed design provides superior heat dissipation and insulation performance, ensuring a long lifespan even in harsh environmental conditions.
Can the voltage ratios be customized?
Yes, while the standard rated primary voltage is 11kV and secondary is 0.433V, we can adjust specifications as per your design requirements.
What certifications do these transformers hold?
Our transformers are fully certified with ISO9001, CCC, UL, and CE standards, ensuring international quality and safety compliance.
What is the typical lead time for large orders?
With a production capacity of 1200 sets per month, we can accommodate large-scale requirements with efficient delivery schedules.
