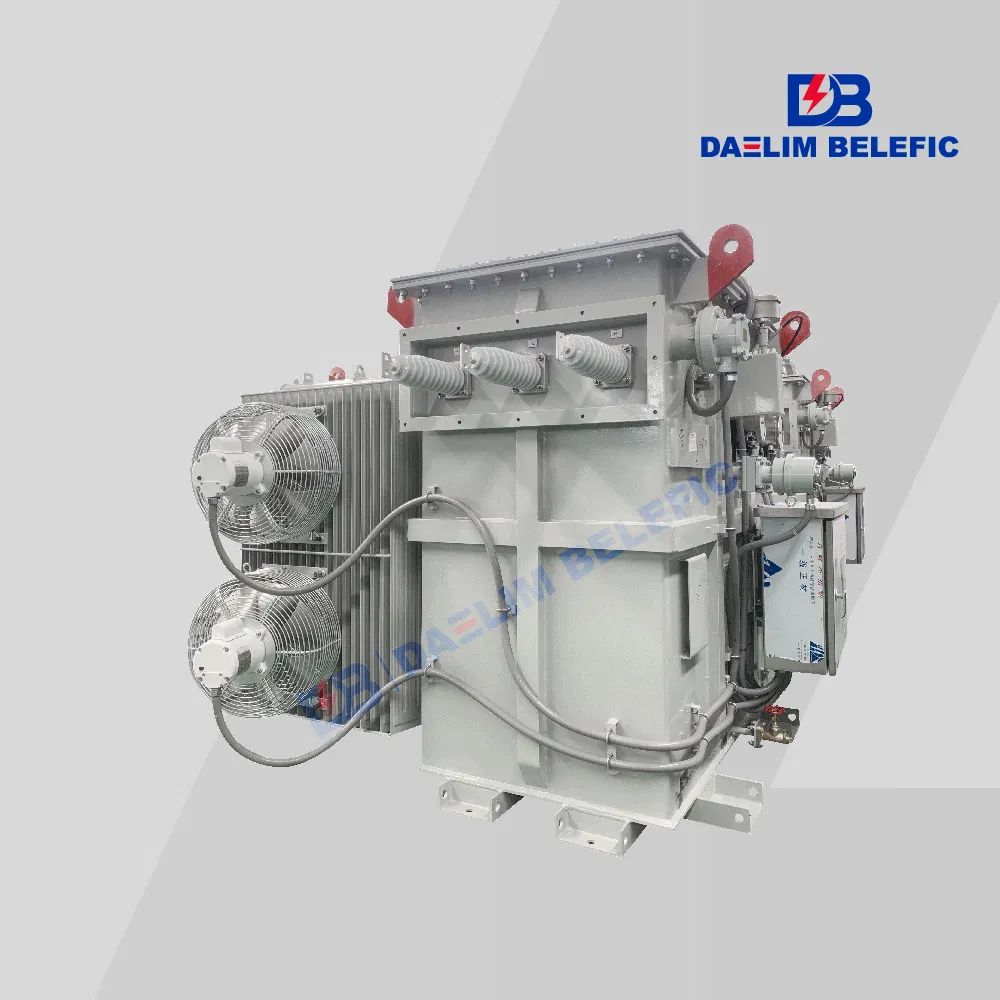

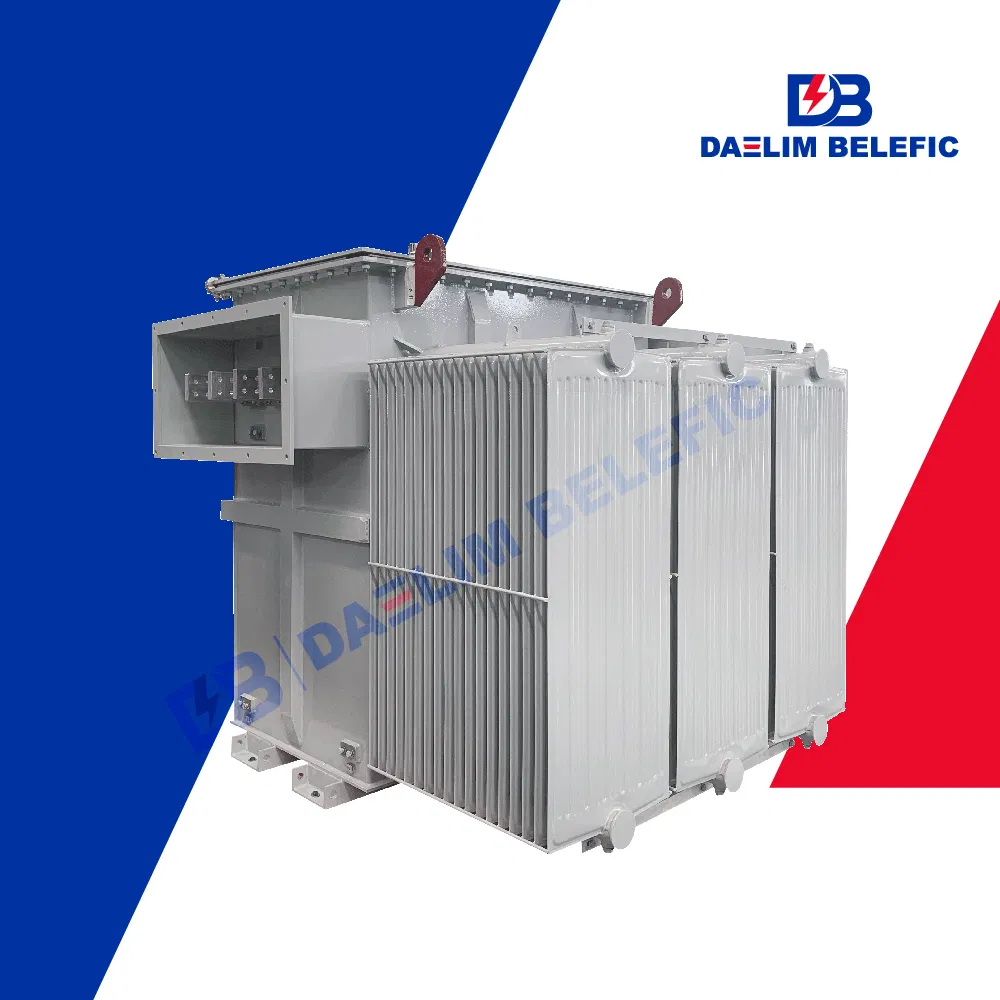

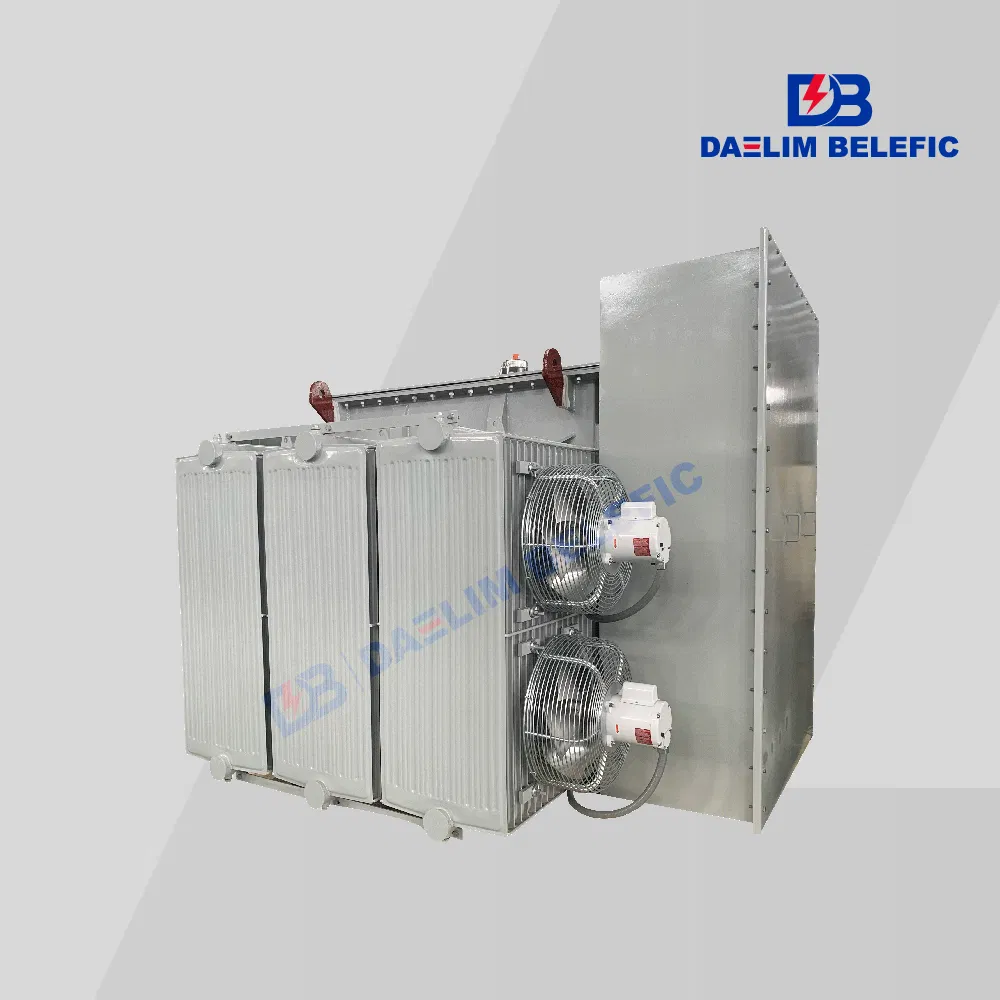

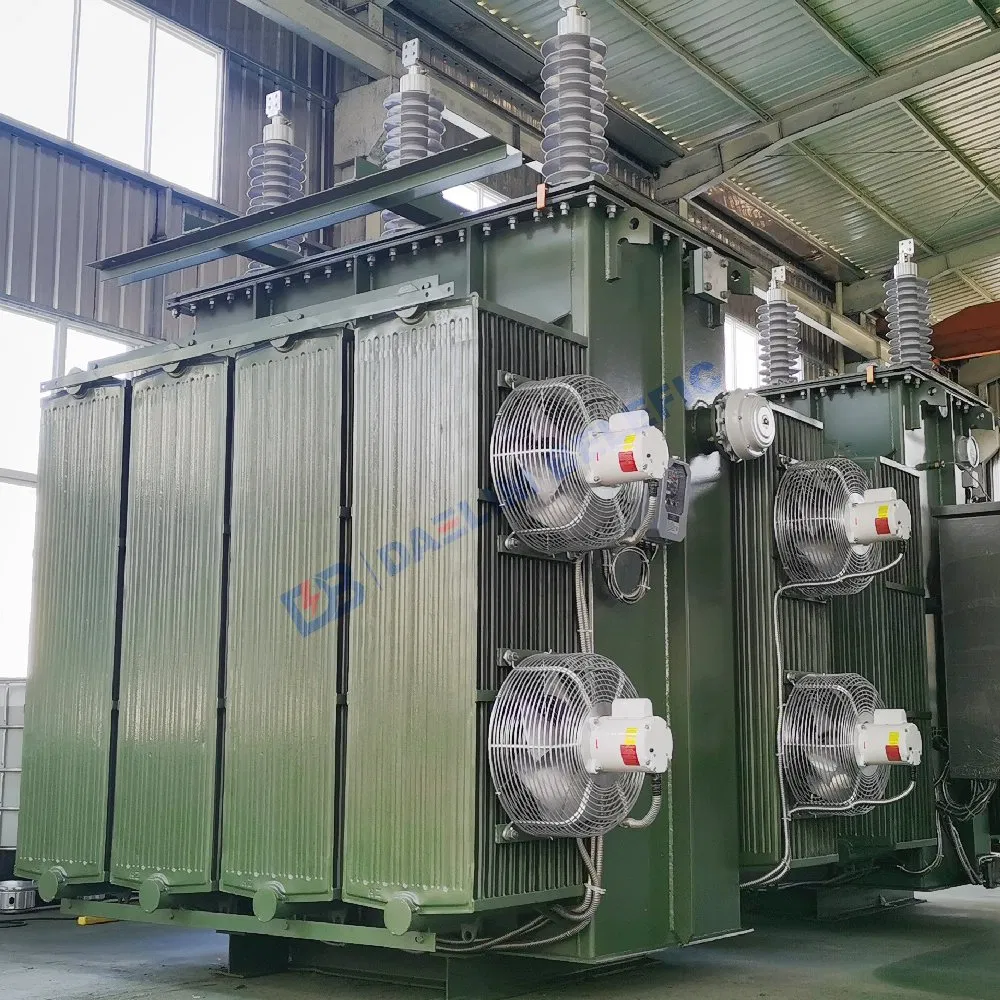

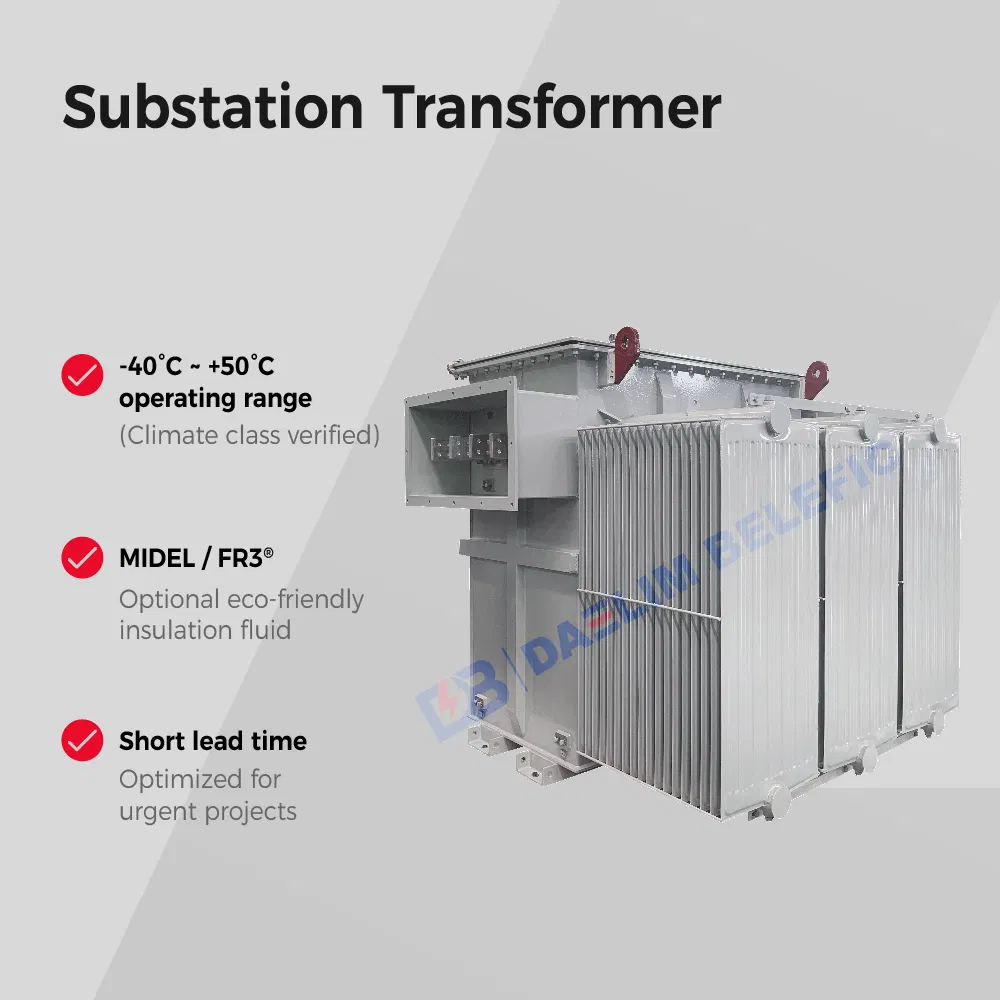

Our three-phase oil-immersed small substation transformer is designed for power distribution systems. Substations are critical components that generate, transmit, and distribute electricity, converting voltage levels between high transmission and low distribution voltages. These units are built to connect separate transmission voltages efficiently and reliably.
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Connection Symbol | Short Circuit Impedance (%) | Weight (KG) |
|---|---|---|---|---|---|
| 800 | 12.0 / 12.47 / 13.2 / 13.8 / 24.94 / 34.5 | 208 / 240 / 480 / 600 / 12000 | Dyn1 / Dyn11 / Ynyn0 | 2.7 - 6.0 | 2050 |
| 1000 | 2.7 - 6.0 | 2450 | |||
| 1600 | 2.7 - 6.0 | 3400 | |||
| 2500 | 2.7 - 6.0 | 4750 | |||
| 5000 | 2.7 - 6.0 | 9500 | |||
| 10000 | 2.7 - 6.0 | 15800 |
With over 15 years of experience in the design, engineering, and manufacturing of high-quality electric products, our team consists of professional experts dedicated to solving customer problems quickly. We maintain a strict quality control system, overseeing every detail from raw material procurement to final testing and delivery.
