Fully compliant with ANSI 57, IEEE C57, and IEC 60076 international power standards.
Efficiency of 2500kva transformer is greater than 99%, meeting DOE2016 energy regulations.
IP54 protection, dustproof and moisture-proof. Designed for a service life of over 25 years.
Optional FR3 vegetable oil usage, offering a biodegradation rate of over 95%.
| Rated Power (KVA) | H.V (KV) | L.V (V) | Loss (W) | Dimension (CM) | Weight (KG) | ||||
|---|---|---|---|---|---|---|---|---|---|
| No-load | On-load | W | D | H | Oil | Total | |||
| 75KVA | 34.5KV 24.94KV 13.8KV | 240V 480V 277V | 180 | 1250 | 1390 | 910 | 1430 | 120 | 645 |
| 150KVA | 280 | 2200 | 1510 | 980 | 1530 | 201 | 989 | ||
| 300KVA | 480 | 3650 | 1660 | 1080 | 1680 | 260 | 1415 | ||
| 500KVA | 680 | 5100 | 1810 | 1160 | 1790 | 325 | 1905 | ||
| 1000KVA | 13.8KV To 34.5KV | Up to 600V | 1150 | 10300 | 1651 | 1549 | 1854 | 650 | 3235 |
| 2000KVA | 2160 | 20645 | 2380 | 1600 | 2220 | 950 | 6430 | ||
| 2500KVA | 2680 | 27786 | 2480 | 1650 | 2330 | 1020 | 8865 | ||

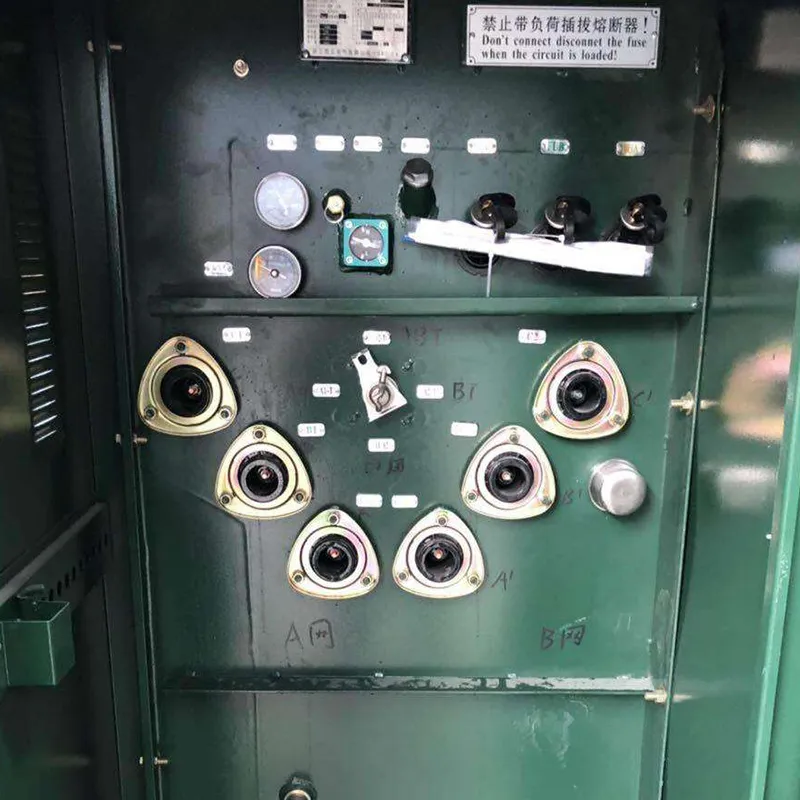

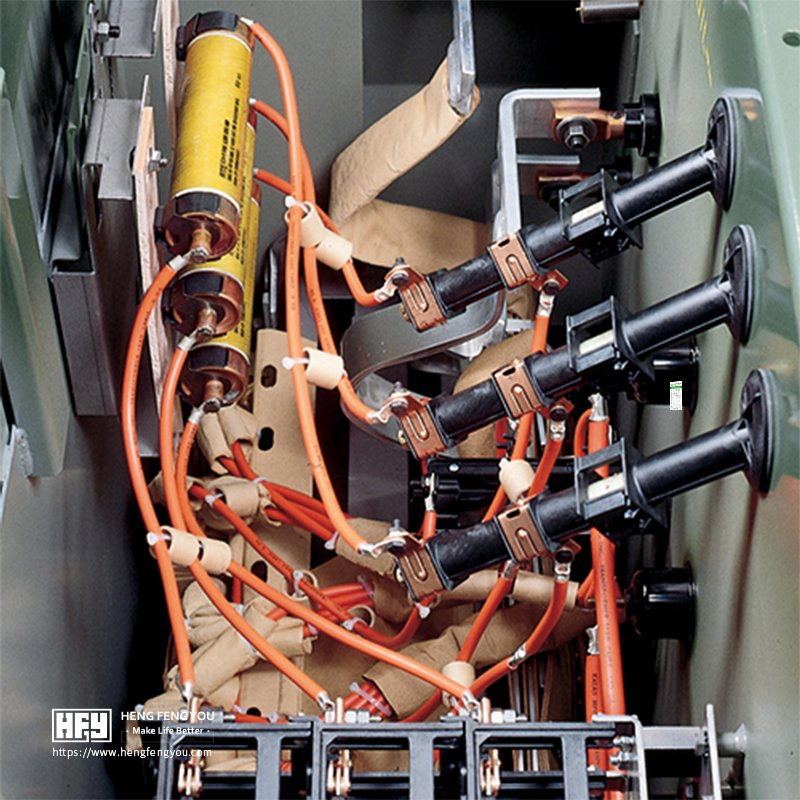

Bushings: 200A bushing wells (15, 25, 35kV) and 600A integral bushings (dead-front). Electrical-grade porcelain bushings available for live-front applications.

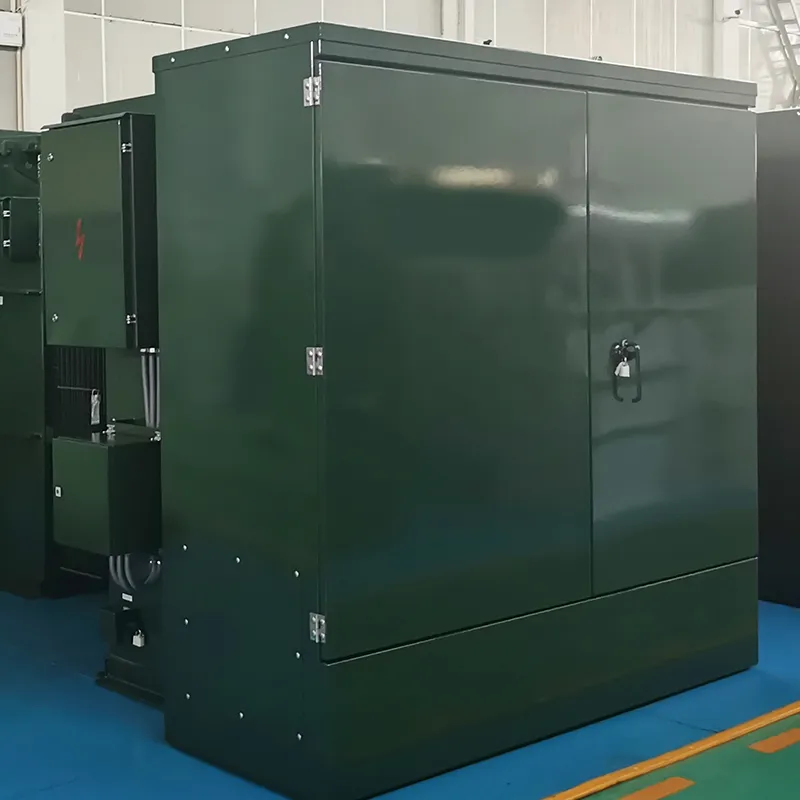

Tank Cabinet: Bolted covers for access, three-point latching doors for security, and removable sills for easy installation. Includes stainless steel cabinet hinges.
Valves & Plugs: Automatic pressure relief valves, combination drain valves with sampling devices (750-10,000 kVA), and upper filling plugs.
Yes. Our electrical products can be customized. We have dedicated design and engineering teams to customize products according to specific drawings or technical requirements.
The MOQ is one set.
Delivery time depends on the order quantity, but it normally takes approximately 15-20 days.
We utilize a QC team complying with TQM standards. Every step of production follows strict regulations. Products are fully assembled and tested before packing, and photos/videos can be provided upon request.
We offer a one-year warranty from the sale date. If accessory issues occur, we provide free replacements based on provided photos of the damage. Technical support is always available.
Our products are designed and manufactured to meet ANSI C57, IEEE, DOE, CSA, and IEC60076 standards, ensuring global compatibility and reliability.
