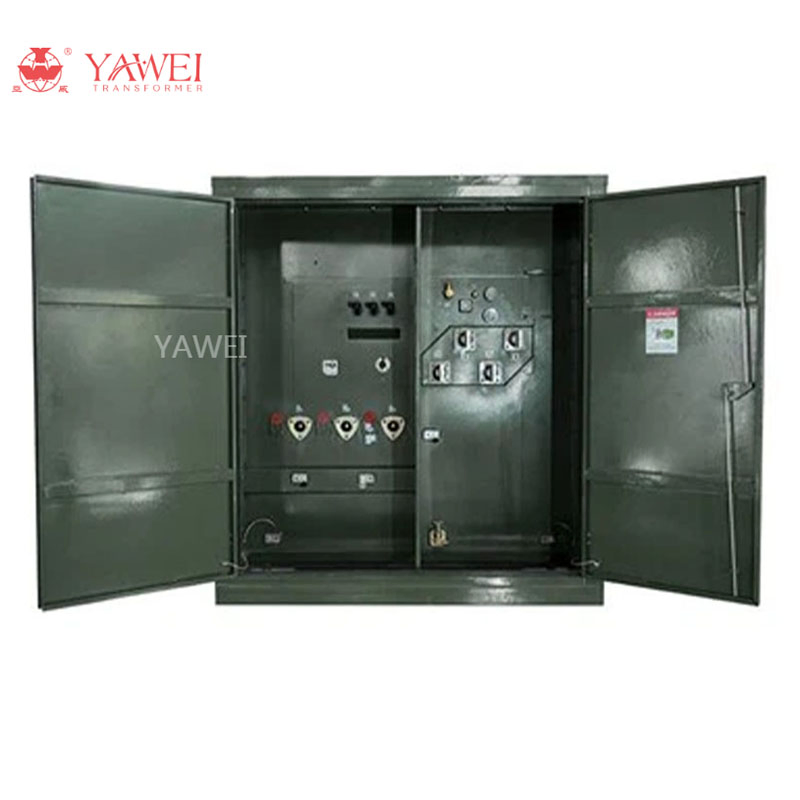

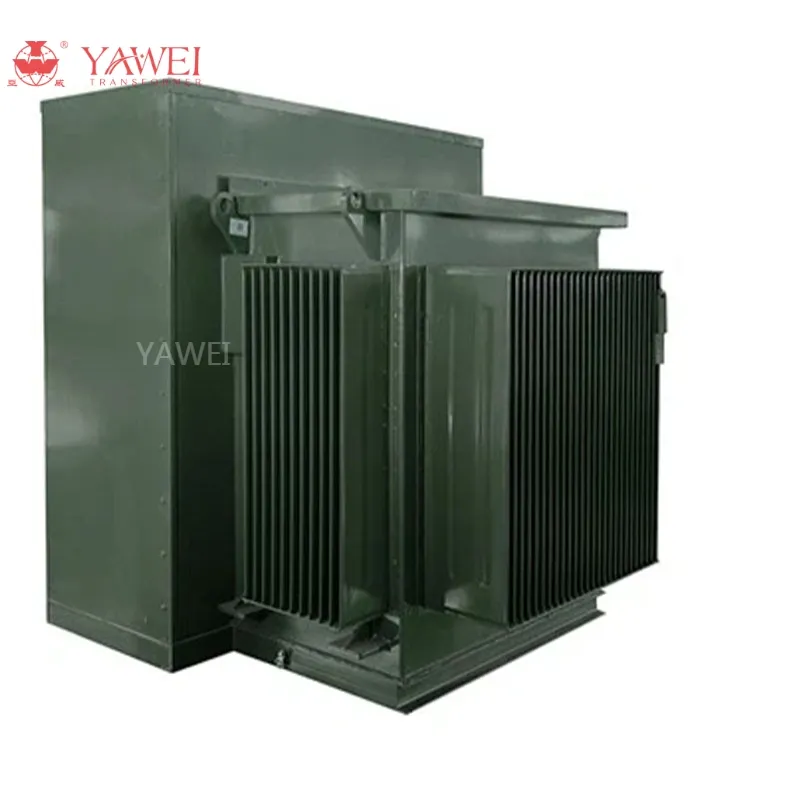

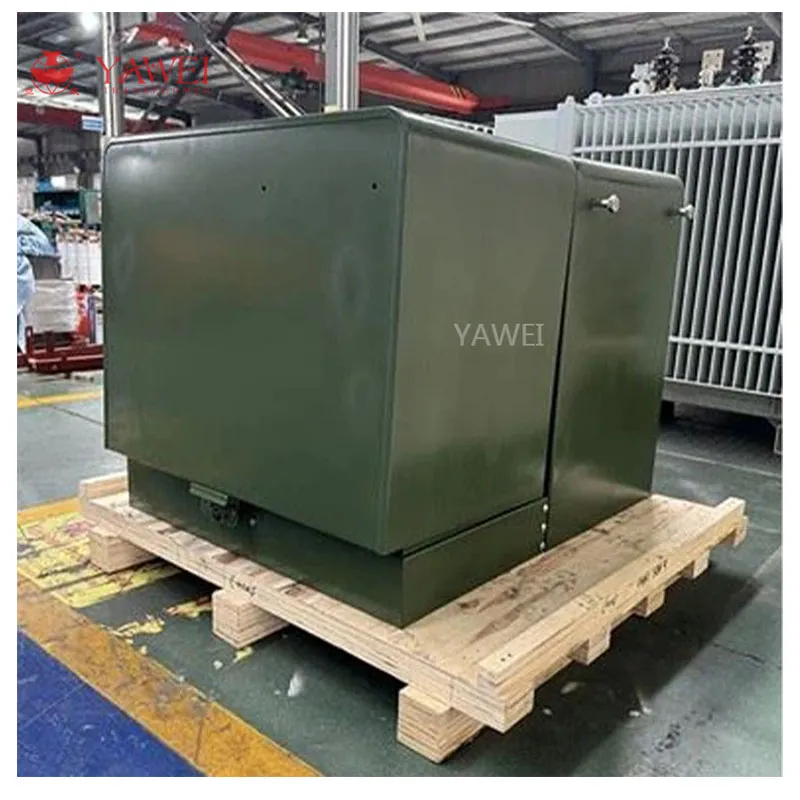

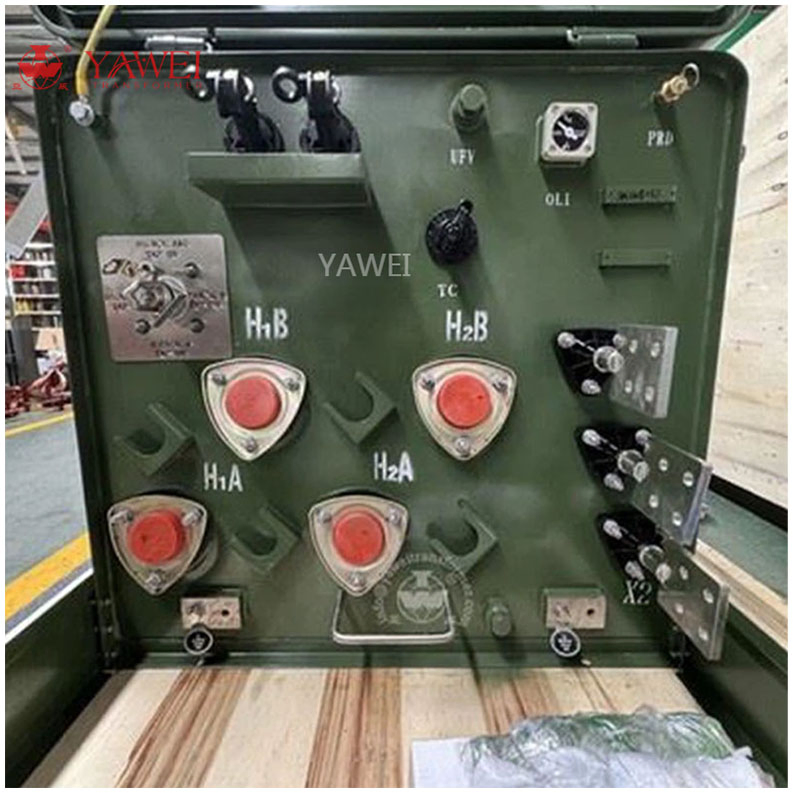

Full-Specification Customization Factory Outlet Pad Mounted Transformer
Full-Specification Customization Factory Outlet Pad Mounted Transformer
Full-Specification Customization Factory Outlet Pad Mounted Transformer
Full-Specification Customization Factory Outlet Pad Mounted Transformer
Full-Specification Customization Factory Outlet Pad Mounted Transformer
1 / 5
Full-Specification Customization Factory Outlet Pad Mounted Transformer
Full-Specification Customization Factory Outlet Pad Mounted Transformer
Full-Specification Customization Factory Outlet Pad Mounted Transformer
Full-Specification Customization Factory Outlet Pad Mounted Transformer
Full-Specification Customization Factory Outlet Pad Mounted Transformer

Full-Specification Customization Factory Outlet Pad Mounted Transformer

Customization: Available
Application: Power, Electronic, Instrument, Lighting
Phase: Three
Send Inquiry

Product Description

📊

Basic Information

Model NO.Pad mounted transformer
CoreCore-type Transformer
Cooling MethodOnan/Onaf
CertificationISO9001-2000, ISO9001
UsagePad Mounted Transformer
FrequencyIntermediate Frequency
Warranty2 Years
Coil Number2
Winding MaterialAluminum/Copper
Production Capacity500 Set/Sets Per Month
🔌

Product Introduction

Transformer Overview

High Efficiency & Low Loss

Utilizing high-quality silicon steel sheets and advanced winding technologies to reduce no-load and load losses. Efficiency can reach over 99%.

Grid Adaptation

Equipped with wide voltage regulation (OLTC) and harmonic suppression (Dyn11 connection) for seamless new energy integration.

Customization

Flexible capacity (10kVA to 1000MVA) and specialized protection (salt spray prevention, explosion-proof) based on global requirements.

⚙️

Technical Specifications

TypePower Transformer
Insulation ClassA-Class
Lightning ImpulseAs Per IEC Standard
Core MaterialSilicon Steel
🏢

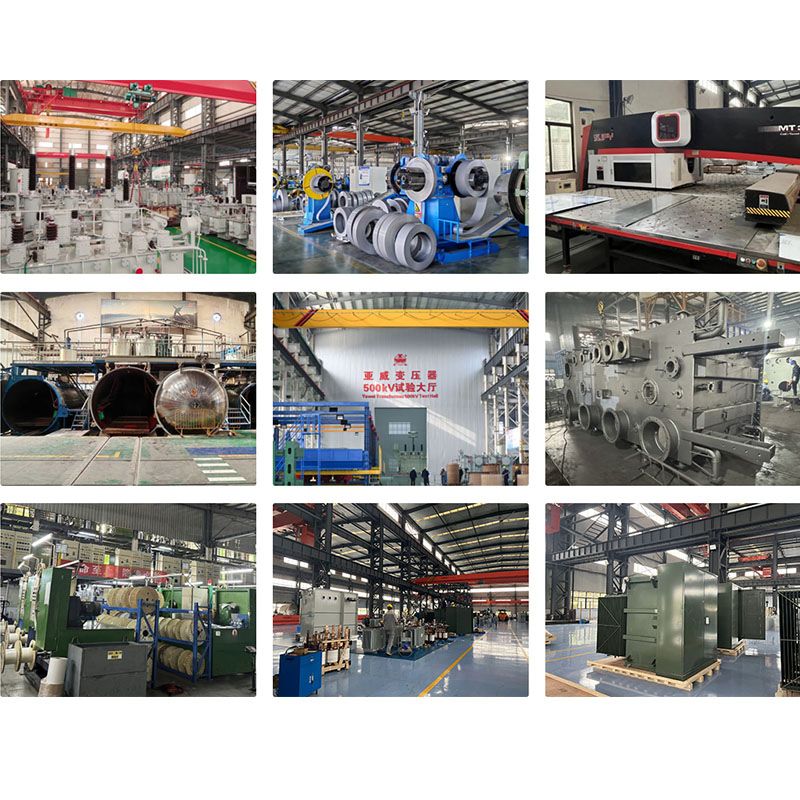

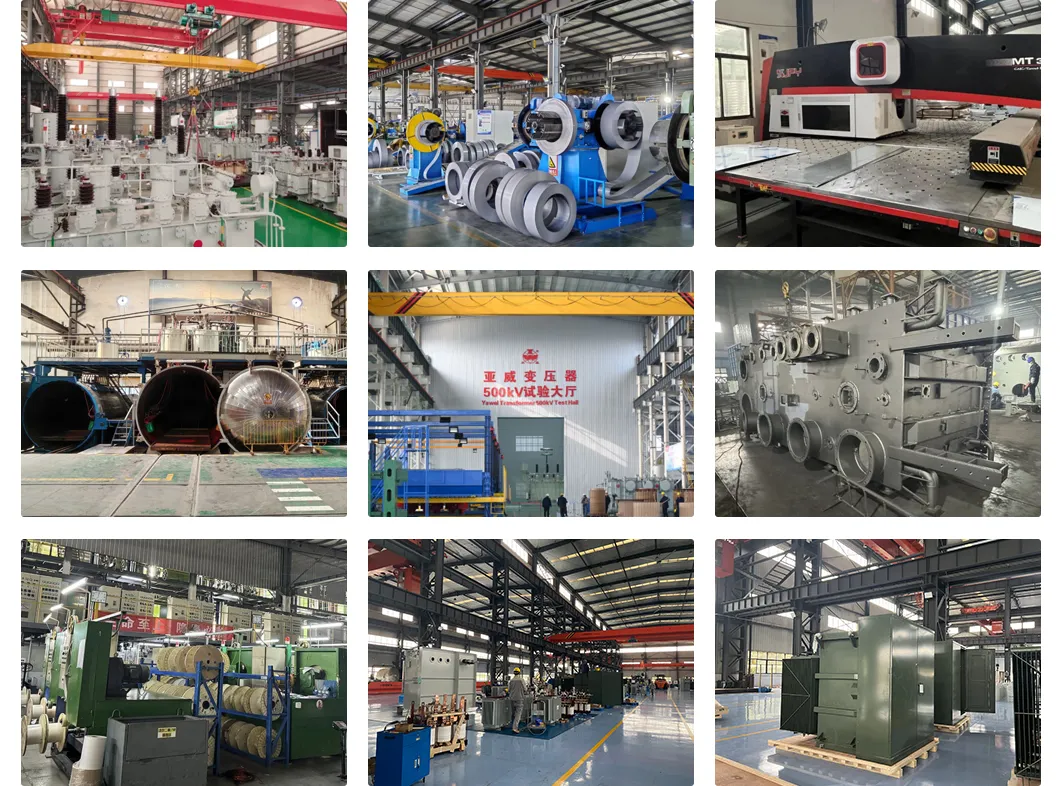

Manufacturing Capabilities

Our facility possesses strong manufacturing capabilities and an efficient production team. With over 1,800 employees and 150+ engineers, we offer a wide variety of transformers, including dry-type below 110KV, oil-immersed, and new energy storage transformers. Our product designs comply with international standards including IEEE, ANSI, DOE, CSA, UL, and IEC.
🏆

Advantages & Certificates

🌐

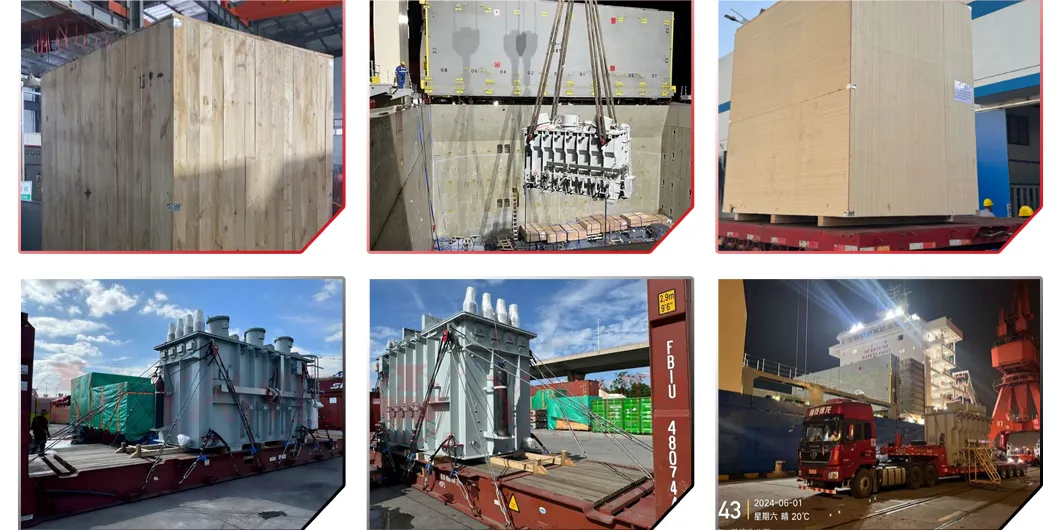

Exhibition & Logistics

We emphasize integrity and efficiency in packaging. Using sturdy wooden crates with shock-absorbing designs, we ensure products arrive safely. Strategic partnerships with global logistics providers allow for real-time tracking and optimized delivery routes.

Frequently Asked Questions

What is a pad mounted transformer?
A pad mounted transformer is an electrical transformer mounted on a concrete pad and enclosed in a weatherproof metal box, typically used for medium-voltage underground power distribution.
How efficient are these power transformers?
Our transformers feature high efficiencies ranging from 90% to over 99%, depending on the specific design and load conditions.
Can these transformers be used in outdoor environments?
Yes, they are designed with weather-resistant materials and specialized coatings to protect against environmental elements like moisture and dust.
What is the typical lifespan of a transformer?
A well-maintained transformer can last between 30 to 50 years, depending on the quality of maintenance and environmental factors.
What cooling systems are available?
Common cooling systems include natural air, forced air, natural oil, forced oil, and water-cooled systems (ONAN/ONAF).
What materials are used for the core and windings?
The core is typically made of high-grade silicon steel to reduce energy loss, while windings are made of high-conductivity copper or aluminum.
