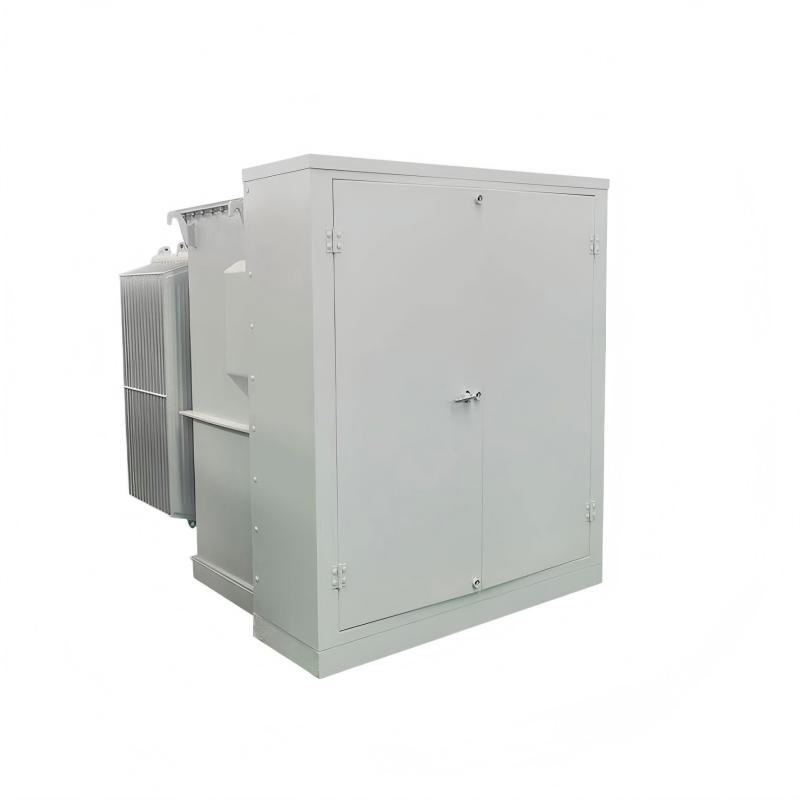

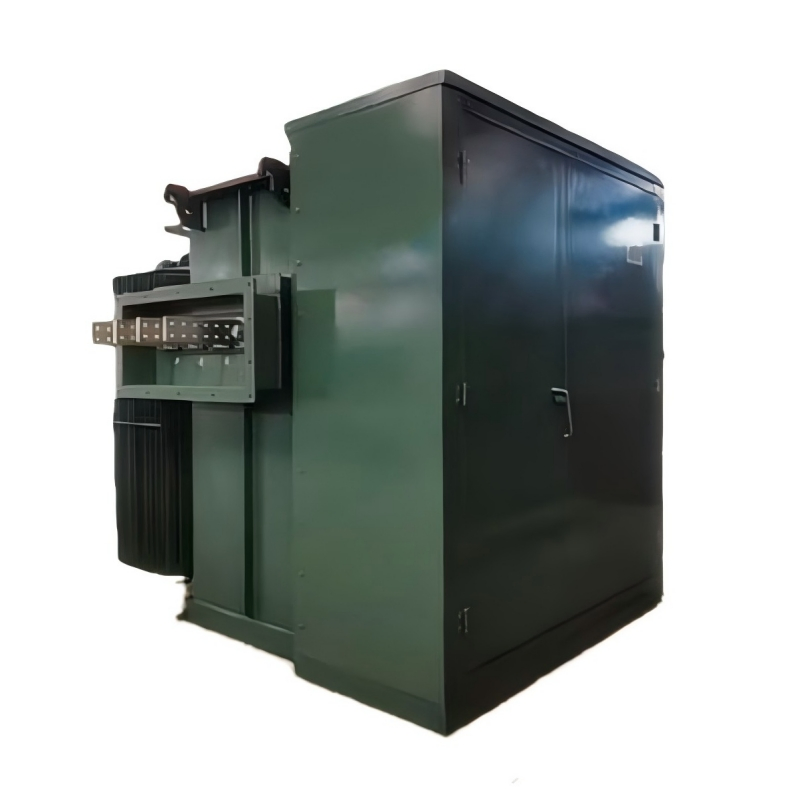

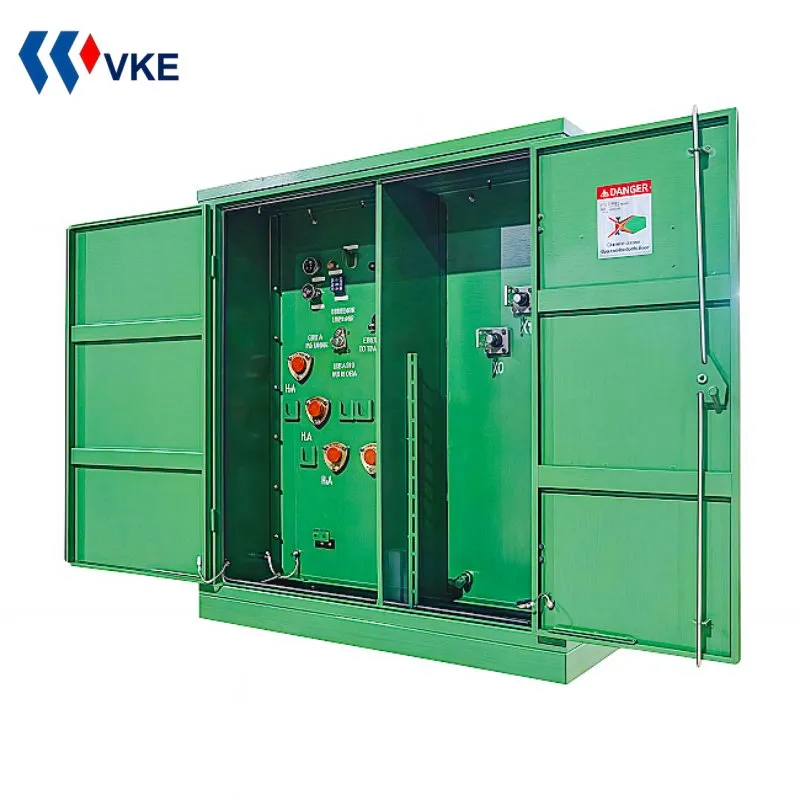

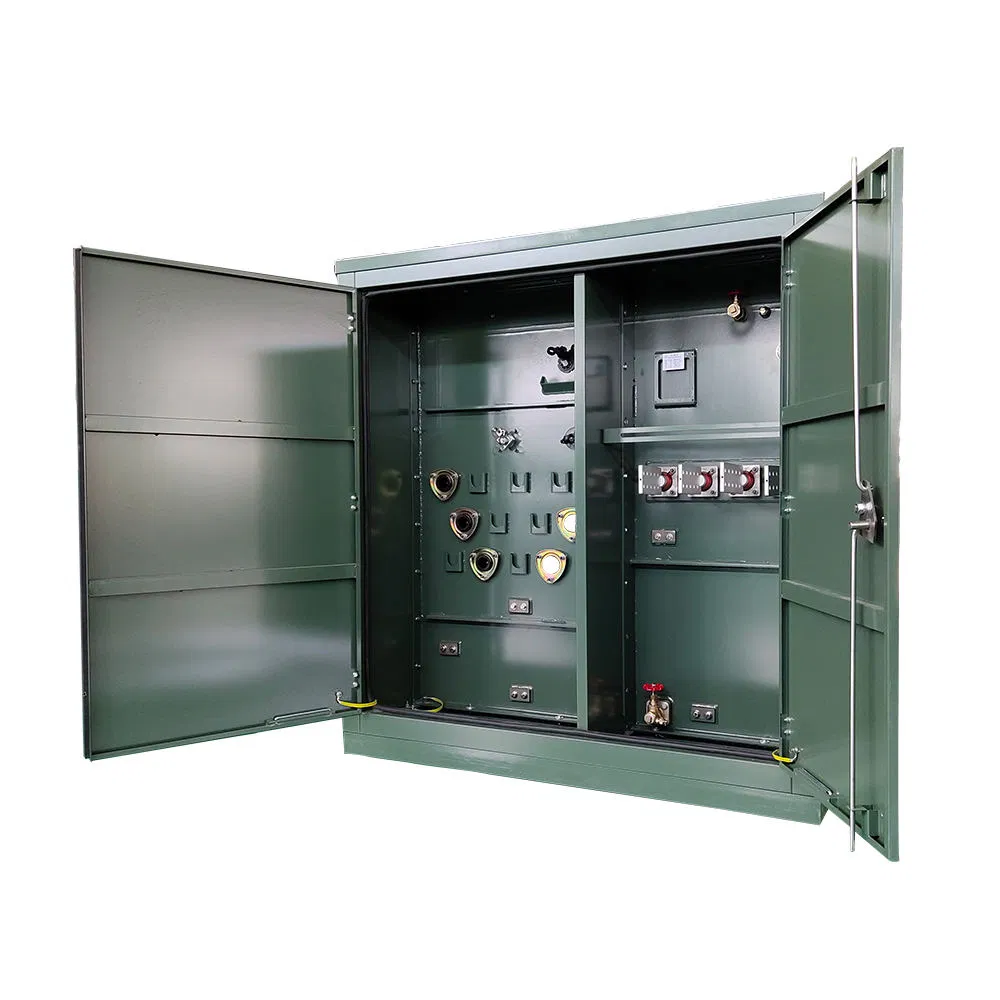

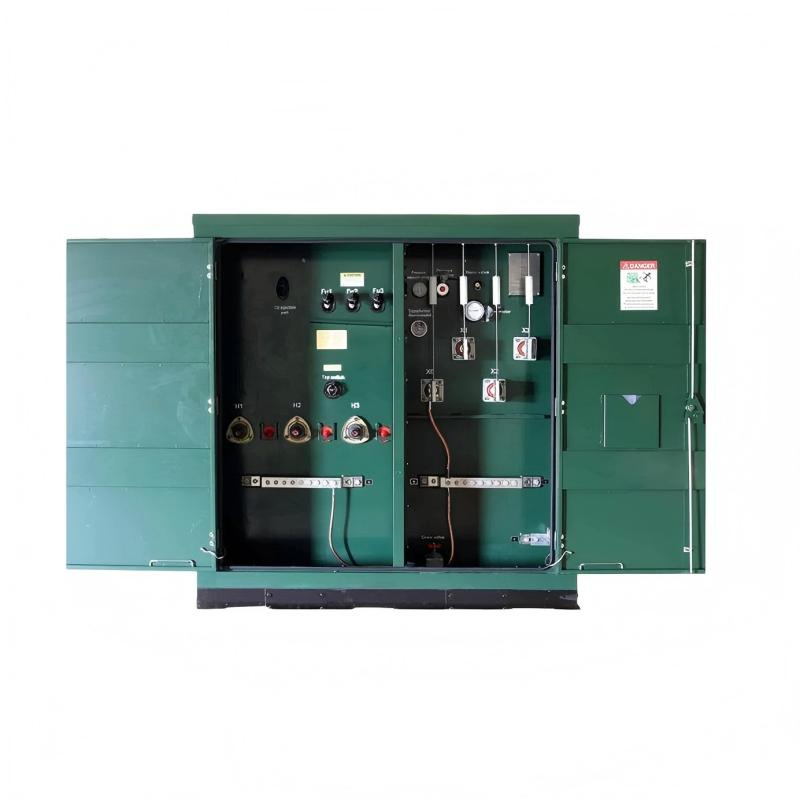

6-35kV Three Phase Pad Mounted Transformer
Pad mounted transformers are suitable for commercial centers, industrial parks, residential areas, streets, airports, docks, and densely populated urban areas, as well as deep load centers.
They are used for ring network and bidirectional power supply, and can achieve power transmission in one installation. It features full insulation, a fully sealed structure, maintenance-free operation, and easy installation.
| Rated capacity (kVA) | Voltage combination | Connection group | No-load loss(W) | Load loss (75℃ W) | Short-circuit impedance % | ||
|---|---|---|---|---|---|---|---|
| H.V.(kV) | Tapping | L.V.(V) | |||||
| 30-100 | 6 / 6.3 / 10 / 10.5 / 11 / 12.47 / 13.2 | ±2x2.5 / ±5 | 120 / 220 / 380 / 400 / 440 / 480 / 600 | Dyn11 | 100-200 | 630-1580 | 4.0 |
| 125-315 | 240-480 | 1890-3830 | 4.0 | ||||
| 400-630 | 570-810 | 4520-6200 | 4.0 / 4.5 | ||||
| 800-1600 | 980-1640 | 7500-14500 | 4.5 | ||||

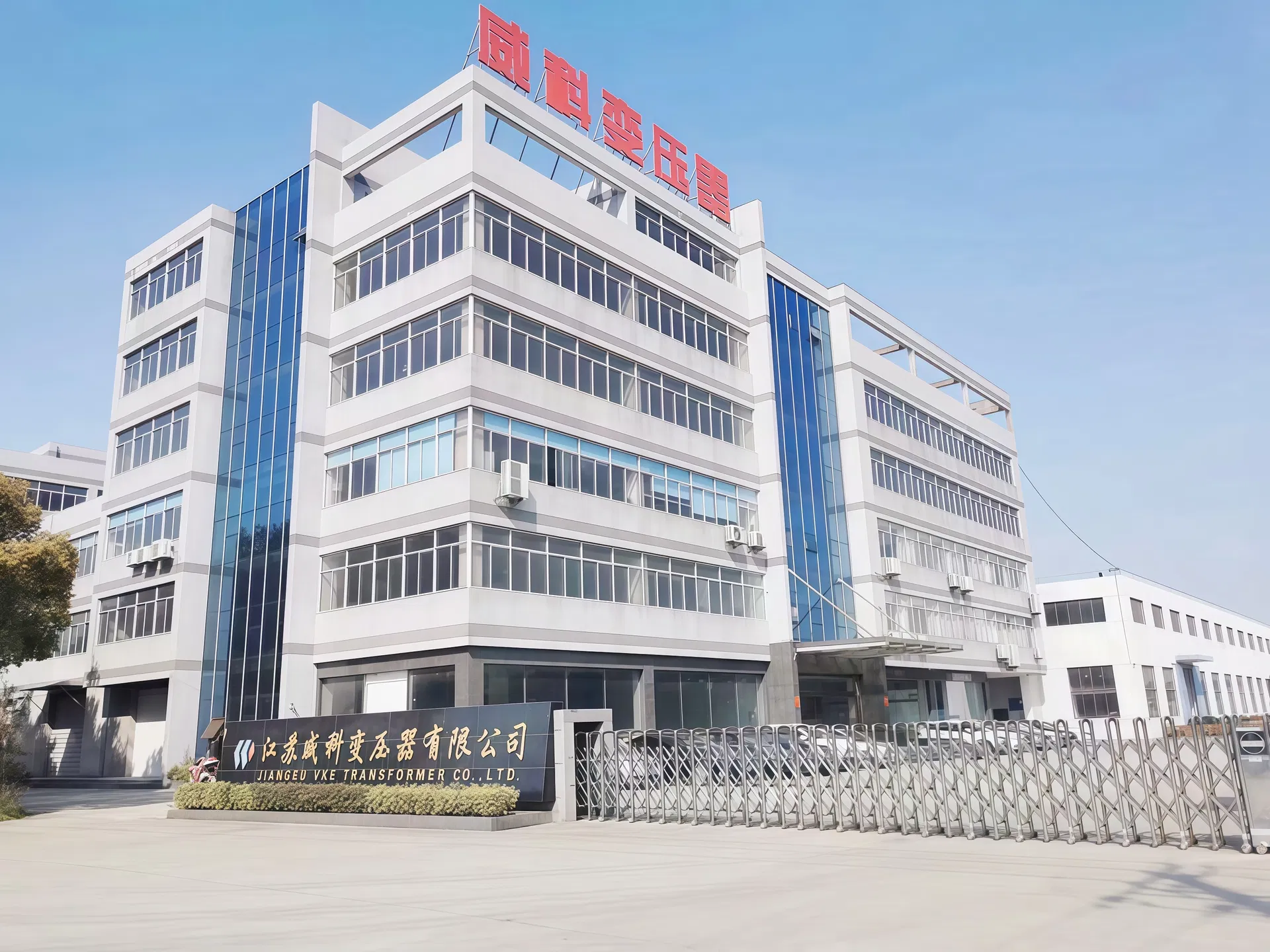

Established in 2003 with a focus on high-quality distribution transformers, the manufacturing facility spans over 30,000 m² with modern workshops. Key products include:
Utilizing advanced production lines, including world-leading core cutting and Epoxy Resin cast tanks, all products meet international IEC Standards and various quality certifications including ISO9001, ISO14001, and OHSAS18001.
