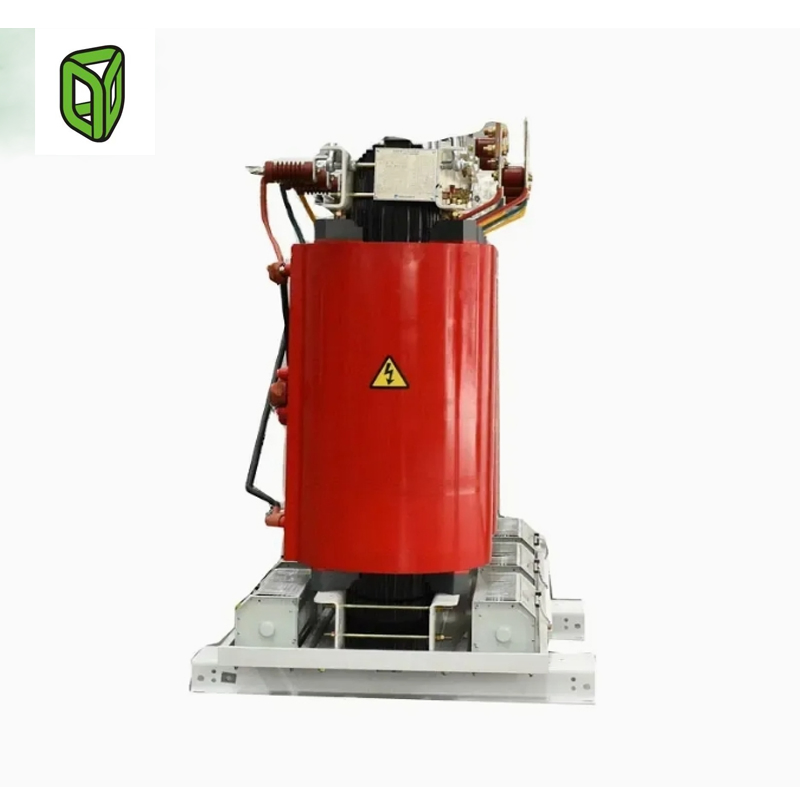

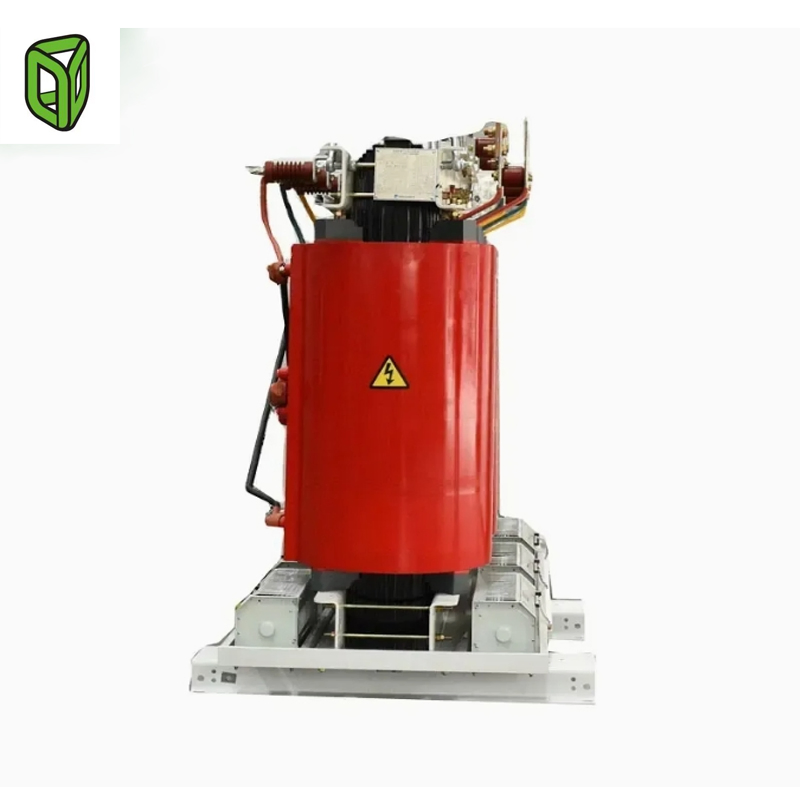

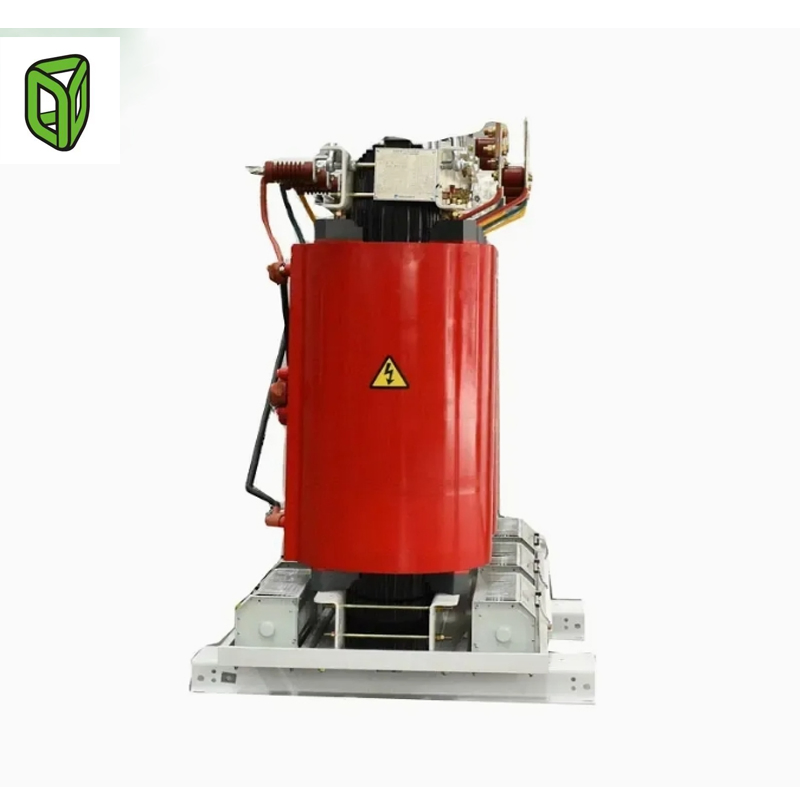

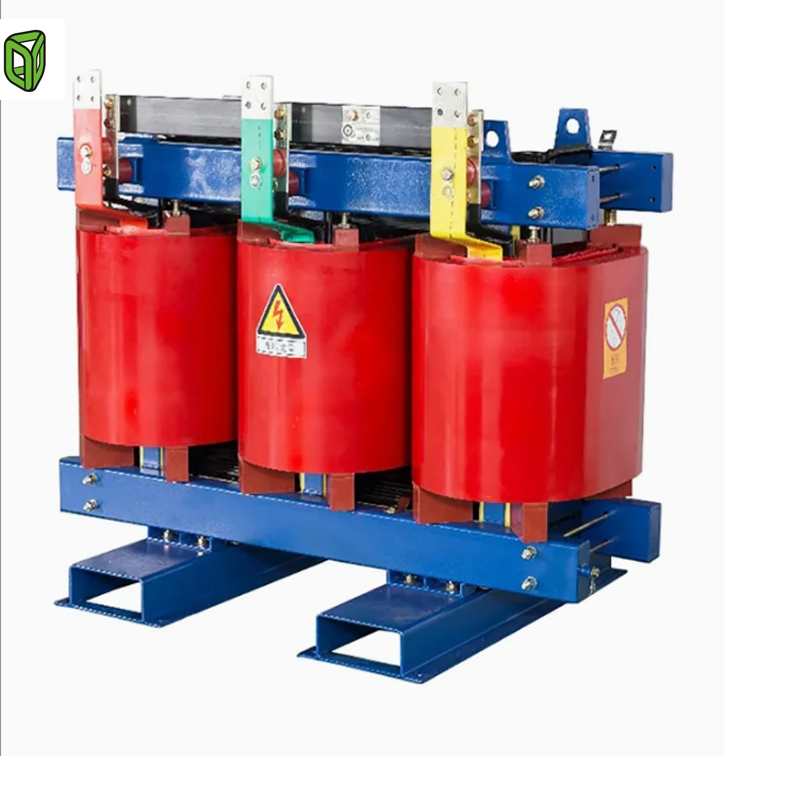

This state-of-the-art transformer is designed with cutting-edge technology to ensure maximum efficiency and reliability in power distribution.
| Rated capacity (KVA) | Voltage combination | Connected group label | No-load loss (W) | Load loss (W) | No-load current (%) | Impedance voltage (%) | Sound Level (db) | Total weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HV (KV) | Tap range | LV (KV) | 130ºC(B) | 155ºC(F) | 180ºC(H) | |||||||
| 100ºC | 120ºC | 145ºC | ||||||||||
| 30 | 6-11 | ±2×2.5 | 0.4 | Dyn11 | 170 | 670 | 710 | 760 | 0.6 | 4.0 | 57 | 300 |
| 100 | 360 | 1480 | 1570 | 1690 | 0.6 | 4.0 | 58 | 450 | ||||
| 400 | 880 | 3750 | 3990 | 4280 | 0.4 | 4.0 | 62 | 1205 | ||||
| 630 | 1200 | 5530 | 5880 | 6290 | 0.4 | 4.0 | 63 | 1515 | ||||
| 1000 | 1590 | 7650 | 8130 | 8760 | 0.3 | 6.0 | 65 | 2170 | ||||
| 1600 | 2200 | 11000 | 11700 | 12500 | 0.25 | 6.0 | 67 | 2980 | ||||
| 2500 | 3240 | 16100 | 17100 | 18400 | 0.20 | 6.0 | 69 | 4080 | ||||
The enterprise, founded in November 2009, is dedicated to the innovation, production, and service of advanced power products. Specializing in the development of three-dimensional coil core transformers, amorphous alloy core transformers, photovoltaic substations, and more, the company seamlessly integrates research, production, and EPC construction services. Our products serve a diverse range of industries including the State Grid, Southern Power Grid, railways, and real estate management, making us an indispensable partner in sectors like infrastructure and metallurgy.
The company boasts a suite of prestigious certifications including ISO9001:2015 for quality management, ISO14001:2015 for environmental management, and ISO45001:2008 for occupational health and safety. Our commitment to excellence has also earned us PCCC energy-saving product certification, national CCC certification, and CQC China quality certification. We are recognized as a national high-tech enterprise and a provincial leader in innovation, holding 3 invention patents and 51 utility model patents.
As pioneers in the power industry, our standout products, like the 'SCB13-RL Solid Triangle Ironcore Dry-Type Transformer,' are benchmarks of high manufacturing quality. We have been instrumental in drafting pivotal standards such as the 'GB/T32825-2016 National Standard for Three-Phase Dry Type Three-Dimensional Wound Core Distribution Transformer,' contributing significantly to the advancement of green energy technology.
