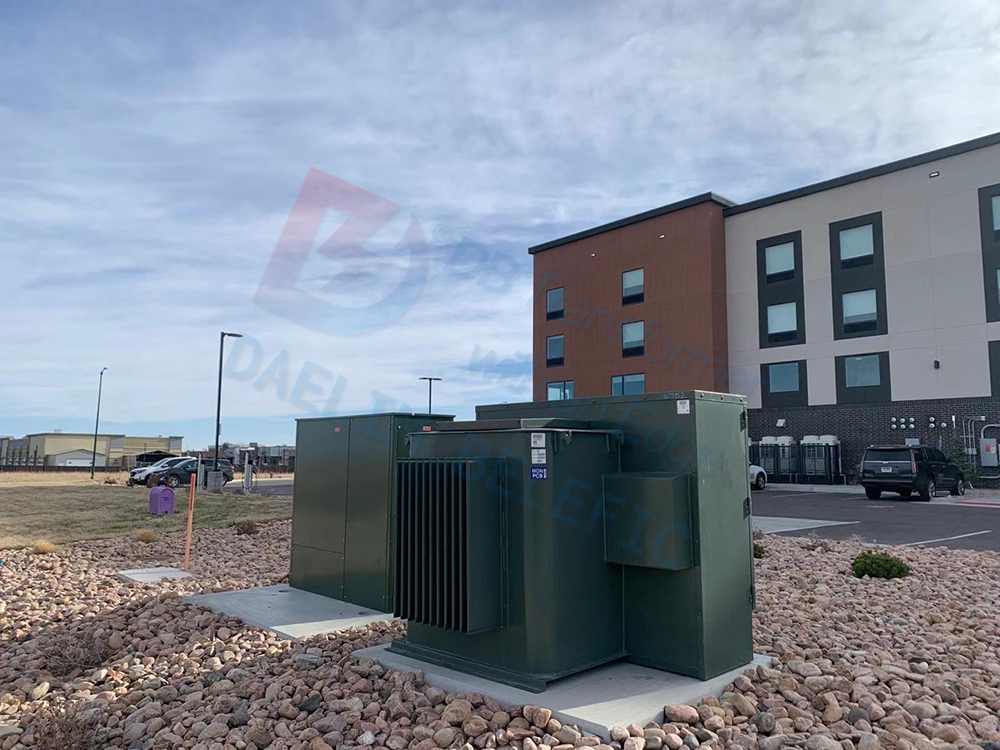

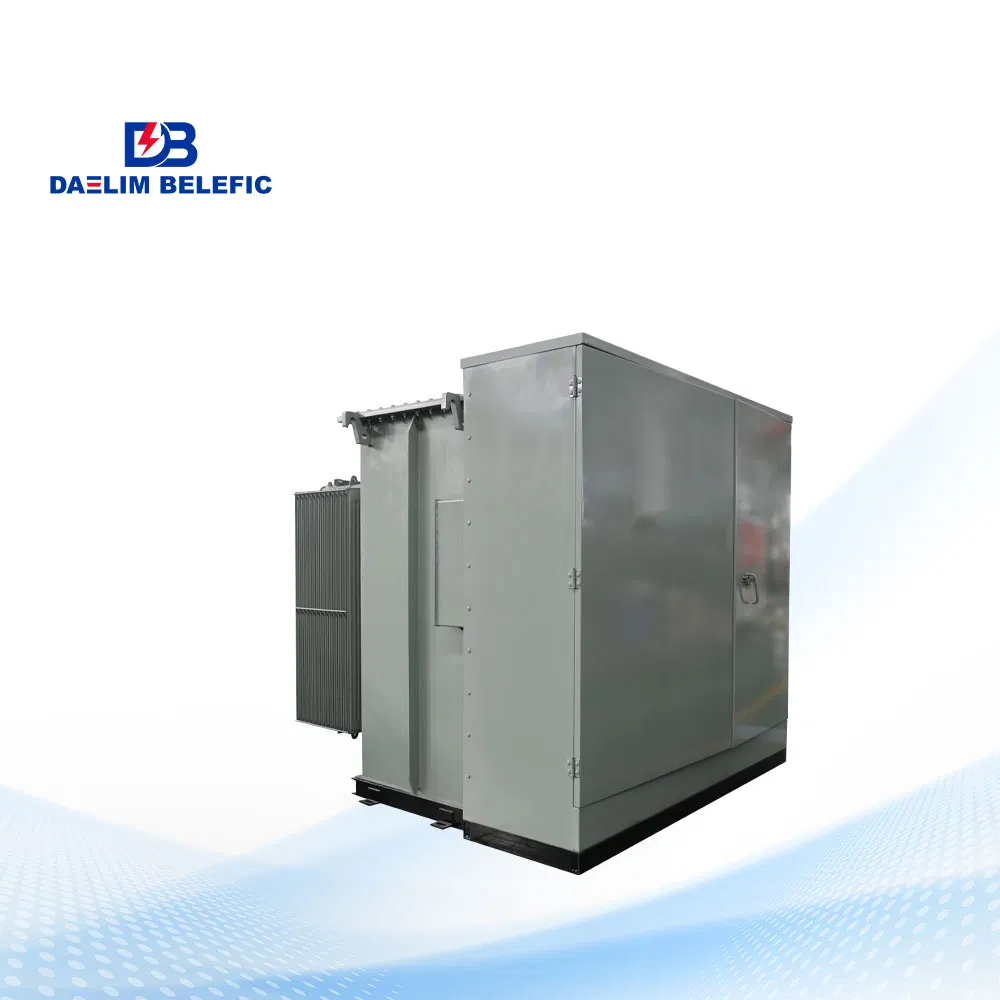

DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer
DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer
DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer
DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer
DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer
1 / 5
DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer
DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer
DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer
DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer
DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer

DOE Efficiency Best Sell 250kVA 12470V to 480y/277 Three Phase Pad Mounted Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ZGS
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Two-winding Transformer
Certification
ISO9001, ANSI CSA UL cUL
Usage
Power, Distribution, Renewable Energy
Frequency
50/60Hz
Type
Pad Mounted Transformer
Capacity
10kVA-50000kVA
Winding Material
Aluminum/Copper
Vector Group
Dyn1 Dyn11 Ynyn0 Ynd1
Warranty
2 Years
Product Overview
Professional International Power Projects Experience: We have 20 years of experience in international power projects and have helped many customers around the world complete power projects in Canada, Mexico, Panama, Ecuador, Guatemala, Honduras, Chile, Salvador, Venezuela, Australia, New Zealand, Spain, Belgium, Algeria, South Africa, Ethiopia, Myanmar, Kazakhstan, etc.

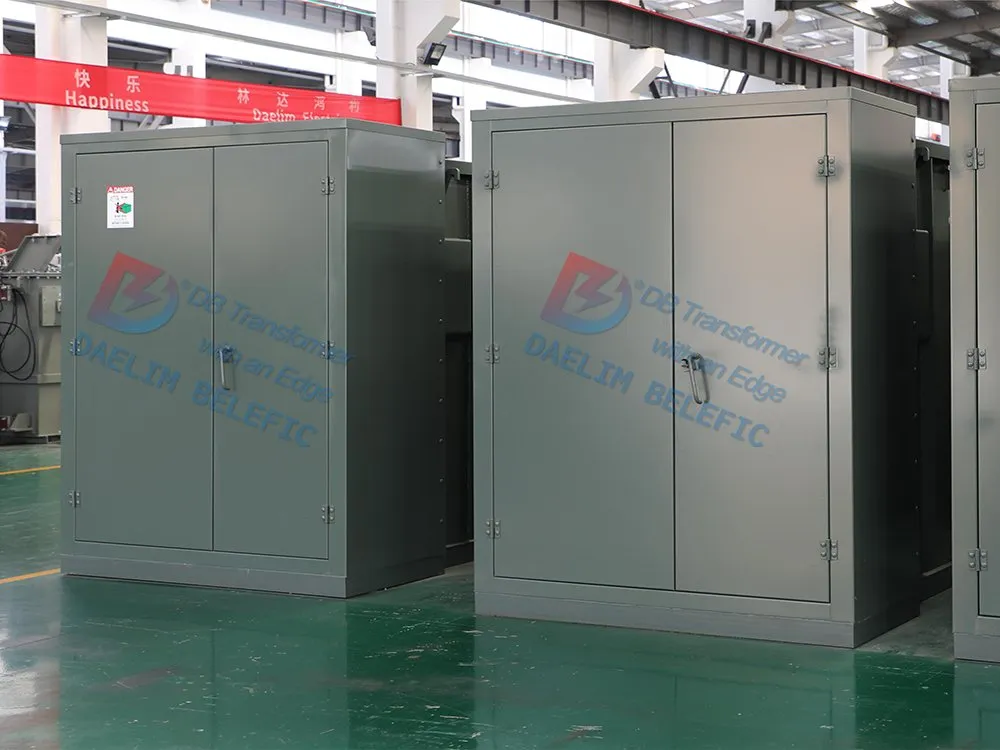

Three Phase Pad Mounted Transformer

Pad-mounted transformers are made in power ratings from around 75 to around 5000 kVA and often include built-in fuses and switches. Primary power cables are connected with elbow connectors, which can be operated when energized using a hot stick and allows for flexibility in repair and maintenance.

Our pad mounted transformer is designed and tested in accordance with industry standards including CSA, ANSI C.57, DOE, and IEEE as applicable.

Technical Specifications
Rated Capacity (KVA) High Voltage (KV) Low Voltage (V) No Load Loss (W) On Load Loss (W)
75KVA34.5KV / 13.8KV / 13.2KV / 12.47KV or others240V / 480V / 480Y/277V / 600Y/347V1801250
150KVA2802200
300KVA4803650
500KVA6805100
1000KVA115010300
2500KVA268027786
Product Details & Features

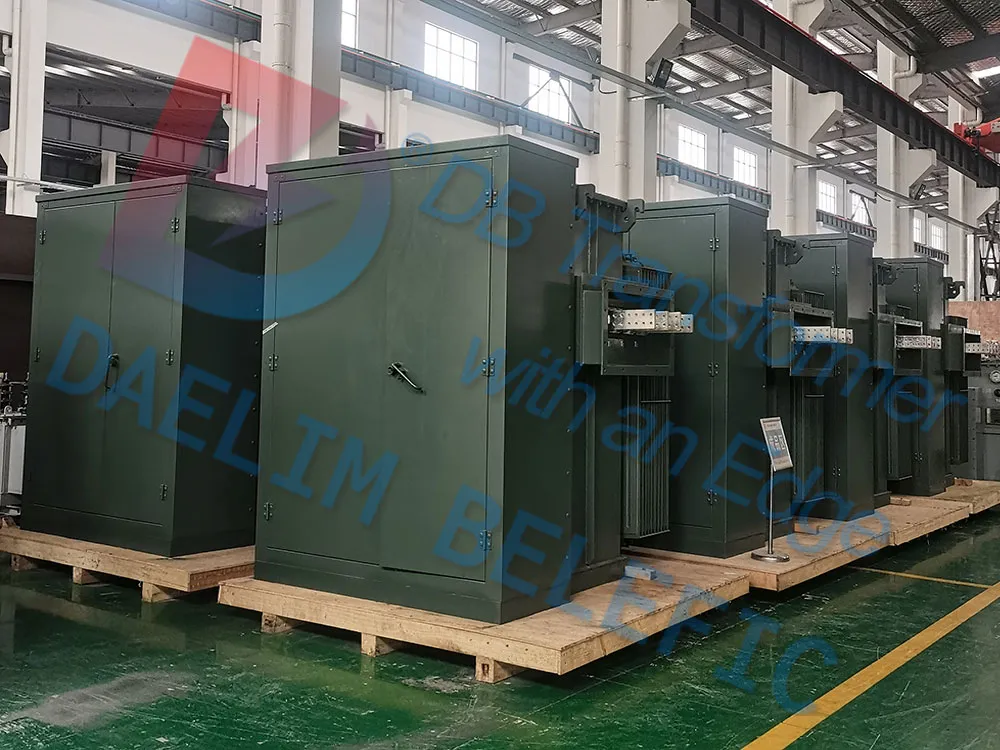

Transformer Detail 1

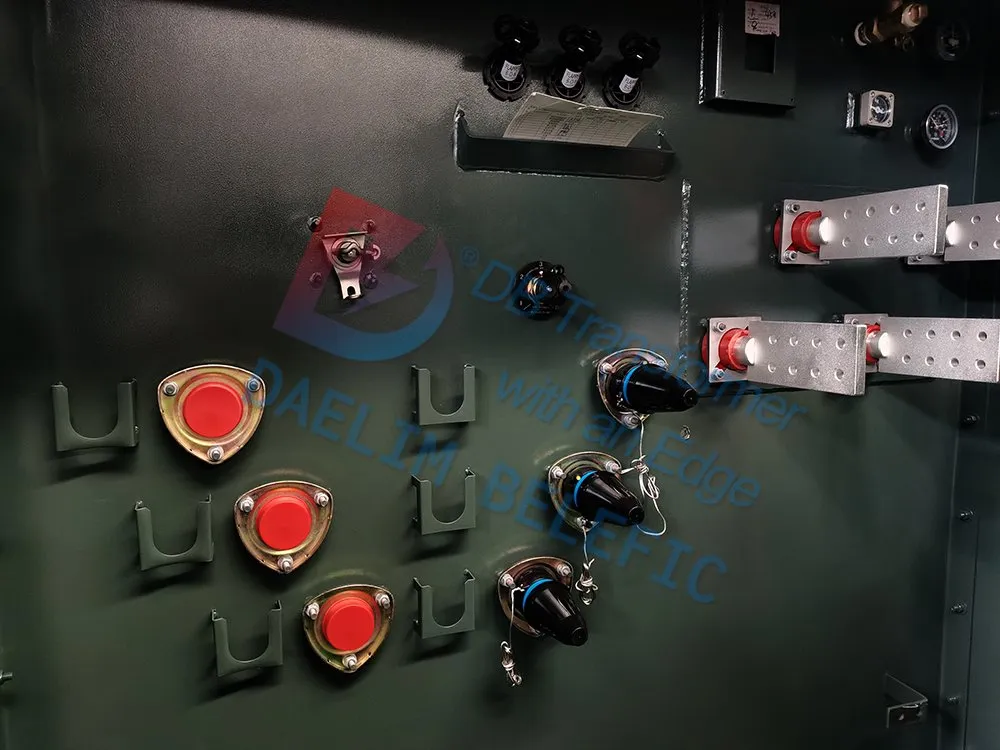

Transformer Detail 2

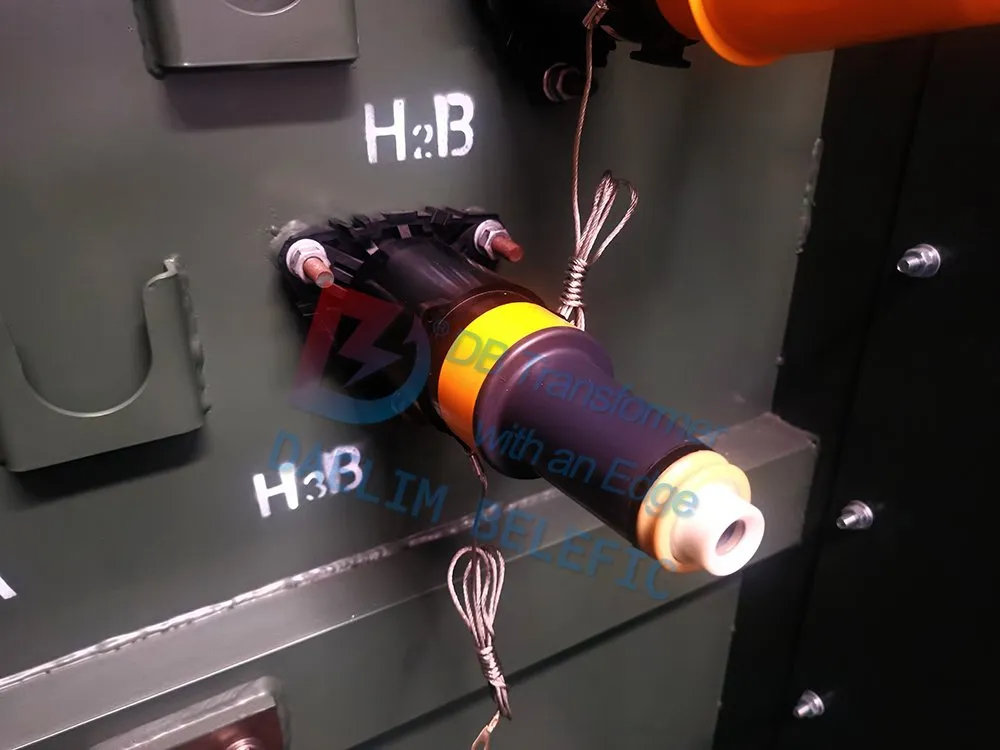

Transformer Detail 3

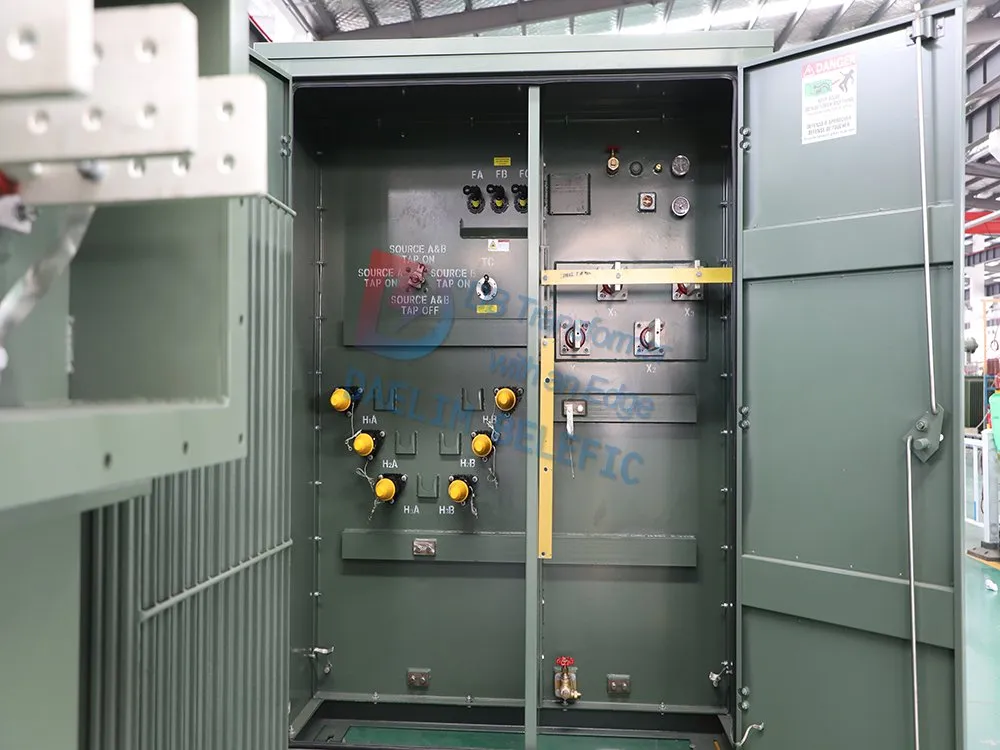

Transformer Detail 4
Enclosure Detail
  • Mild steel, optional stainless steel tank
  • Three-point latching door for security
  • Removable sill for easy installation
  • Stainless steel cabinet hinges and mounting studs
  • Live front construction & dead front construction
  • Steel HV/LV compartment barrier
  • 1" drain valve with sampler for 750 kVA and above
Transformer Structure
Special Projects: Renewable Energy & Crypto

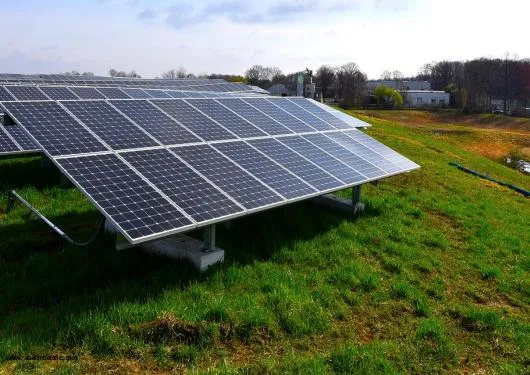

Renewable Energy Project

Renewable Energy Features:

  • Frequency: 50 Hz, 60Hz
  • Standard: IEEE, CSA
  • Base rating: 750 kVA through 10,000 KVA
  • High Voltage: Up to 35 kV
  • Solar-pads available for inverter connections

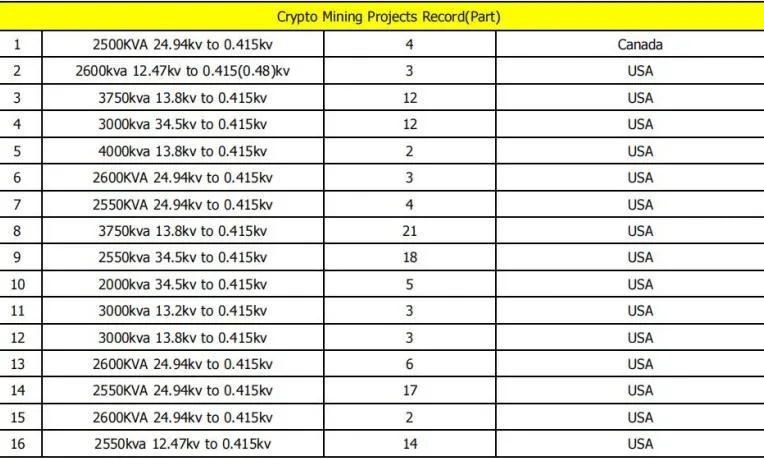

Crypto Project 1
Crypto Project 2
Packaging & Delivery

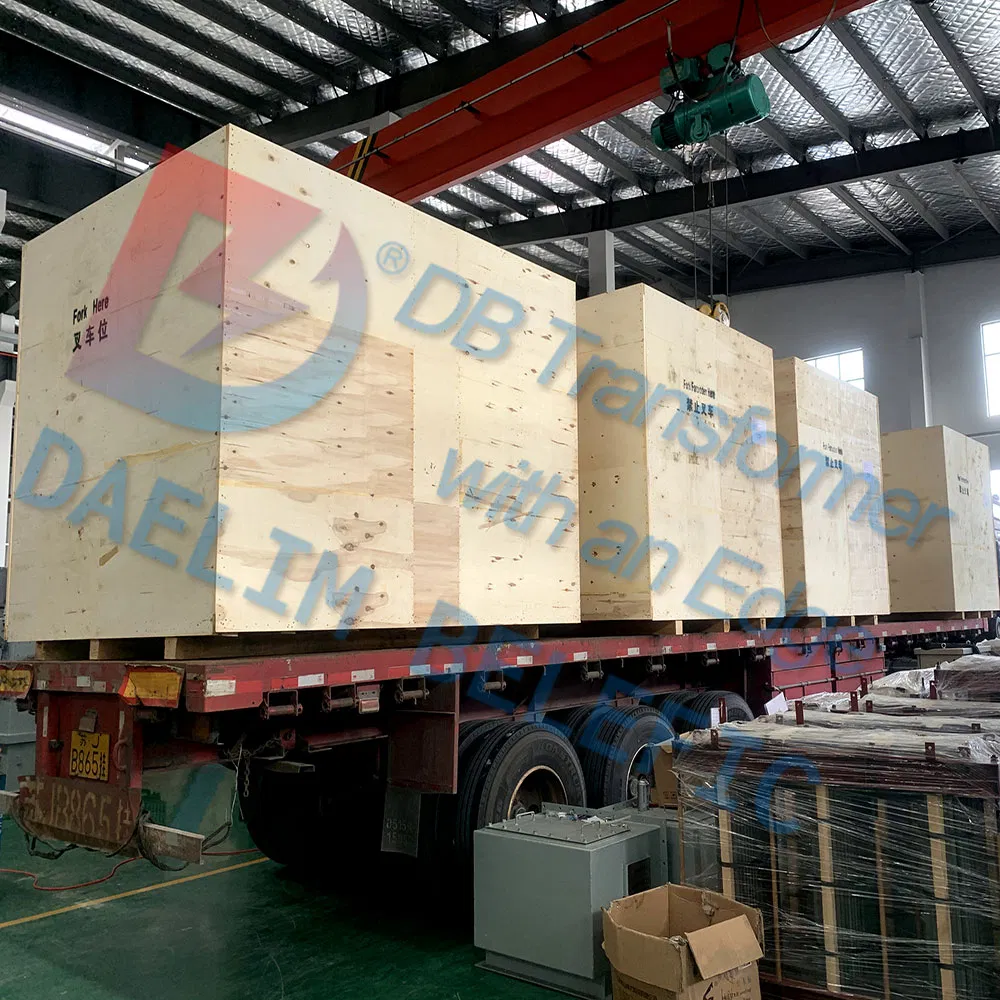

Wooden Box Packaging

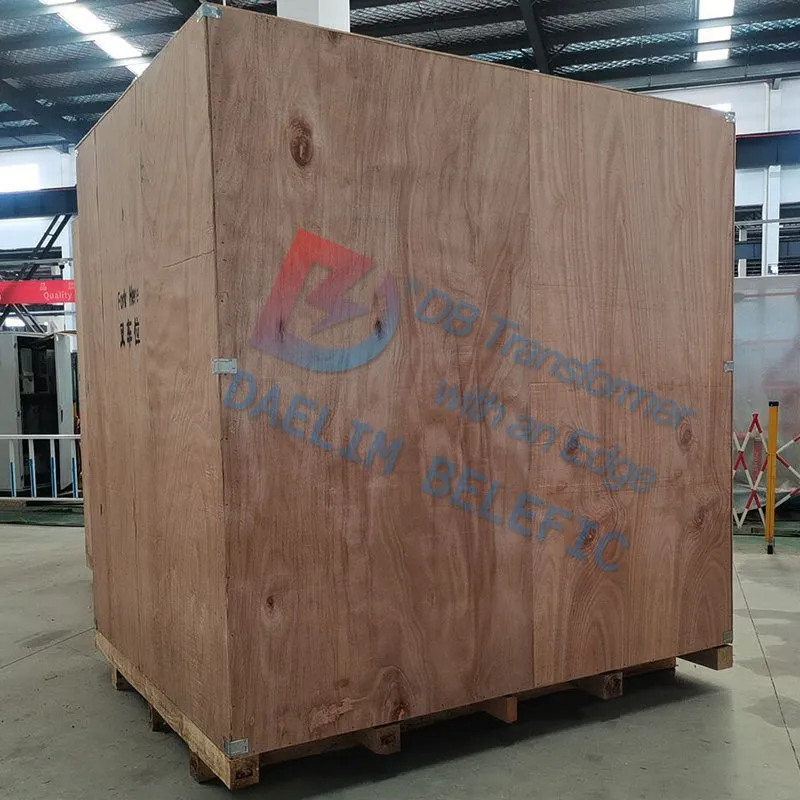

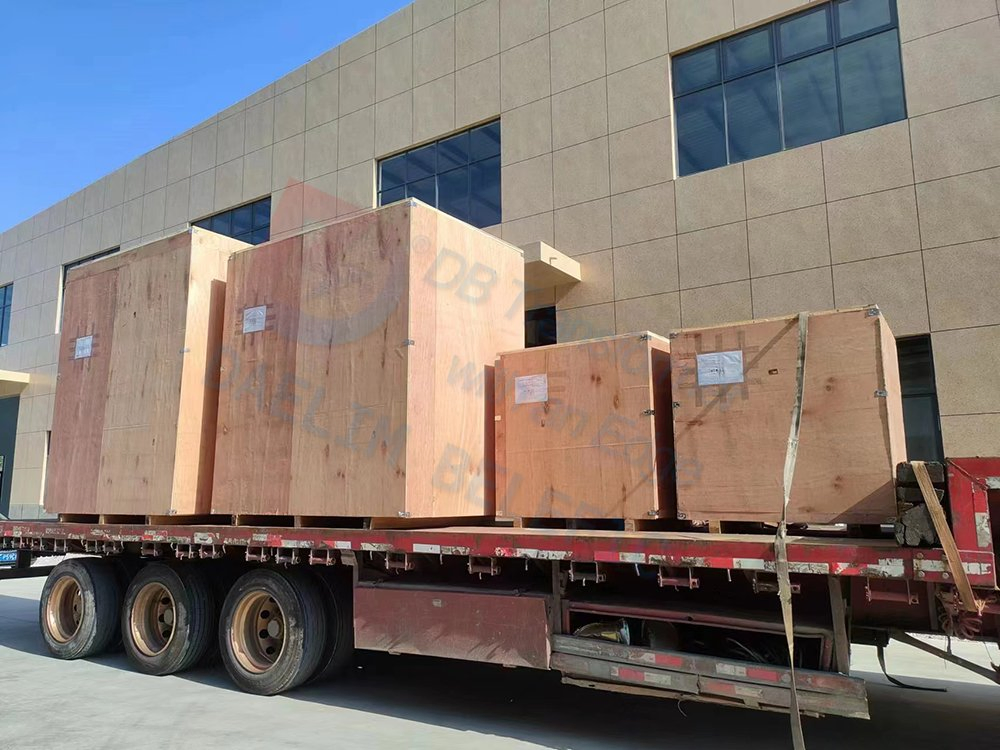

Shipping Logistics

Package: Wooden case or according to client's requirements. Strict adherence to international packing box standards.

Shipping: Extensive logistic network providing Land and Ocean transportation options globally.

Our Professional Services

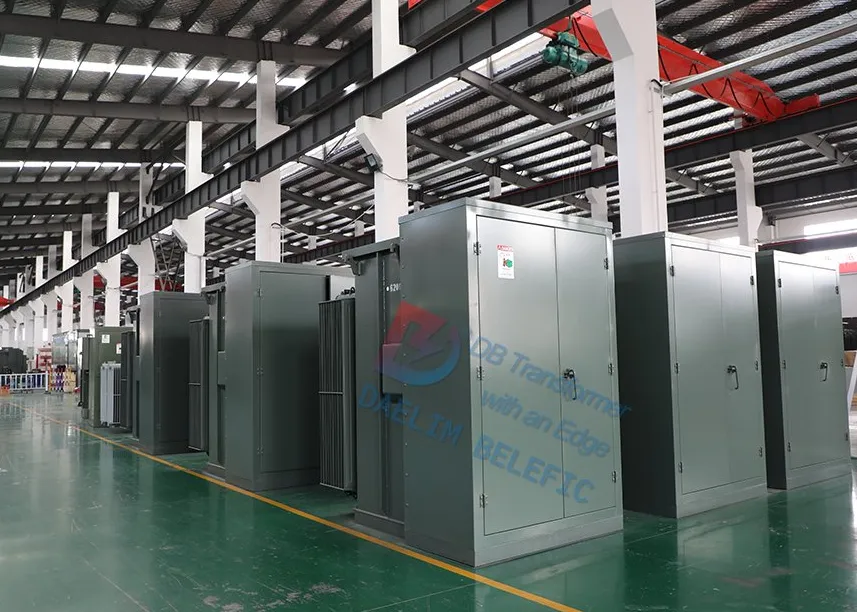

Service Team
  • Customized service according to international standards (ANSI/IEEE, IEC).
  • Free technical and pricing solutions.
  • Local installation service in multiple countries via professional teams.
Hot Sale Products

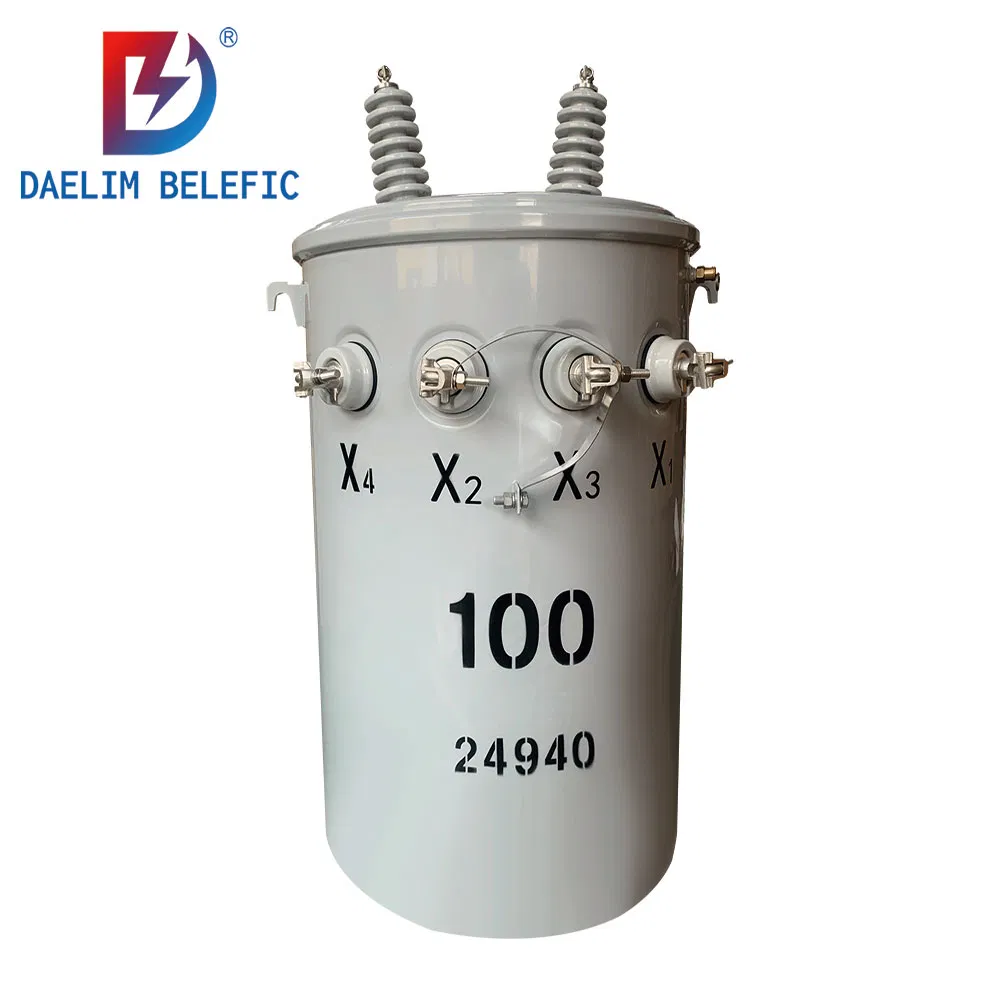

Hot Product 1

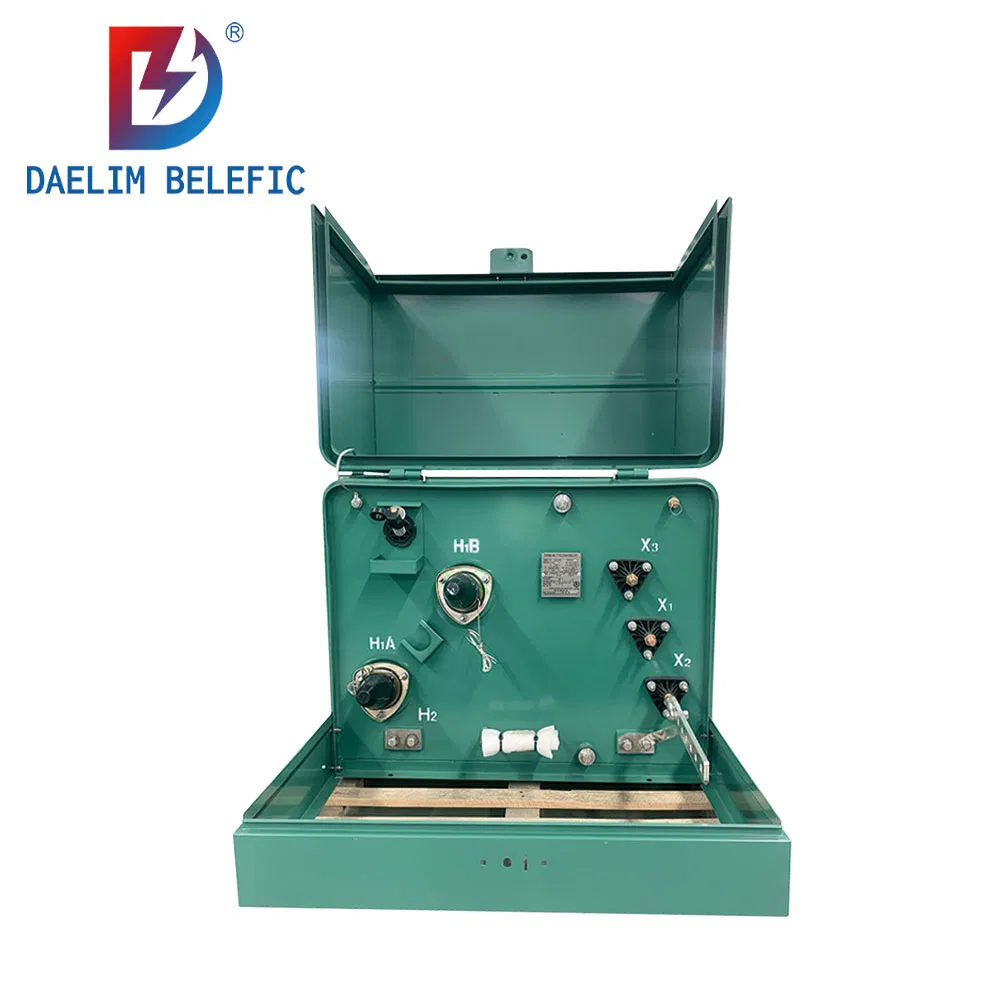

Hot Product 2

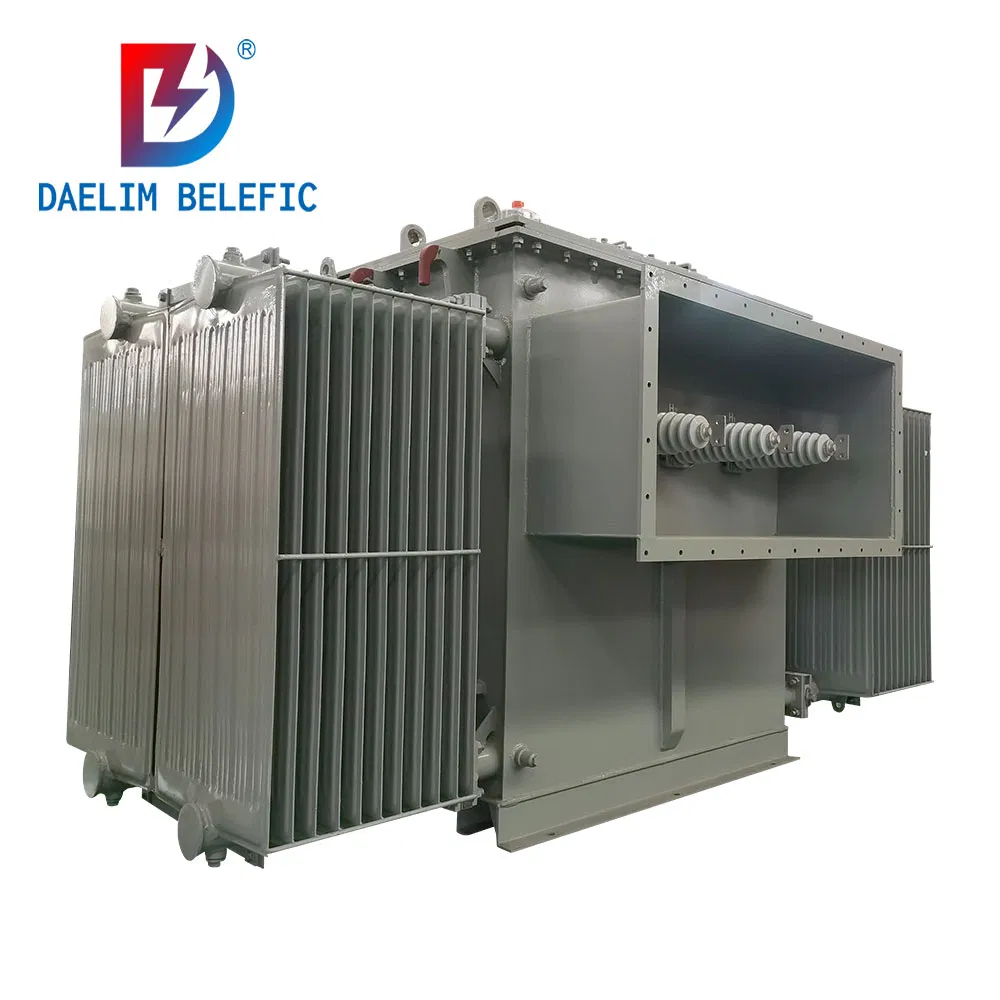

Hot Product 3

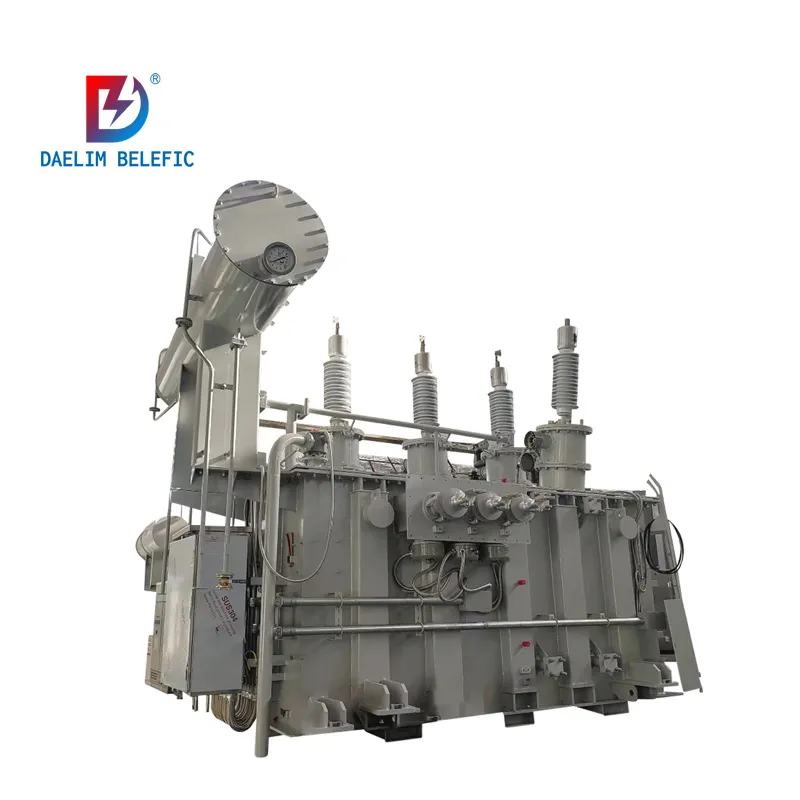

Hot Product 4

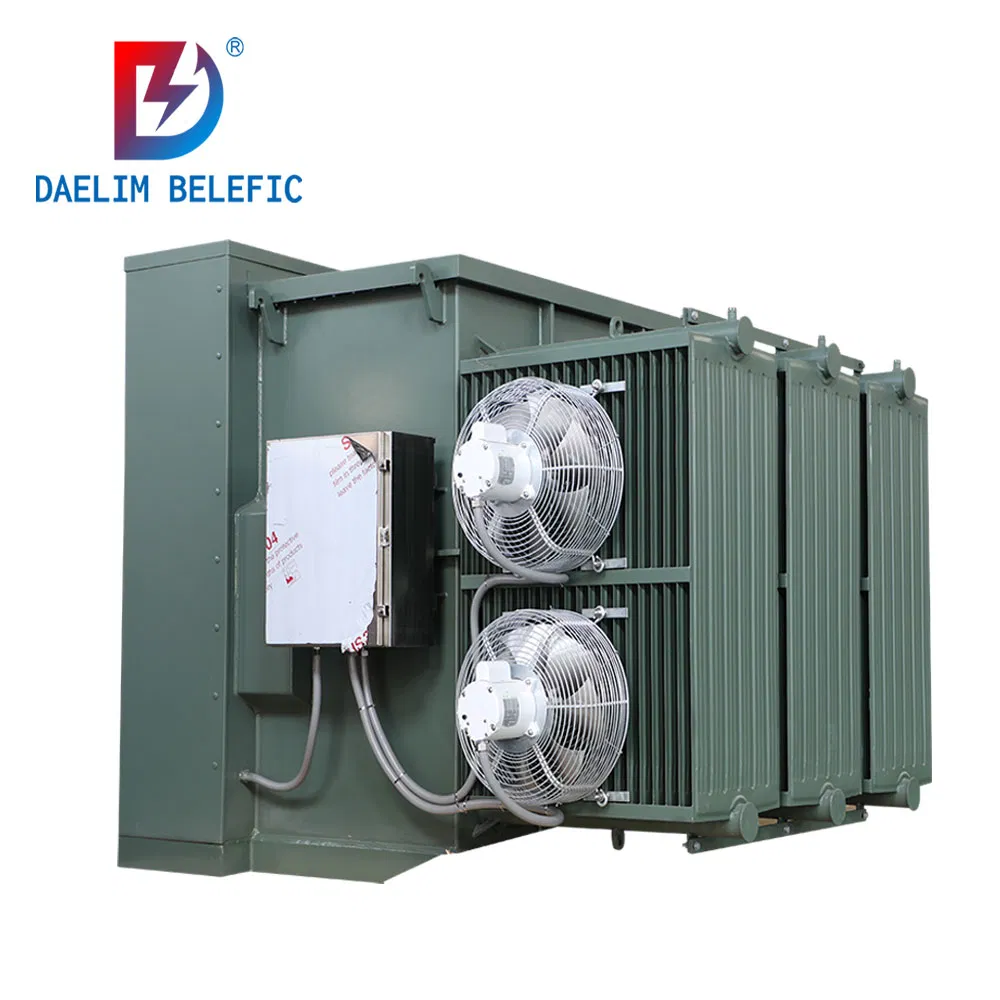

Hot Product 5
Frequently Asked Questions
Are you a transformer manufacturer?
Yes, we are a professional transformer manufacturer with our own specialized production facility.
How long is your standard delivery time?
Generally, it is 20 days if the goods are in stock, or 30 days if custom production is required, depending on the order quantity.
What packaging standards do you follow for international shipping?
We use export standard wooden cases and specialized reinforcement techniques in strict accordance with international standards.
Which global markets do you currently serve?
Our products are widely exported to North America, South America, Europe, the Middle East, and Africa.
What is your industry experience level?
The team has worked in the electric and power industry for nearly 25 years, ensuring expert-level product reliability.
Do you offer a product warranty?
Yes, all our transformers come with at least a two-year warranty for your peace of mind.
