35kV Three Phase Dry Type Power Transformer Competitive Price for Global B2B Buyers

Customization:	Available
Application:	Power, Electronic, Instrument
Phase:	Three

Basic Information

Model NO.

SCB11-35KV

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Two-winding Transformer

Certification

ISO9001-2000, ISO9001, CCC, CE

Usage

Power Transformer, Distribution Transformer

Frequency

50/60Hz

Shape of Core

Ring / Toroidal

Warranty

1-3 years

Rated Capacity

30-2500kVA

Vector Group

Dyn11, Yyn0

Origin

China

Packaging & Delivery

Package Size

230.00cm * 150.00cm * 200.00cm

Gross Weight

4500.000kg

Transport Package

Wooden Case

Product Description

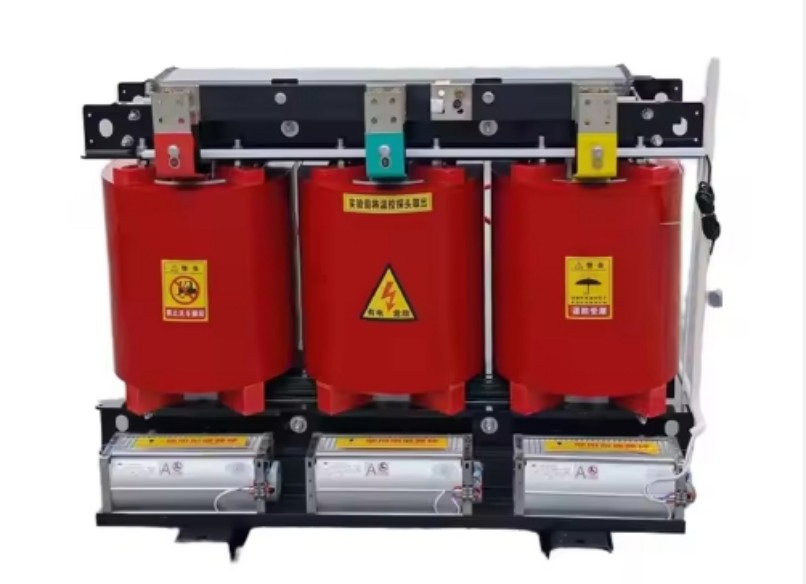

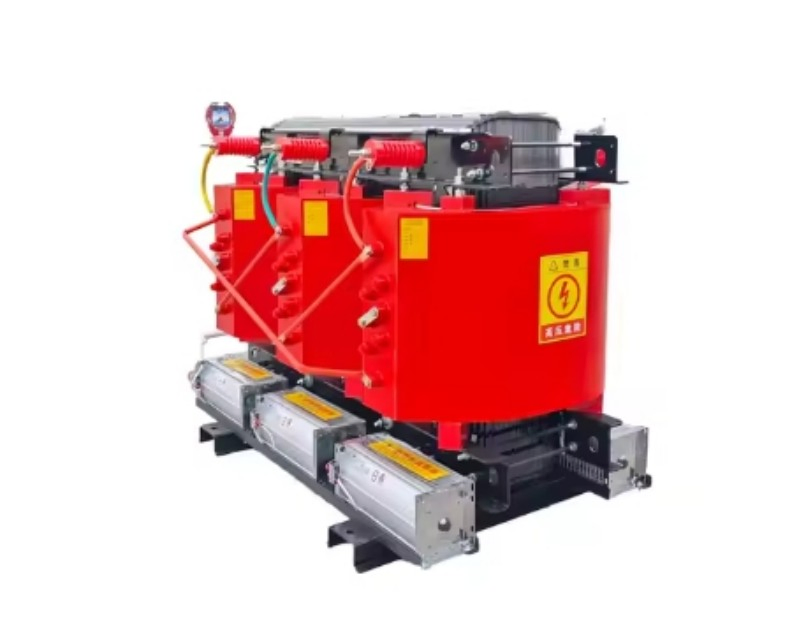

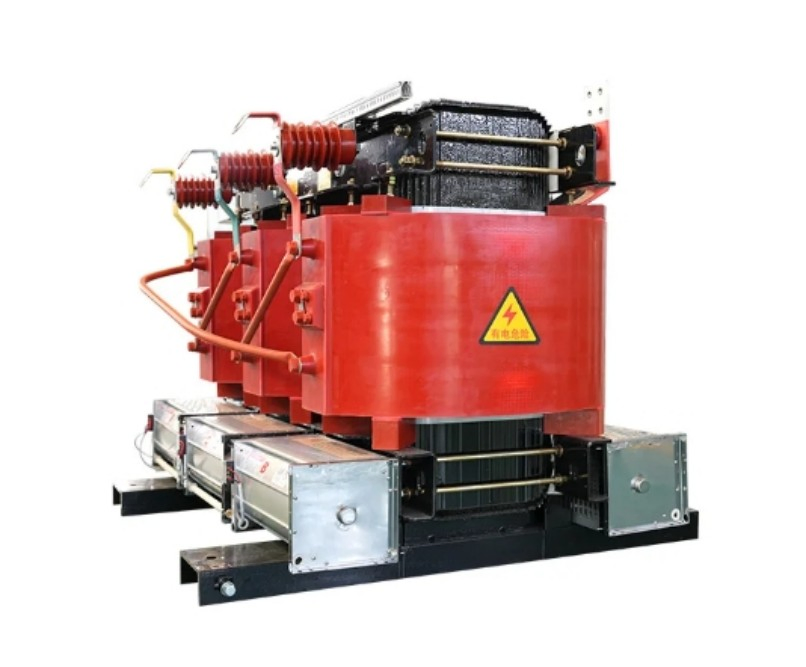

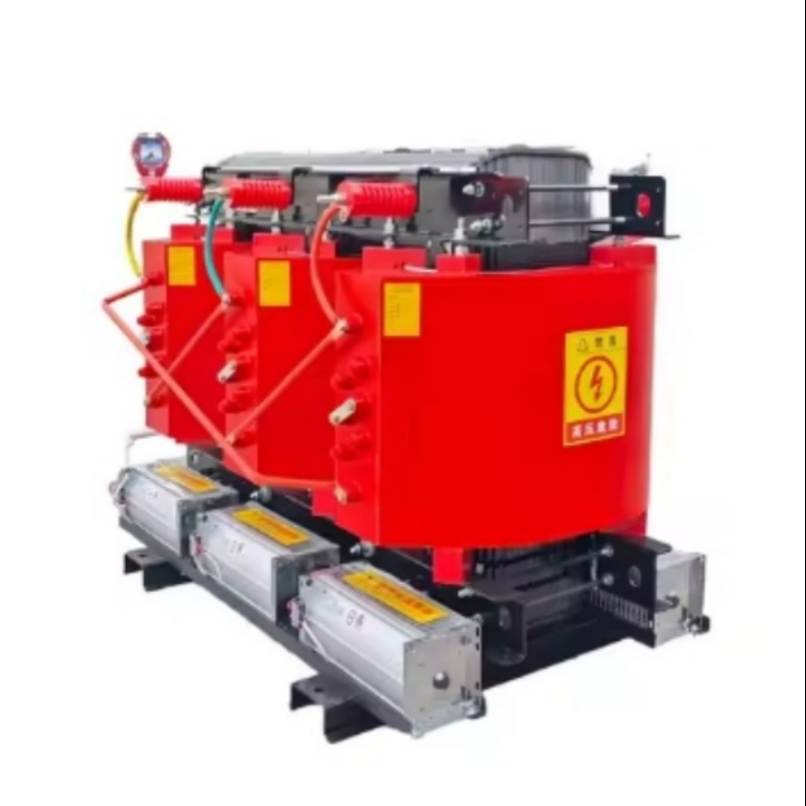

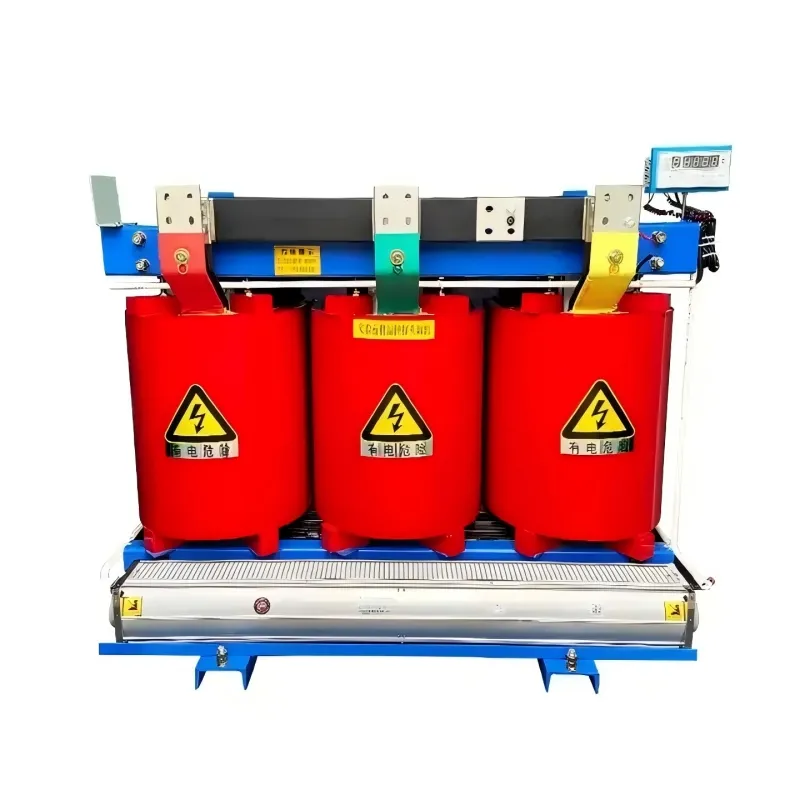

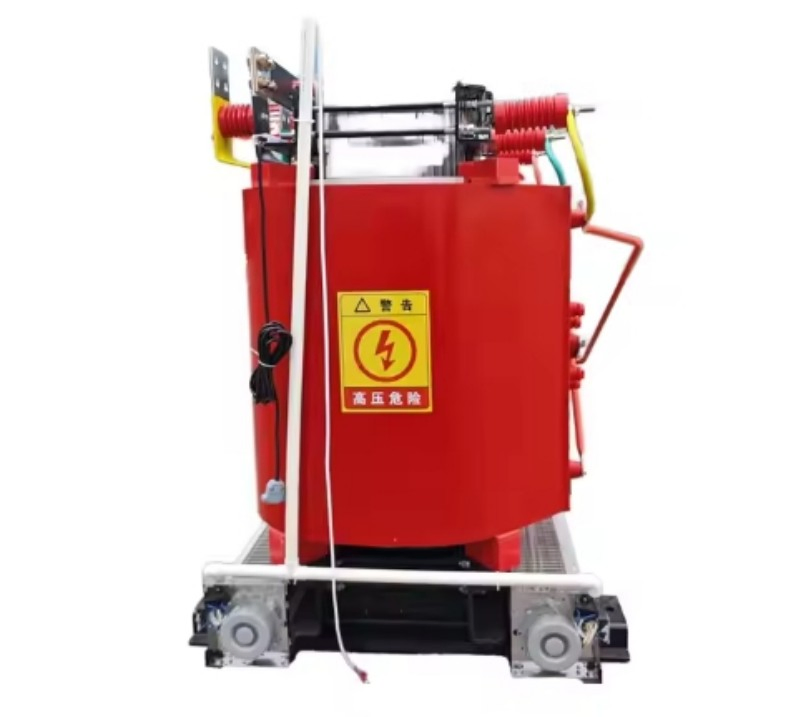

35kv Three Phase Step Down up Dry Type Power Transformer Price

PRODUCT INTRODUCTION

The dry-type transformers developed and produced by our facility offer high efficiency, energy saving, and superior environmental adaptability. Utilizing epoxy resin insulation, these units eliminate the need for flammable liquids, meeting strict international fire protection standards. They are oil-free, SF6-free, and 100% recyclable.

Designed for silent operation to minimize noise pollution, these transformers are fully sealed and cast with epoxy resin, making them dust-proof, moisture-proof, fire-proof, and explosion-proof. Their compact design allows for integration deep into load centers. We support modular designs with capacities ranging from 30kVA to 20MVA and voltage levels up to 35kV, catering to wind power, photovoltaics, and rail transit applications.

Technical Specifications

Capacity (kVA)	Voltage (kV)			Link Group	Short-Circuit Impedance (%)	Loss (W)		No-load Current (%)
Capacity (kVA)	HV	Tap	LV	Link Group	Short-Circuit Impedance (%)	No-load	Load	No-load Current (%)
30	6, 10, 11	±5% / ±2*2.5%	0.4, 0.415	Yyn0, Dyn11	4	190	700	2.6
100					4	480	1840	1.8
315					4	970	3990	1.4
630					6	1290	5960	1.3
1000					6	1760	8130	1.1
1600					6	2440	11730	1.1
2500					6	4000	17170	1.0

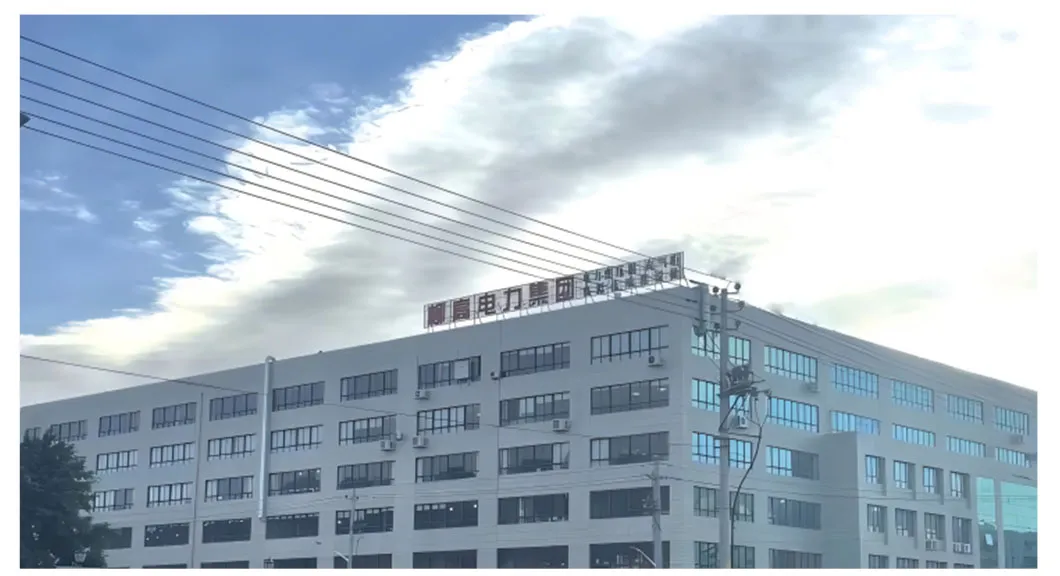

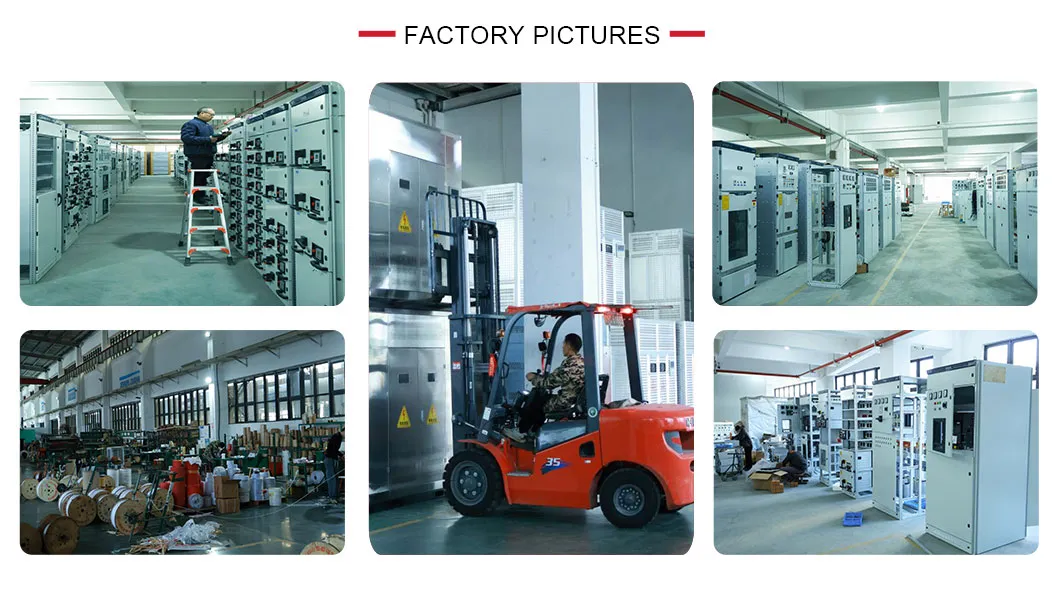

Manufacturing Capabilities

Our enterprise is an international high-tech entity specializing in the R&D, production, and sales of high-voltage, medium-voltage, and low-voltage transmission and distribution equipment. We provide one-stop solutions for global power infrastructure projects. With decades of pioneering innovation, we continuously enhance our capabilities by integrating cutting-edge production technologies supported by rigorous quality control systems.

Certifications

Frequently Asked Questions

Are you a manufacturer or a trader?

We are a leading professional manufacturer specializing in power transmission and distribution equipment with decades of industry experience.

What is your after-sales service policy?

We provide 24-hour online support, 1-3 years quality guarantee, and door-to-door service for large-scale equipment such as transformers and switchgear.

What are your standard payment terms?

Typically, we require a 30% T/T deposit in advance, with the balance due before shipment. Irrevocable L/C at sight is also accepted for large orders.

What is the capacity range for your dry-type transformers?

Our dry-type transformers support a wide capacity range from 30kVA up to 20MVA, with voltage levels reaching up to 35kV.

Do your products meet international safety standards?

Yes, our products carry international quality approvals including CE, RoHS, KEMA, CB, and TUV, ensuring global compliance and reliability.

What are the main advantages of your epoxy resin transformers?

They are fire-proof, explosion-proof, moisture-proof, and maintenance-free. They are also environmentally friendly as they are oil-free and 100% recyclable.
