Specifically crafted for reliable and efficient power distribution, this 1600kVA 35kV three-phase oil-immersed transformer shines with high-quality aluminum windings. Offering a cost-effective yet robust solution for medium voltage applications, it is engineered to align with IEC or ANSI standards. Experience superior thermal performance, minimal loss, and an extended service life even under the most demanding load conditions.
With its compact and rugged construction, this transformer stands as the perfect choice for utility networks, industrial plants, and commercial facilities demanding a stable and continuous power supply. The use of aluminum windings effectively reduces overall weight and cost, ensuring exceptional electrical performance and unwavering reliability.
| Model | HV (KV) | Tapping Range | LV (KV) | Vector Group | No-load loss (KW) | Load Loss (KW) | Impedance (%) |
|---|---|---|---|---|---|---|---|
| SC13-100 | 6 / 10 / 11 / 13.2 | ±2*2.5 | 0.4 | Dyn11/Yyn0 | 0.29 | 1.41 | 4.0 |
| SC(B)13-500 | 6 / 10 / 11 / 13.2 | ±2*2.5 | 0.4 | Dyn11/Yyn0 | 0.835 | 4.39 | 4.0 |
| SC(B)13-800 | 6 / 10 / 11 / 13.2 | ±2*2.5 | 0.4 | Dyn11/Yyn0 | 1.09 | 6.26 | 6.0 |
| SC(B)13-1600 | 6 / 10 / 11 / 13.2 | ±2*2.5 | 0.4 | Dyn11/Yyn0 | 1.5 | 8.72 | 6.0 |
| SC(B)13-2500 | 6 / 10 / 11 / 13.2 | ±2*2.5 | 0.4 | Dyn11/Yyn0 | 2.59 | 15.4 | 6.0 |

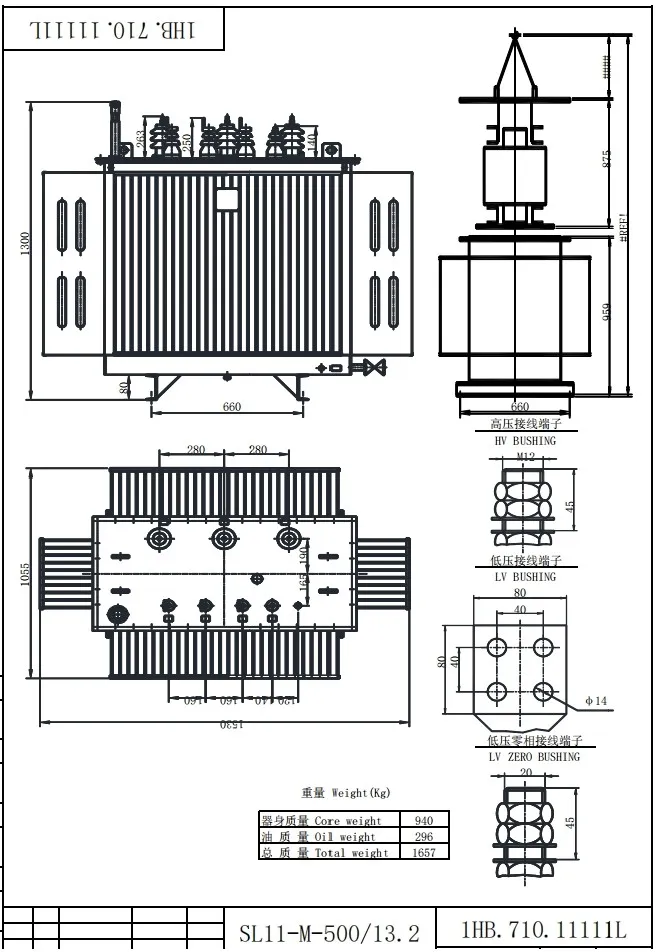

Detailed CAD drawings and dimensional diagrams are readily available upon inquiry. Our engineering team is poised to offer tailored designs to meet your specific project requirements.
With 16 years of experience in transformer manufacturing, our production covers amorphous, dry-type, oil-immersed, and box-type series. Voltage levels reach up to 35 kV with a maximum capacity of 31,500 kVA.

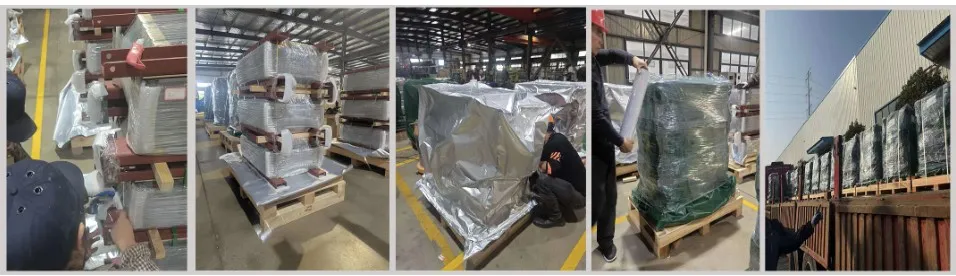

Each transformer is securely mounted on a fumigation-free wooden pallet and wrapped with moisture-proof film and protective foil. The packaging is suitable for sea and land shipment (LCL/FCL).
