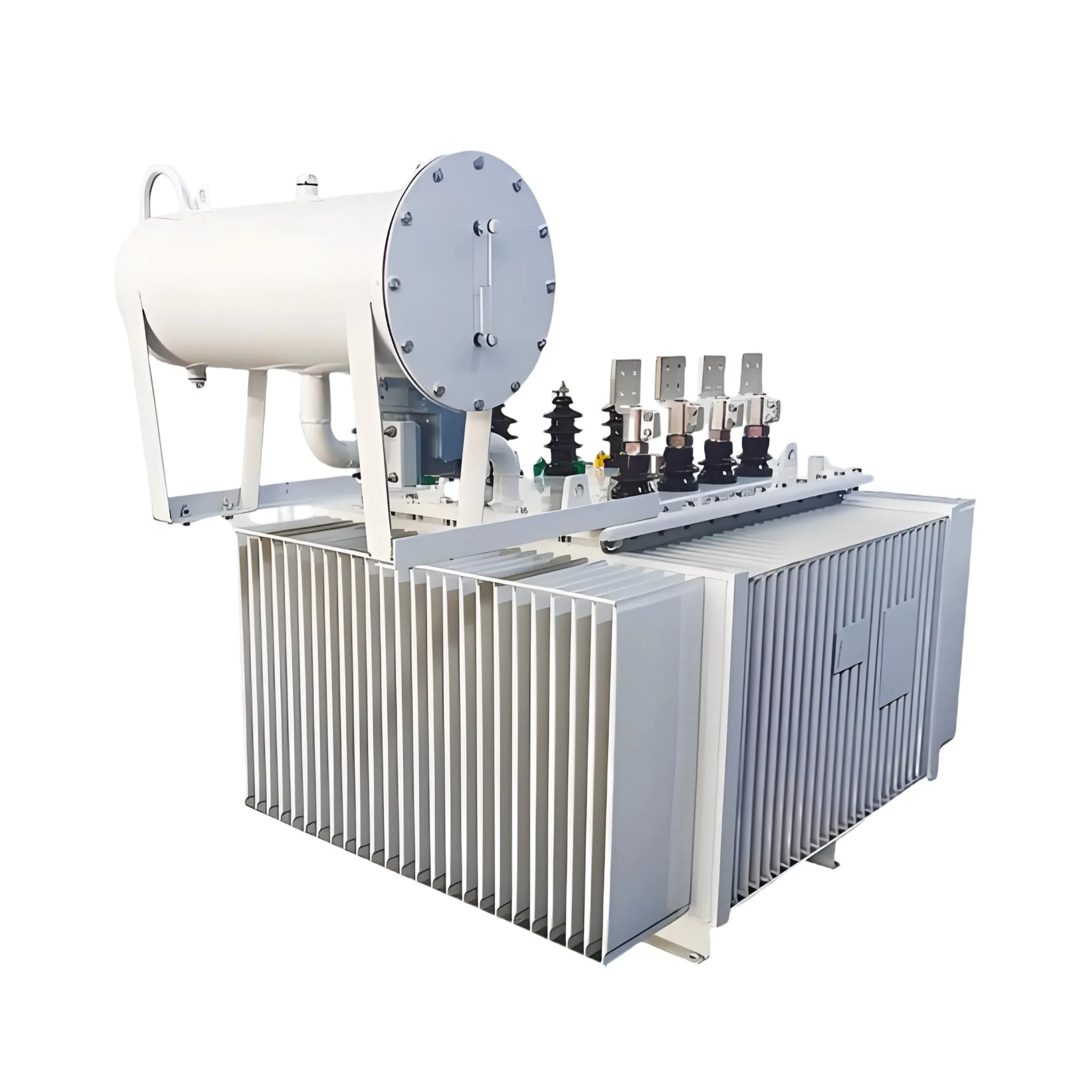

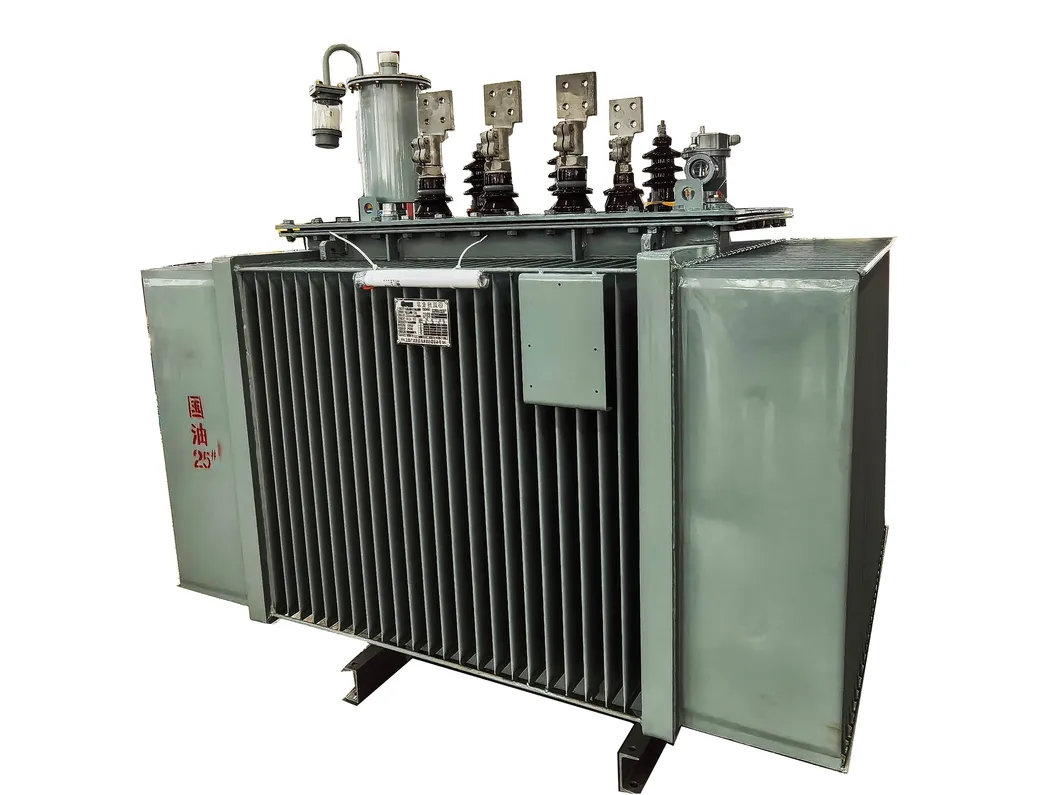

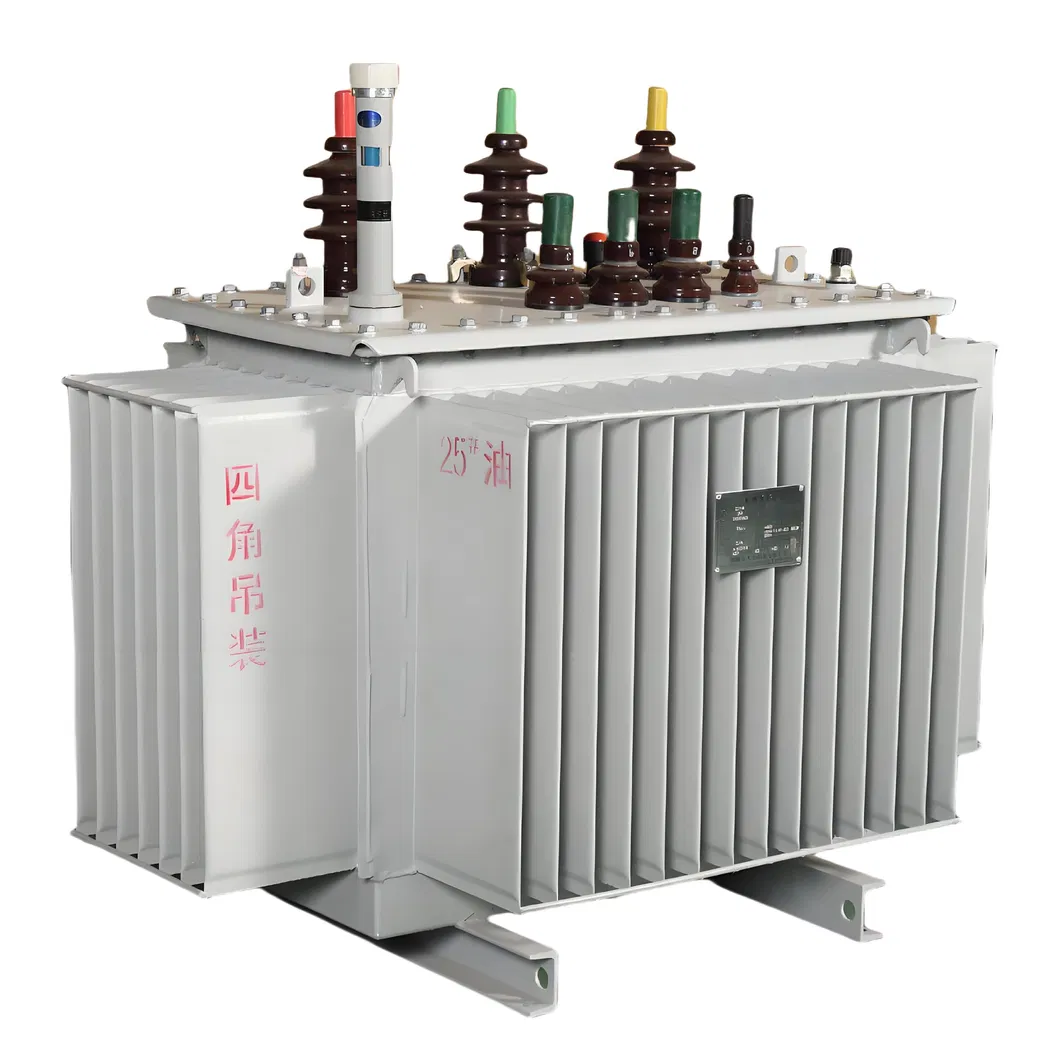

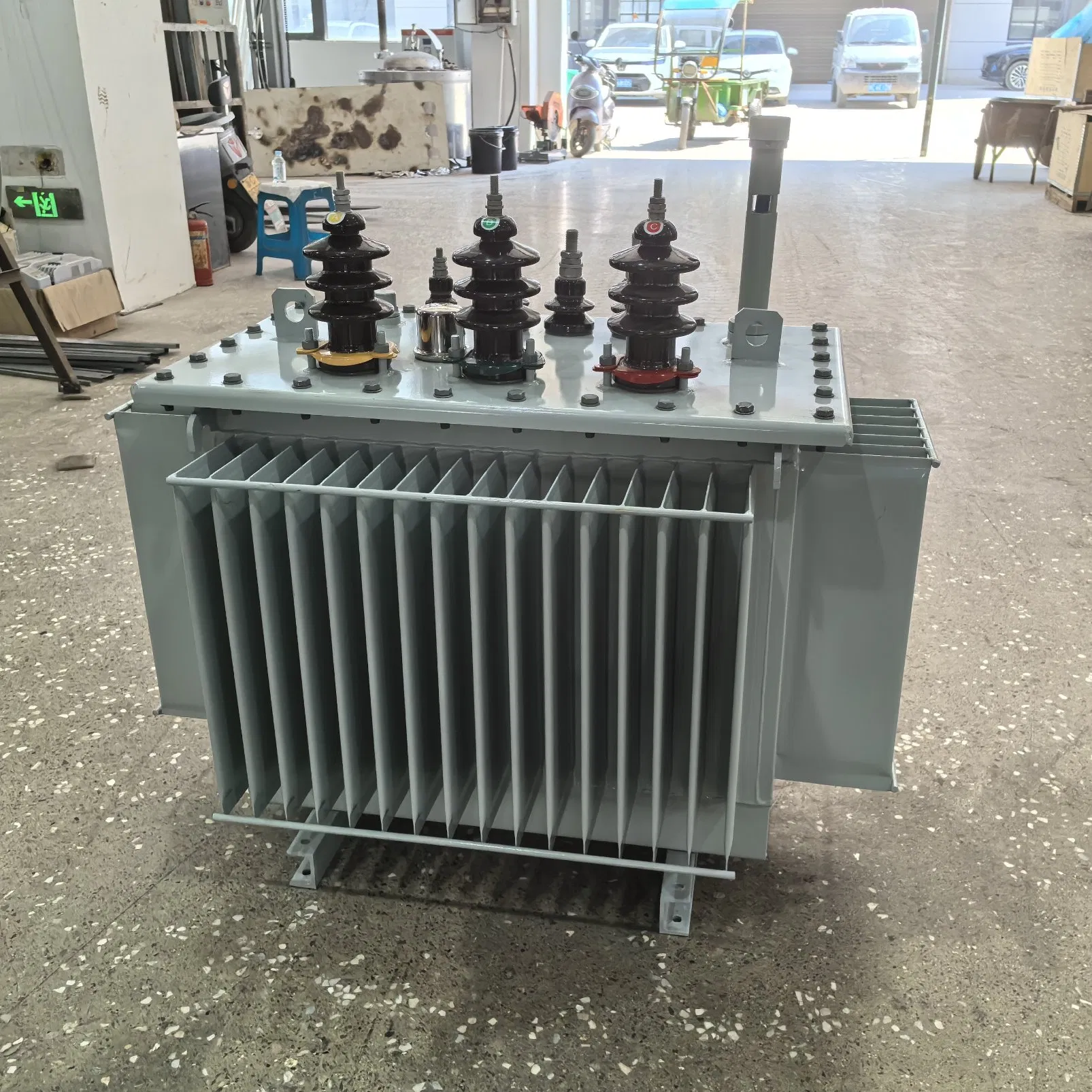

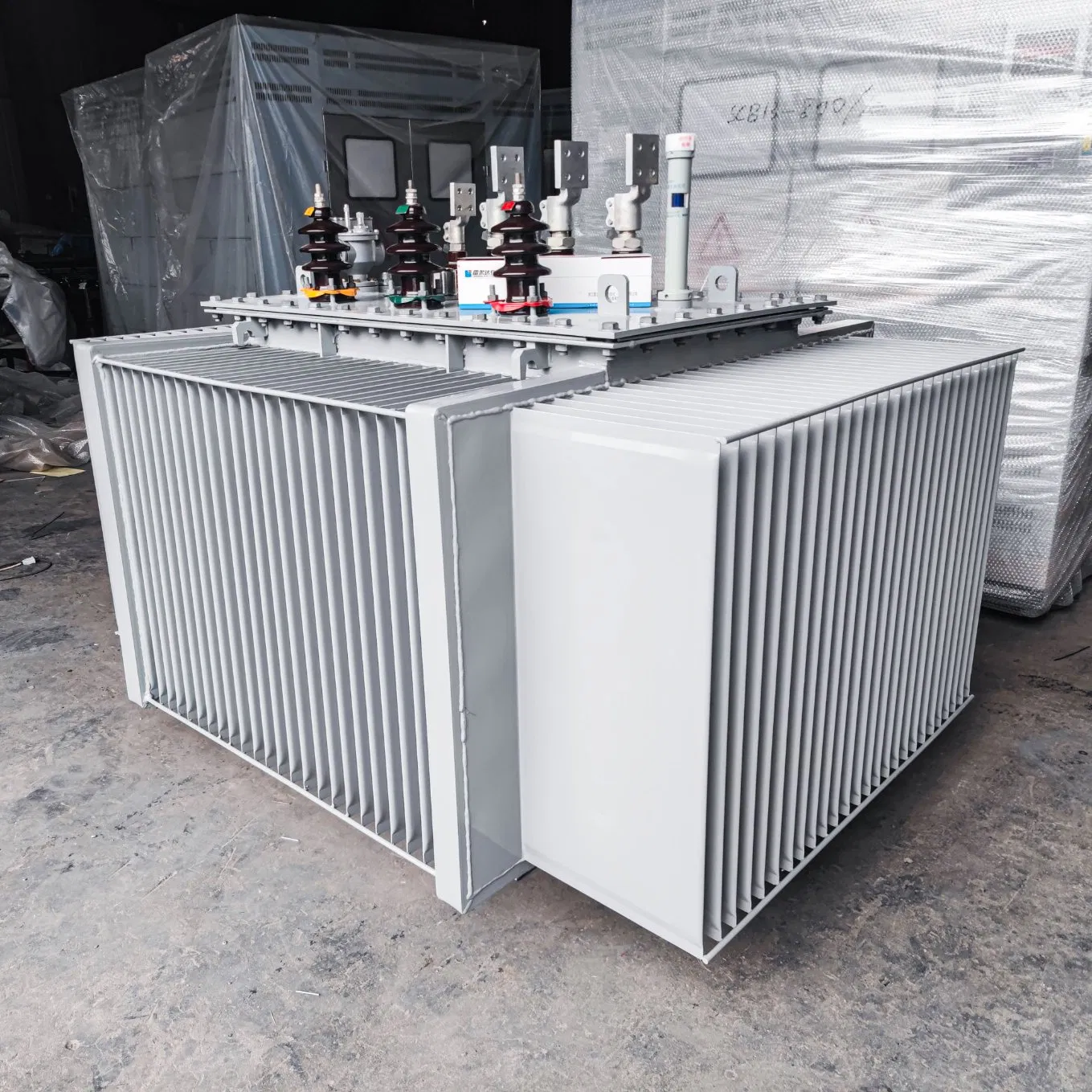

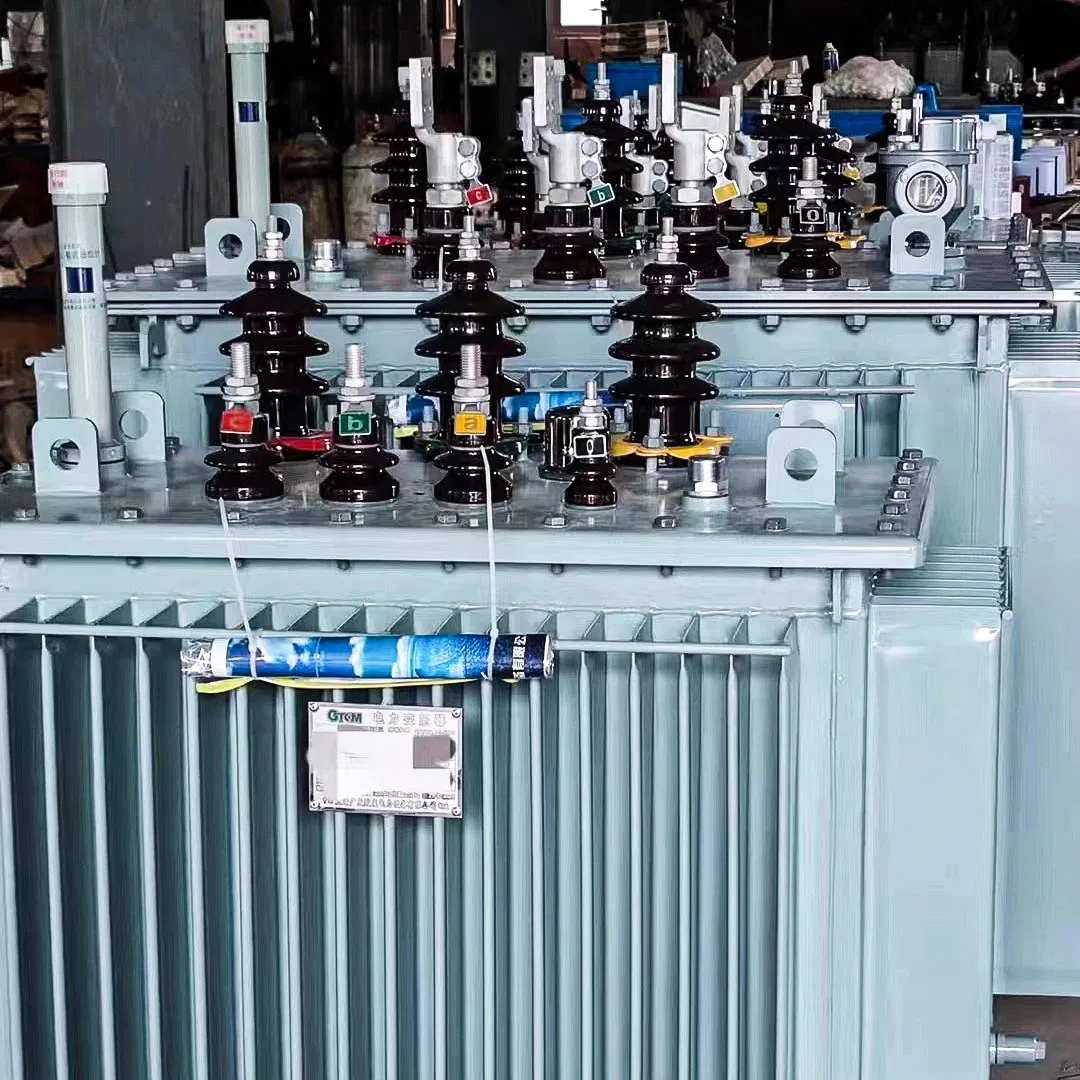

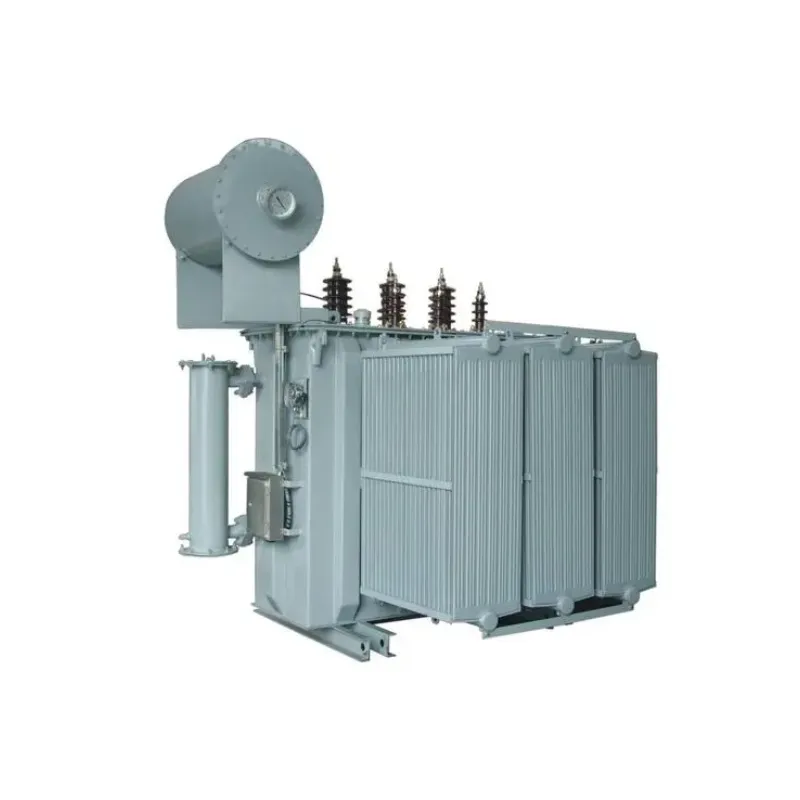

The rated capacity of this oil immersed power transformer ranges from 650kVA to 2000kVA. Suitable for both outdoor installations and indoor substations. Available models include S9, S11, S13, and S15. High-voltage options range from 6KV to 35KV, with low-voltage configurations such as 400V or 415V to meet local requirements.
*Product appearance is subject to actual configuration.
| Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection Symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
|---|---|---|---|---|---|---|
| 100 | 6KV / 10KV / 11KV / 20KV / 35KV (Customizable) | 0.4KV (Customizable) | Ydn11 / Yyn0 (Customizable) | 200 | 1500/1580 | 1.6 |
| 250 | 400 | 3050/3200 | 1.2 | |||
| 500 | 680 | 5150/5410 | 1.0 | |||
| 630 | 810 | 6200 | 0.9 | |||
| 1000 | 1150 | 10300 | 0.7 | |||
| 1250 | 1360 | 12000 | 0.6 | |||
| 2000 | 2020 | 17820 | 0.6 |

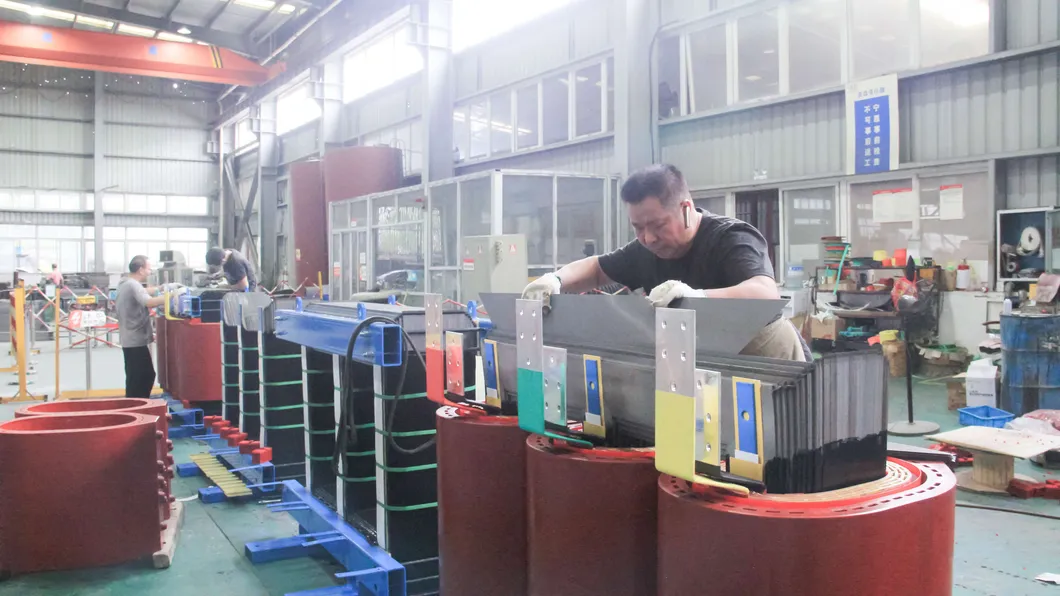

Made of brand new, high-grade silicon steel sheets. Ensures low wear, minimal operational noise, and high energy efficiency.

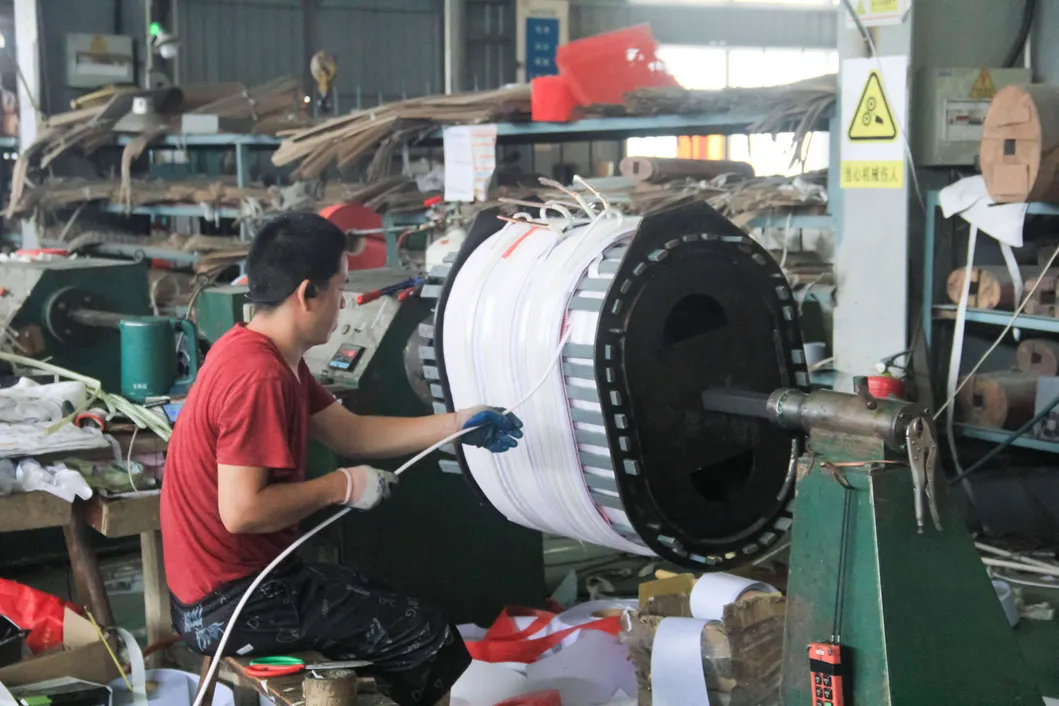

Uses heat-resistant enameled wire. Ensures excellent conductivity, stable operation, enhanced overload capacity, and resistance to oxidation for a longer lifespan.

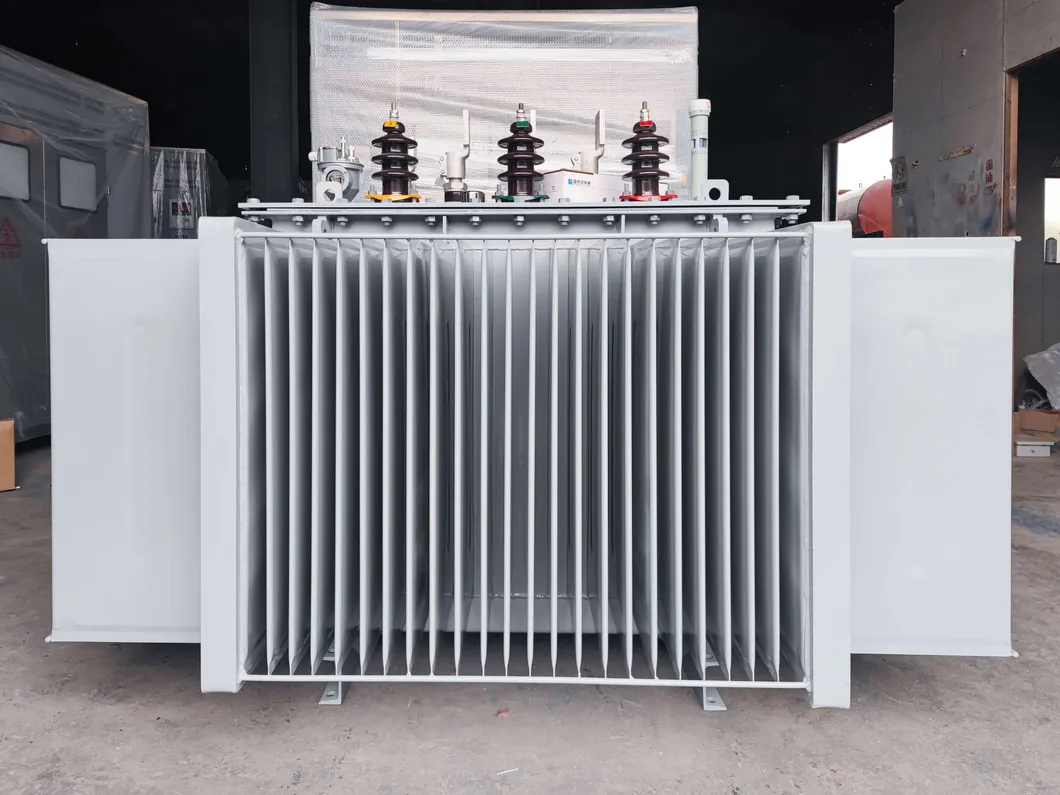

The tank features breathable corrugated walls that compensate for volume changes due to temperature fluctuations, eliminating the need for a separate conservator tank and reducing height/cost.

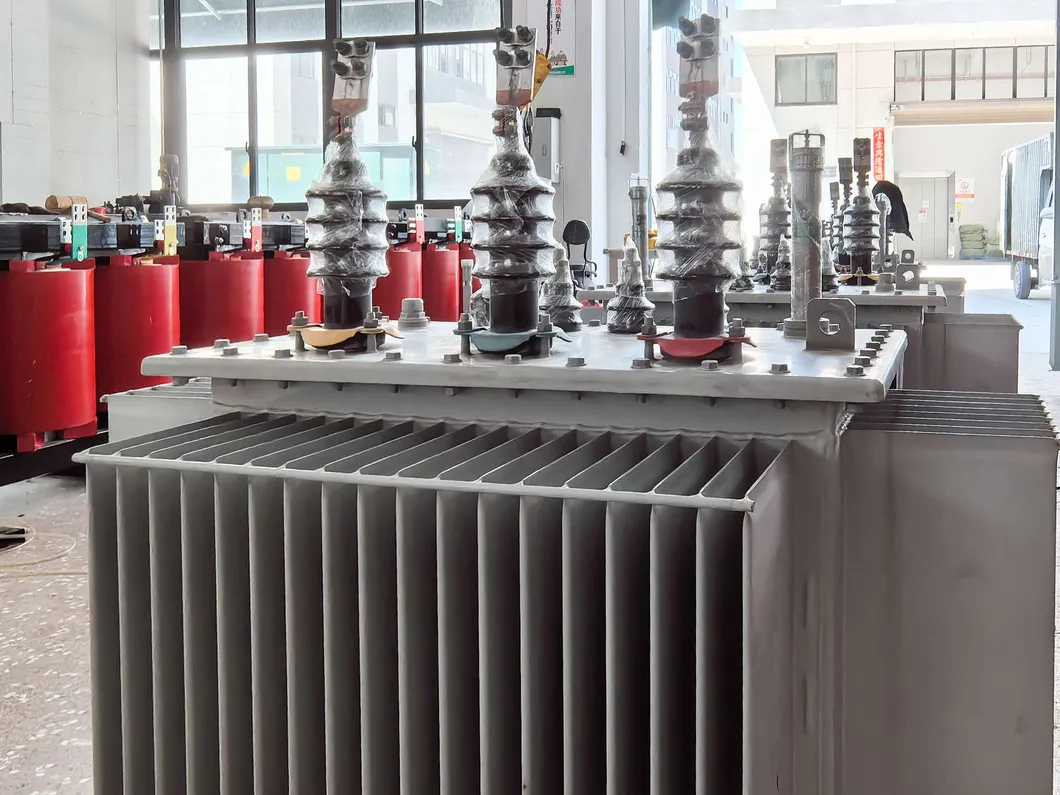

Equipped with sensitive relief valves and precise thermometers. Optional trip terminals with alarms and gas relays are available based on user requirements.

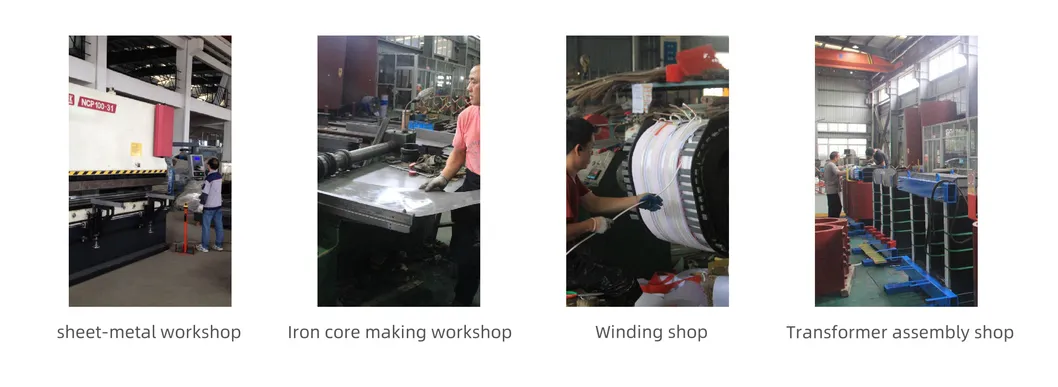

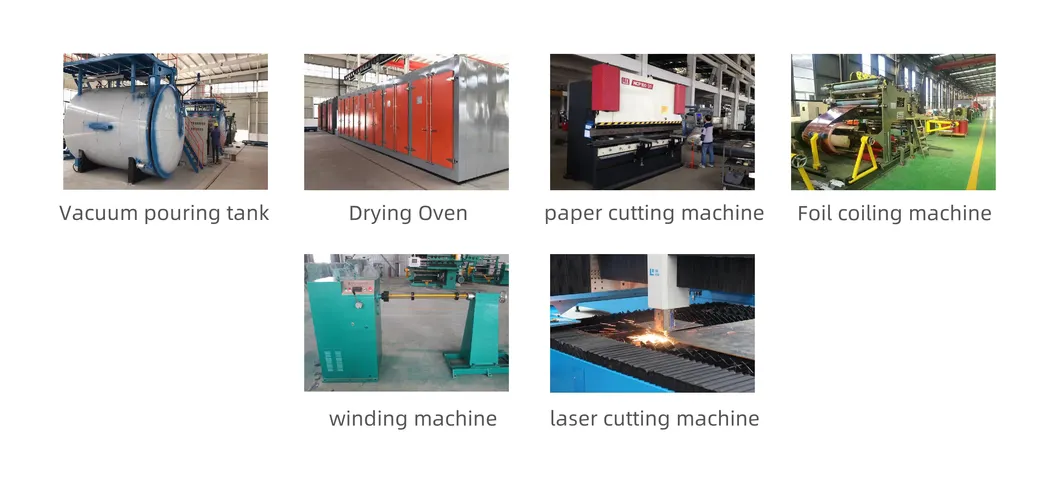

Our four specialized workshops handle diversified production, assembly, and testing. By controlling every manufacturing stage, we ensure high efficiency, safety, and cost-effectiveness for all transformer products.
