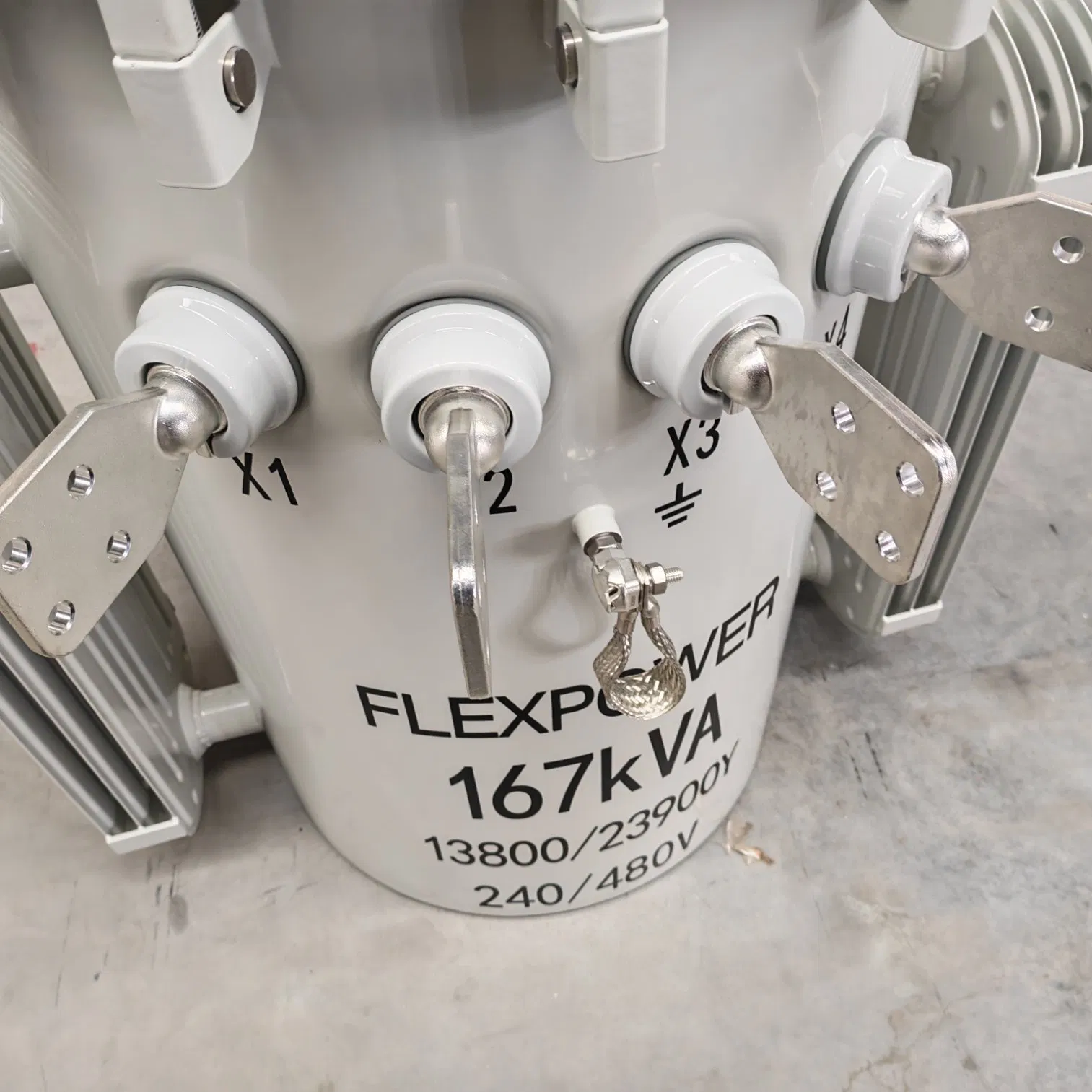

Single-Phase Oil-Immersed Pole-Mounted Distribution Transformer 50Hz 60Hz Factory Direct Pricing Global B2B Supply

Customization:	Available
Application:	Distribution
Phase:	Single

i

Basic Information

Model NO.

D11

Core

Core-type Transformer

Cooling Method

Oil-immersed Type Transformer

Winding Type

Two-winding Transformer

Certification

ISO9001-2000, ISO9001

Usage

Single-phase, Distribution, Pole-Mounted

Frequency

Power Frequency (50/60Hz)

Core Material

Silicon Steel

Winding

Copper/Aluminum

Input Voltage

13.2kv or Customized

Output Voltage

480V or Customized

Rated Capacity

167kVA, 250kVA or Customized

P

Packaging & Delivery

Package Size

120.00cm * 85.00cm * 110.00cm

Gross Weight

300.000kg

Transport

Wooden Case/Pallet

D

Product Description

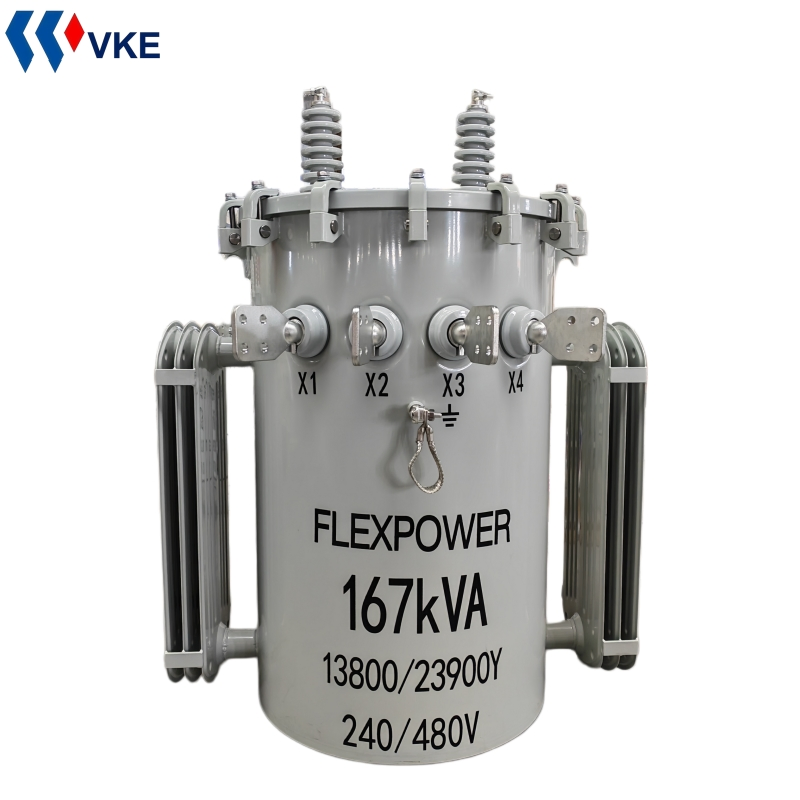

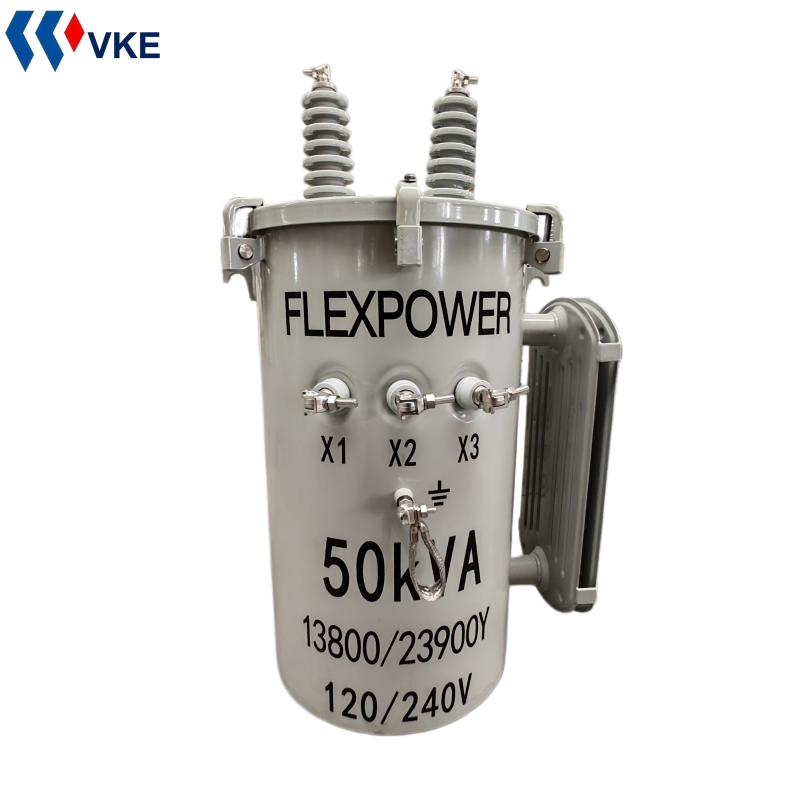

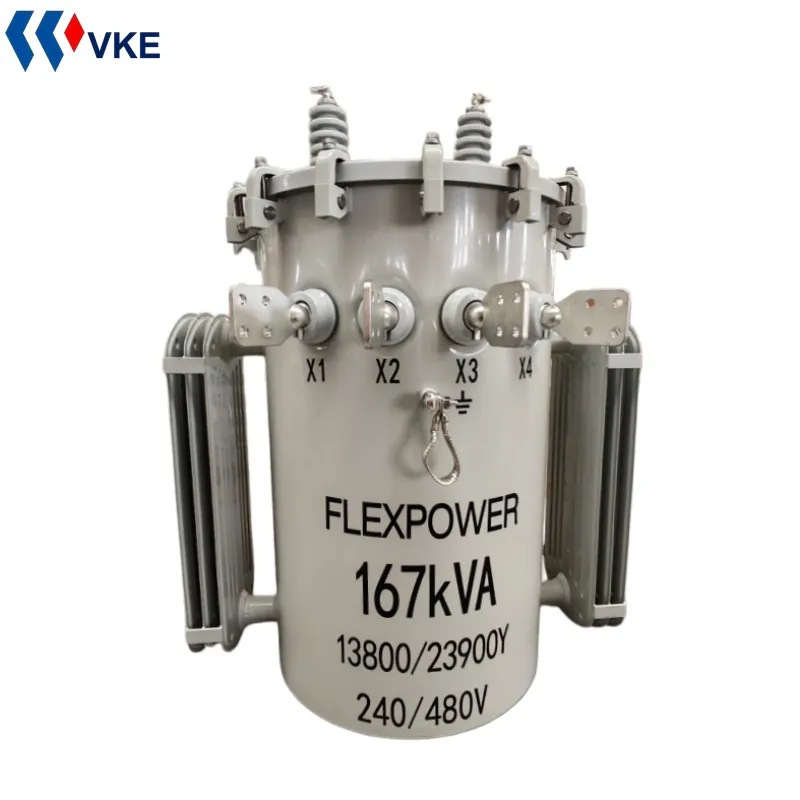

Pole Mounted Transformer

In a decentralized power distribution network, single-phase transformers have significant advantages as distribution transformers.

Reduces the length of low-voltage distribution lines and line losses.
Improves power supply quality significantly.
Efficient and energy-saving coiled iron core structure.
Small size with low infrastructure investment requirements.
Reduces low-voltage line loss by more than 60%.

Widely used for energy-saving renovation of column mounted distribution lines in railways and urban power grids.

S

Technical Specification

Rated capacity (kVA)	H.V.(kV)	L.V.(V)	No-load loss(W)	Load loss(W)
10	12 / 13.2 / 13.8 / 34.5	120 / 240 / 400 / 480	36	120
15			50	195
25			80	290
37.5			105	360
50			135	500
75			190	650
100			210	850
167			350	1410

I

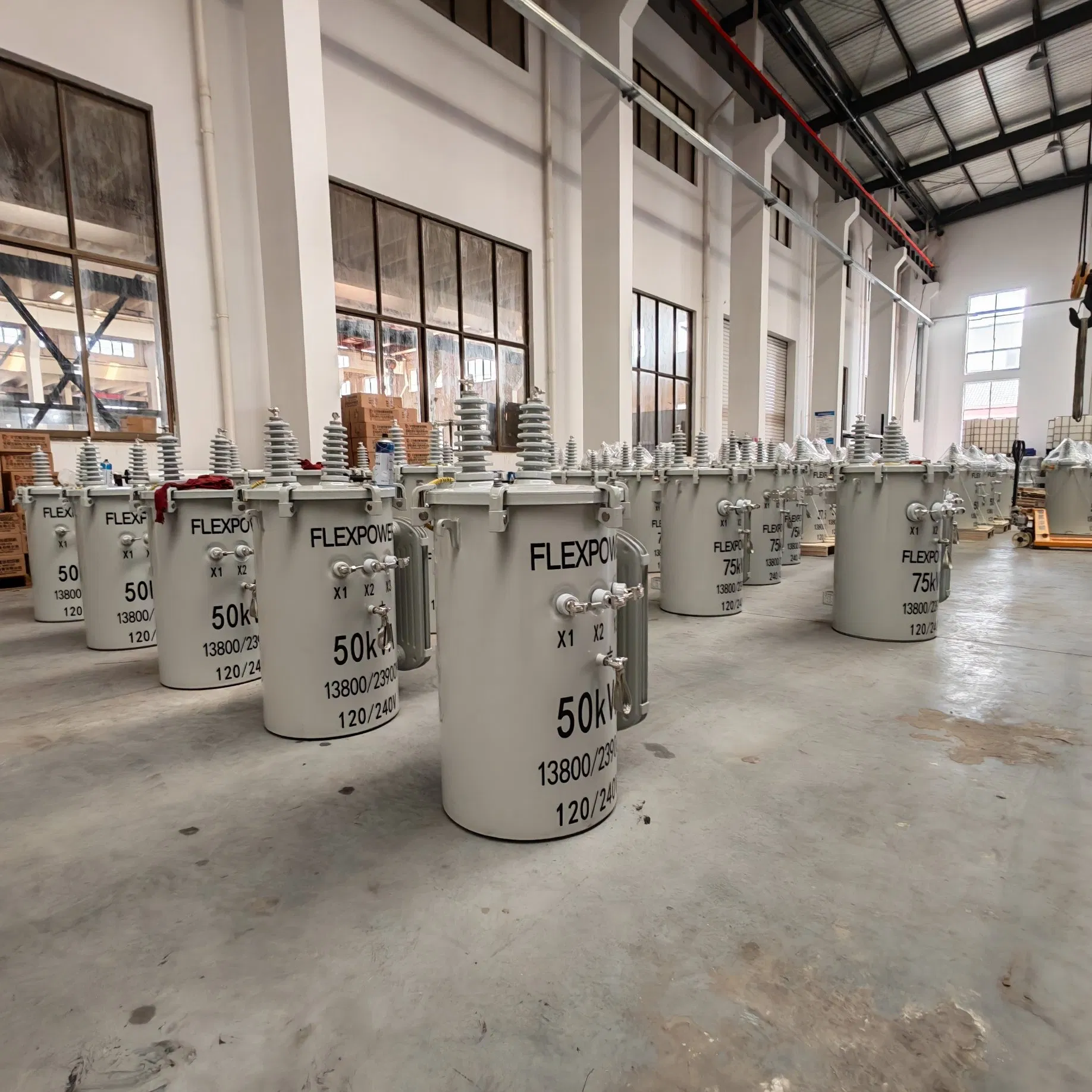

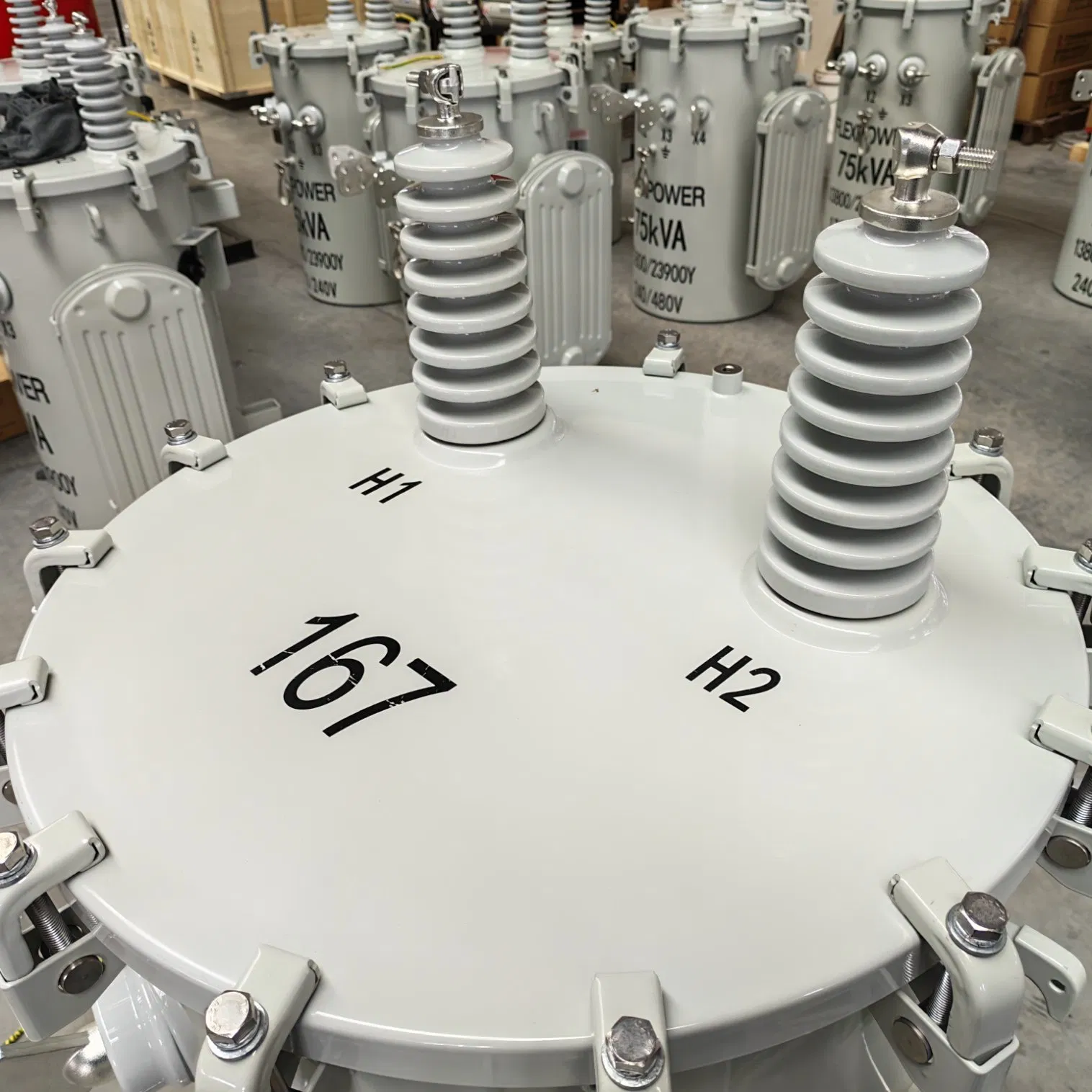

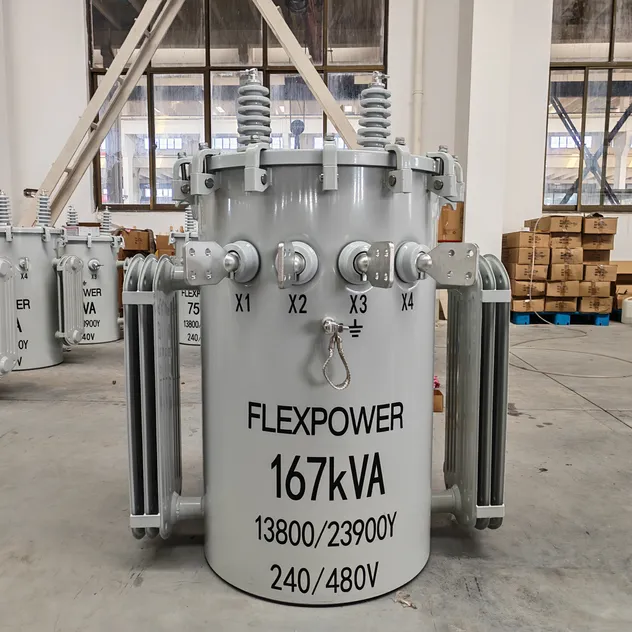

Details Images

C

Manufacturing Capability

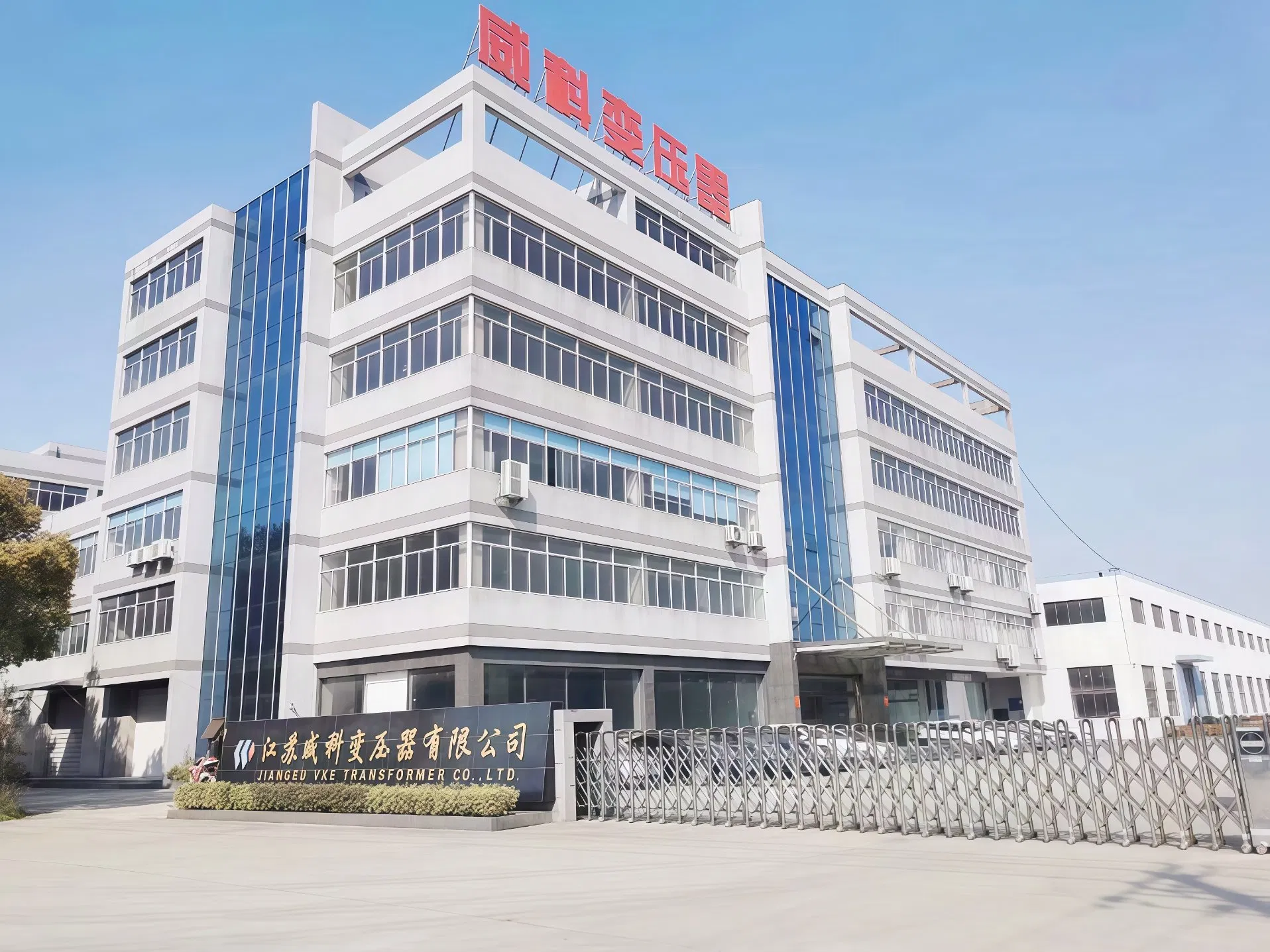

The facility was established in 2003 and has grown into a leading manufacturer of distribution transformers. With two manufacturing bases covering over 30,000 m², the facility operates three modern workshops to meet global customer demands.

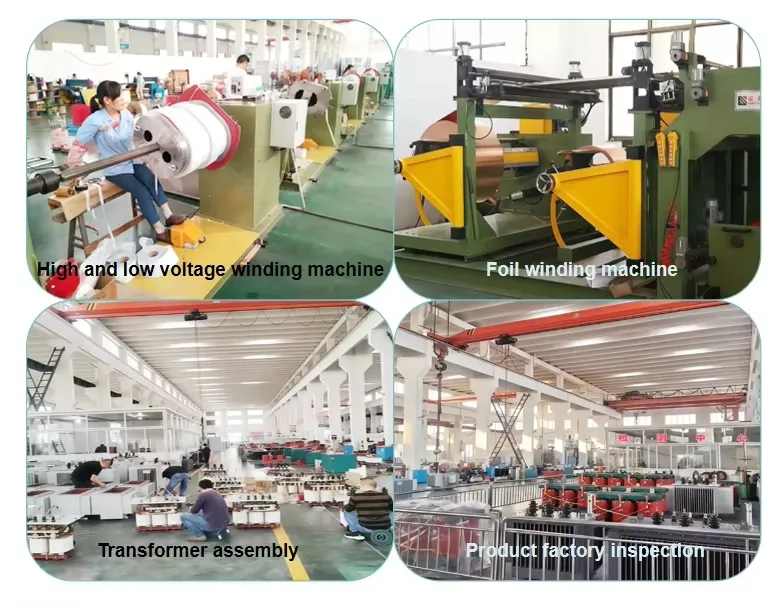

Factory Condition

Certifications

?

Frequently Asked Questions

Why choose this single-phase pole-mounted transformer?

It significantly reduces the length of low-voltage distribution lines, minimizes line losses by over 60%, and improves overall power supply quality. Its compact size also requires less infrastructure investment.

What international standards do your products comply with?

Our transformers are designed to meet major international standards including IEC, IEEE/ANSI, and CSA. The factory is also ISO9001, ISO14001, and OHSAS18001 certified.

Can I request a customized voltage or capacity?

Yes, we provide comprehensive OEM and ODM services. Input/output voltages and rated capacities (such as 167kVA, 250kVA, etc.) can be customized to your specific grid requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is generally 1-2 pieces. For highly customized projects, the MOQ may vary based on specific technical demands.

What core materials and cooling methods are used?

We utilize high-quality silicon steel for the core and offer both copper and aluminum winding options. The cooling method is typically ONAN (Oil-immersed natural cooling).

Can factory visits be arranged?

Absolutely. We warmly welcome visitors to our manufacturing bases. Please contact us in advance so we can arrange an itinerary that suits your schedule.
