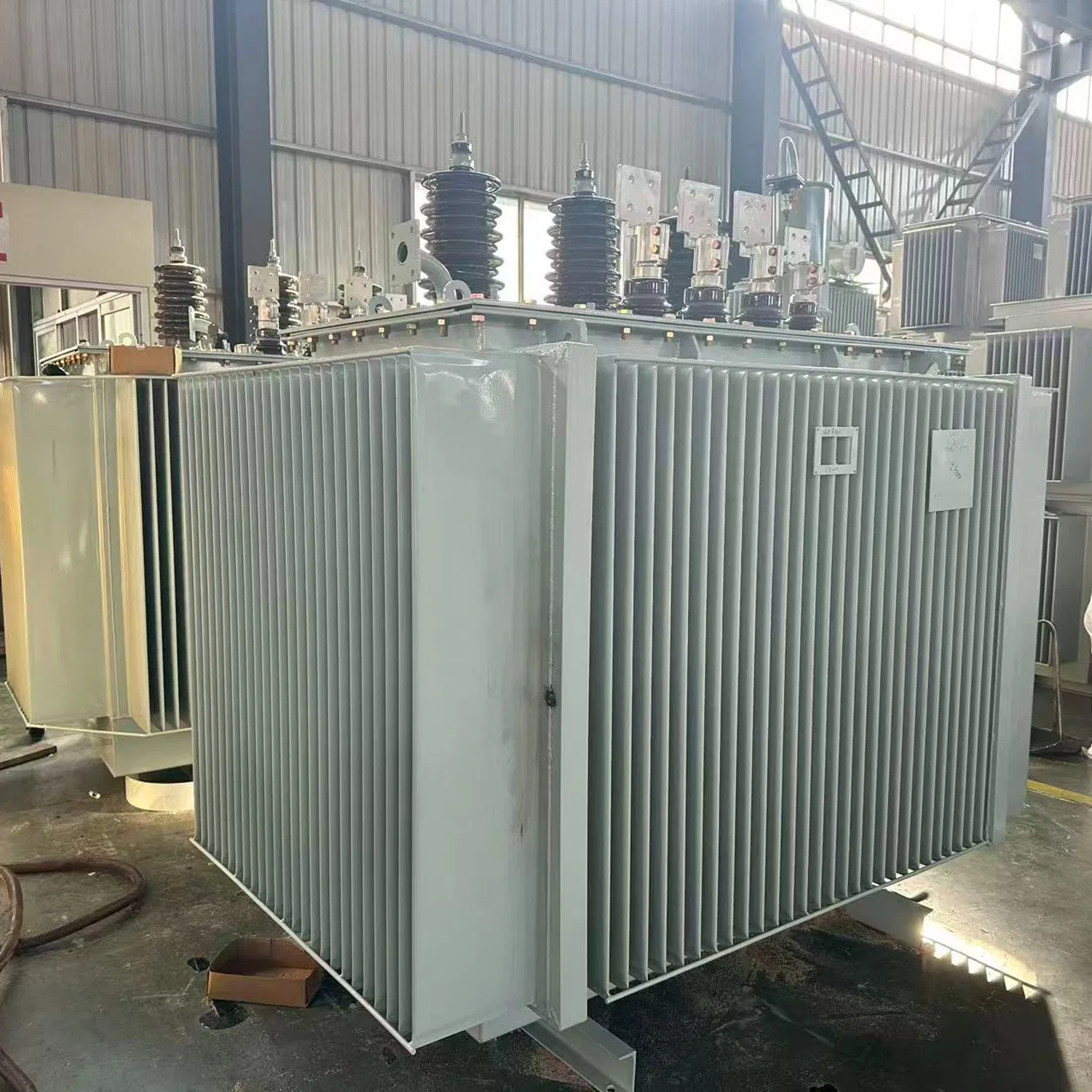

Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation
Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation
Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation
Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation
Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation
1 / 5
Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation
Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation
Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation
Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation
Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation

Bestselling New Products High Voltage Low Voltage Low Loss Step Down Transformer for Substation

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
10KV-36KV
Cooling Method
Oil-immersed Type
Winding Type
Two-winding
Certification
ISO9001-2000, CCC, CE
Frequency
50Hz / 60Hz
Rated Capacity
30kVA-2500kVA
Core Material
Silicon Steel Sheet
Heat Resistance
Grade F
📦 Product Description

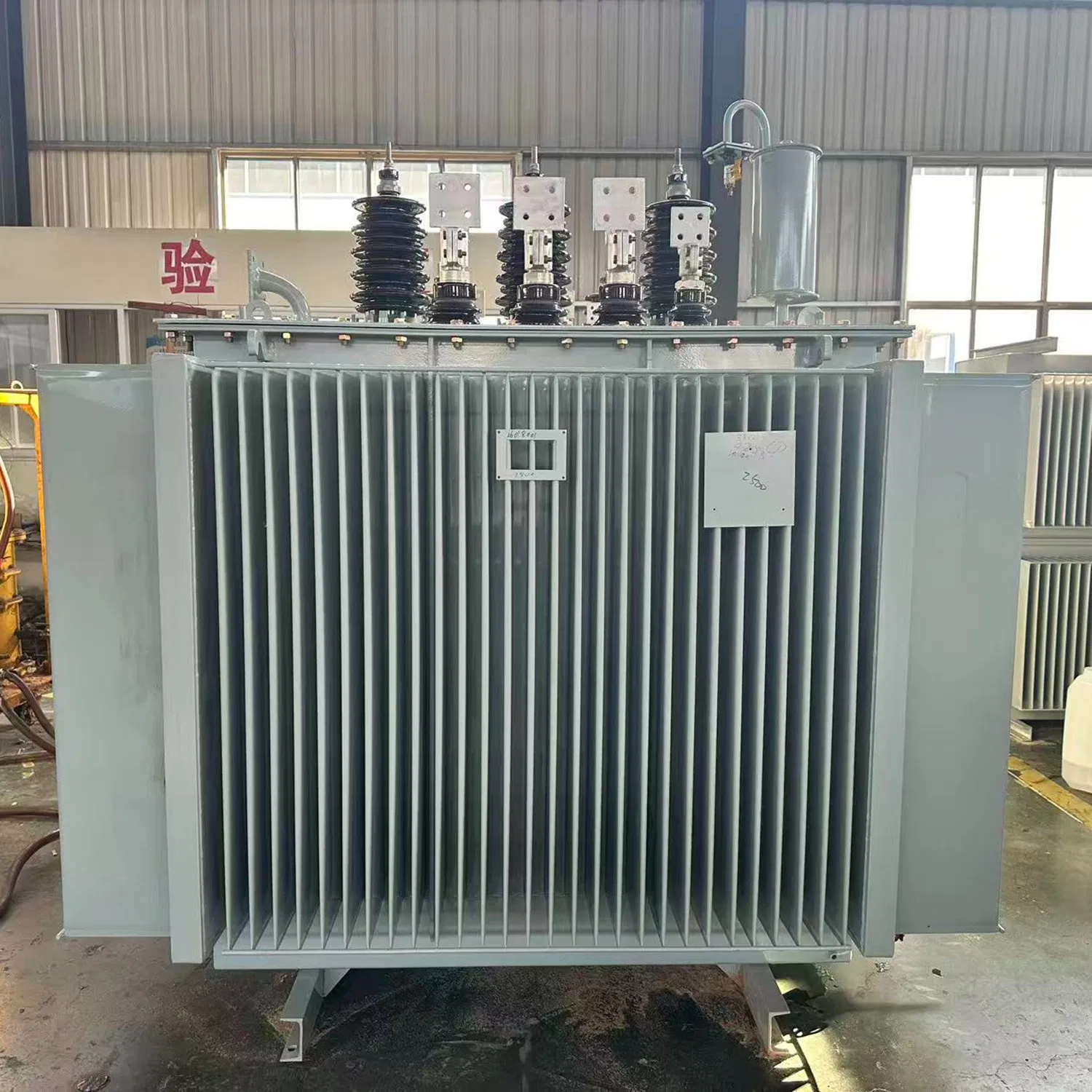

High Voltage Transformer
Oil Immersed Series Transformer

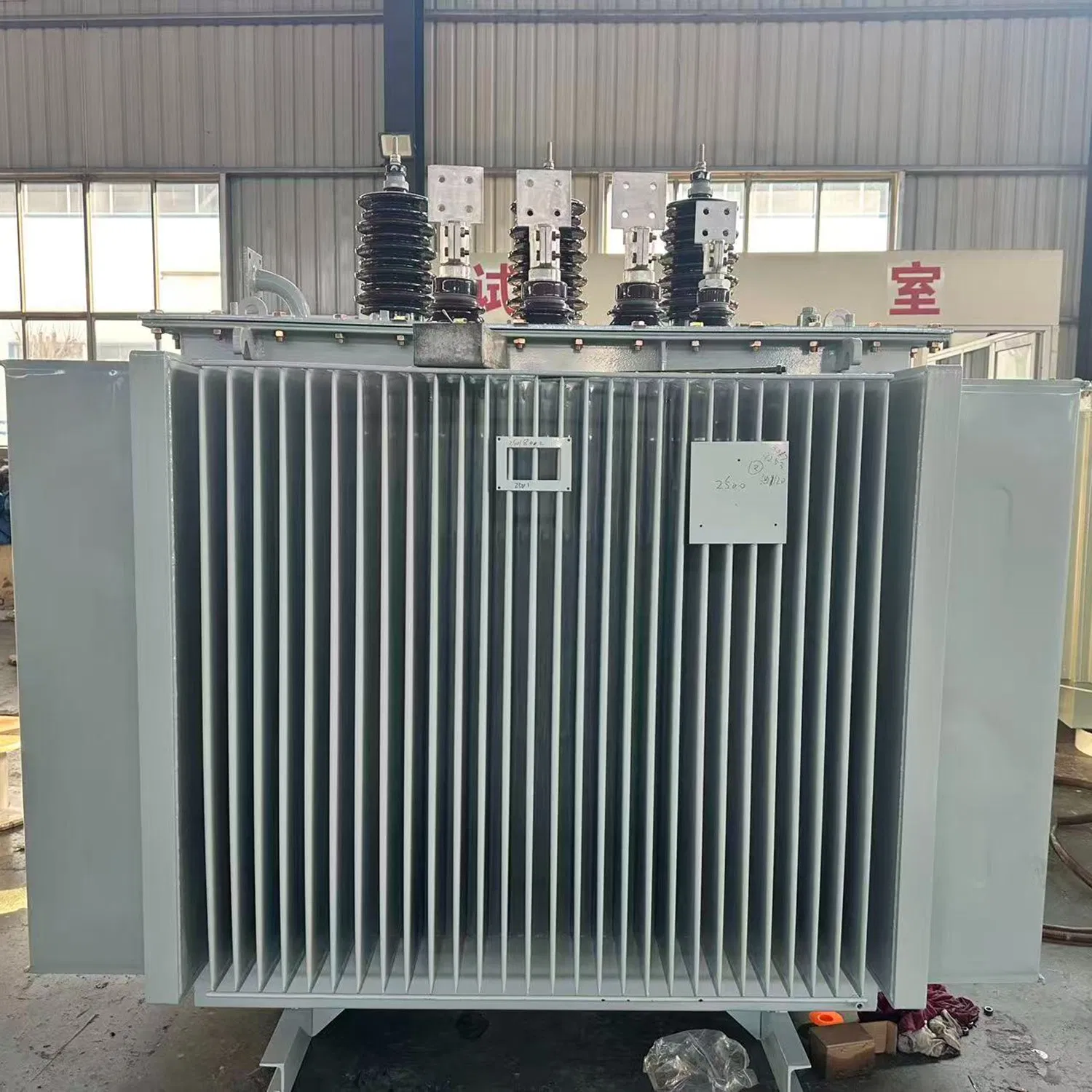

The fully sealed oil-immersed power transformer offers low loss, low noise, and high efficiency, ensuring energy-saving benefits and reduced pollution. Unlike standard oil-immersed transformers, it eliminates the oil conservator, using a corrugated tank's elasticity to adjust oil volume automatically. This design isolates the transformer from air, preventing oil and insulation degradation, enhancing reliability, and minimizing maintenance needs.

Power Capacity: 25-2500KVA
Voltage Level: 10KV to 36KV (Customizable up to 132kv)
Regulation: Off-circuit or On-load
Phases: Three or Single
Connection: Dyn11, Yyn0 (or as requested)
Ambient Temp: Up to 40°C
Transformer Details

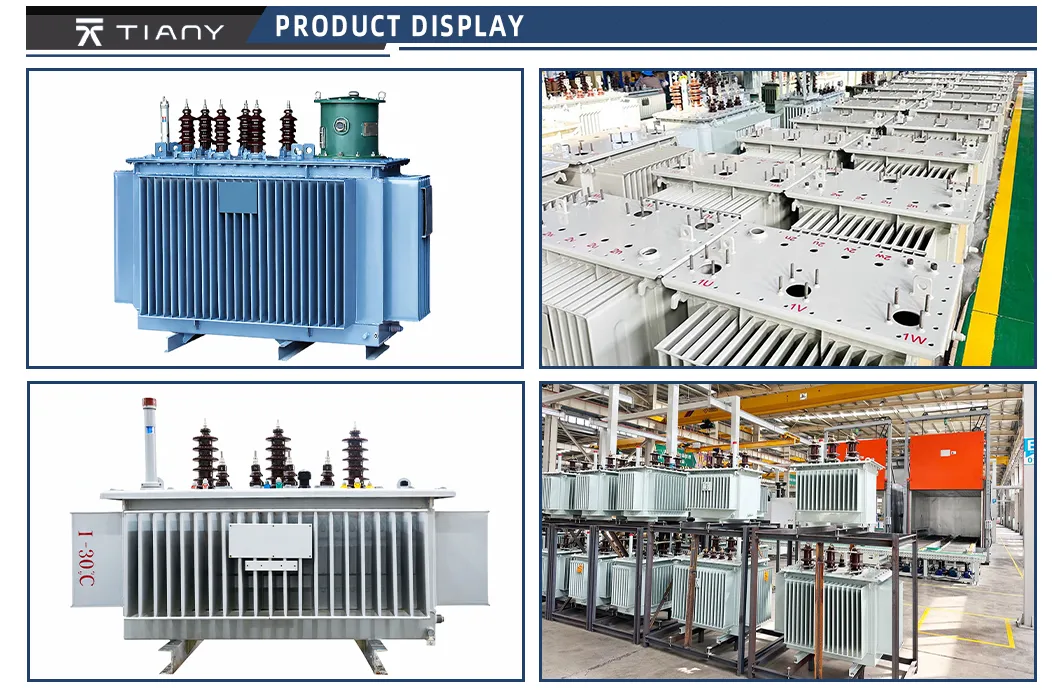

Substation Transformer
📊 Technical Parameters
Rated Capacity (KVA) Voltage Combination Vector Group No-load Loss (KW) Load Loss (KW) Short-circuit Impedance (%)
High Voltage (KV) Low Voltage (KV)
5010-200.4Dyn110.130.965.5
10010-200.4Dyn110.201.655.5
25010-200.4Dyn110.403.355.5
50010-200.4Dyn110.685.666.0
100010-200.4Dyn111.1511.336.0
250010-200.4Dyn112.3422.226.0
🏭 Production & Quality

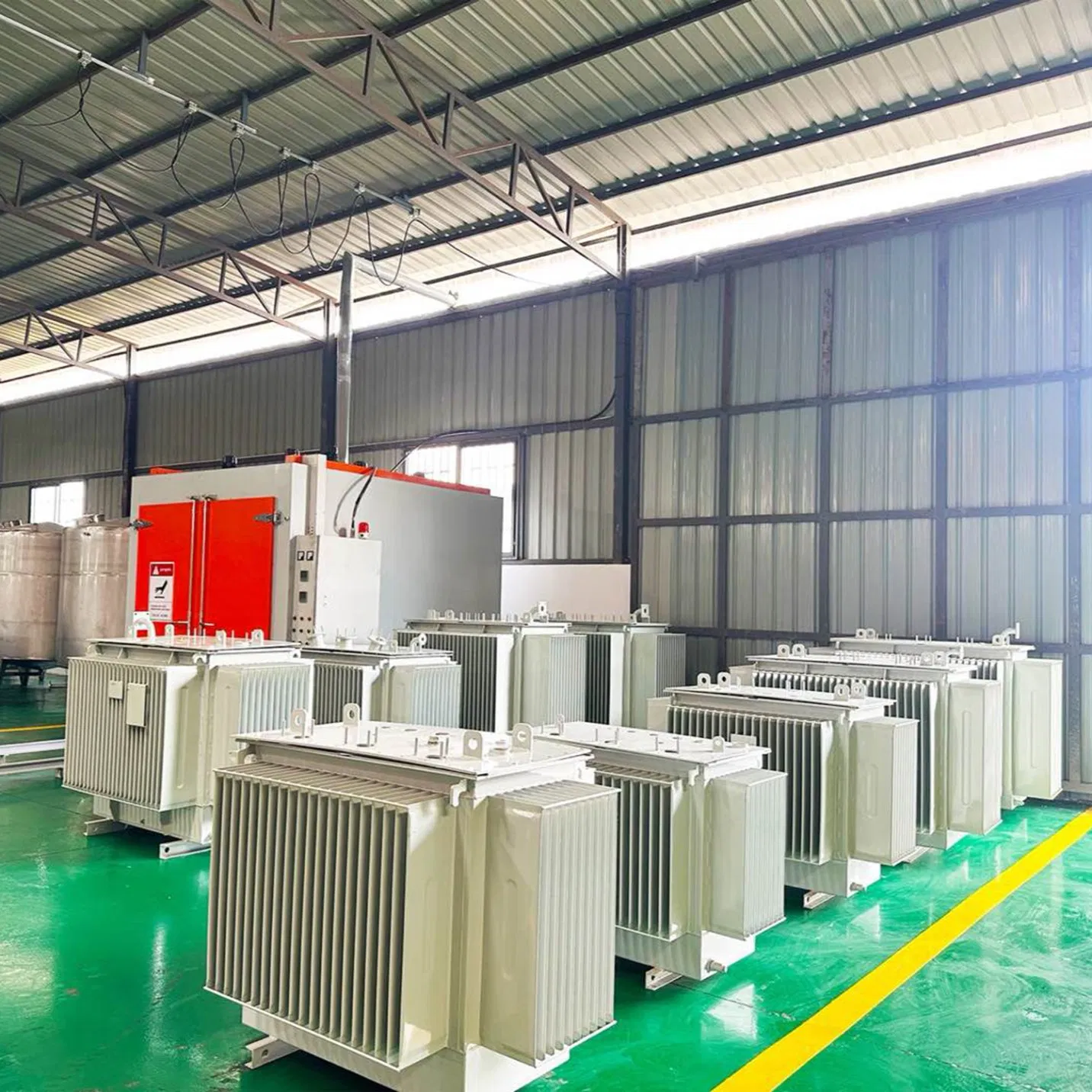

Manufacturing Process
Exporting Distribution
Global Reach
📜 Certifications & Logistics
Certificates
Packaging
Shipping
❓ Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with over 10 years of expertise in the substation and electrical equipment industry, specializing in transformers and high/low voltage switchgear.
Do you accept customized orders?
Yes, we offer full OEM/ODM services. You may provide drawings, technical parameters, or specific requirements, and our engineering team will develop tailored solutions.
What is your typical delivery lead time?
Standard equipment usually takes 15–30 working days. For large power transformers, the typical lead time is 80–90 working days depending on specifications.
What are your warranty terms?
We provide a 24-month warranty from the date of commissioning. We cover repairs and parts for any defects arising from design or manufacturing issues.
Do you provide after-sales installation support?
Yes, we offer remote installation guidance and can dispatch professional engineers for on-site support if required to ensure operational safety.
What is your minimum order quantity (MOQ)?
Our standard MOQ is 1 unit, allowing flexibility for trial orders and specialized projects.
