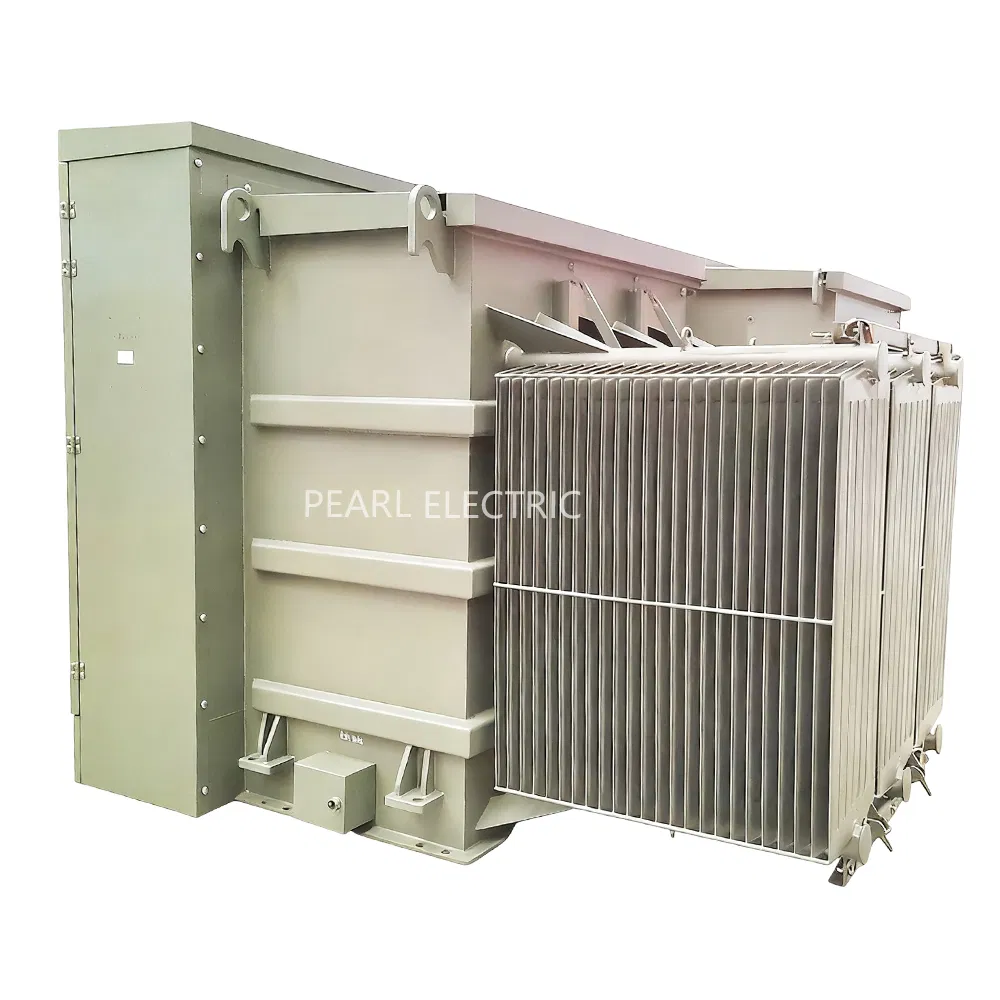

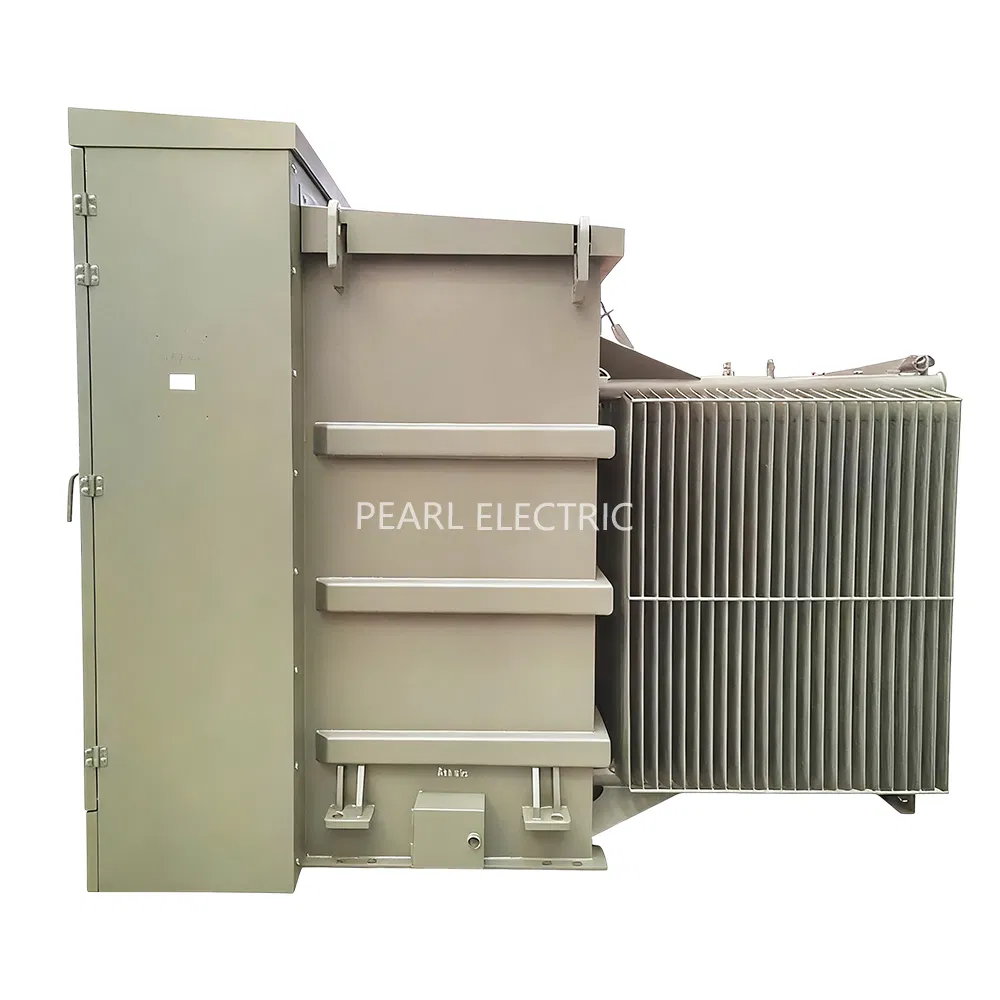

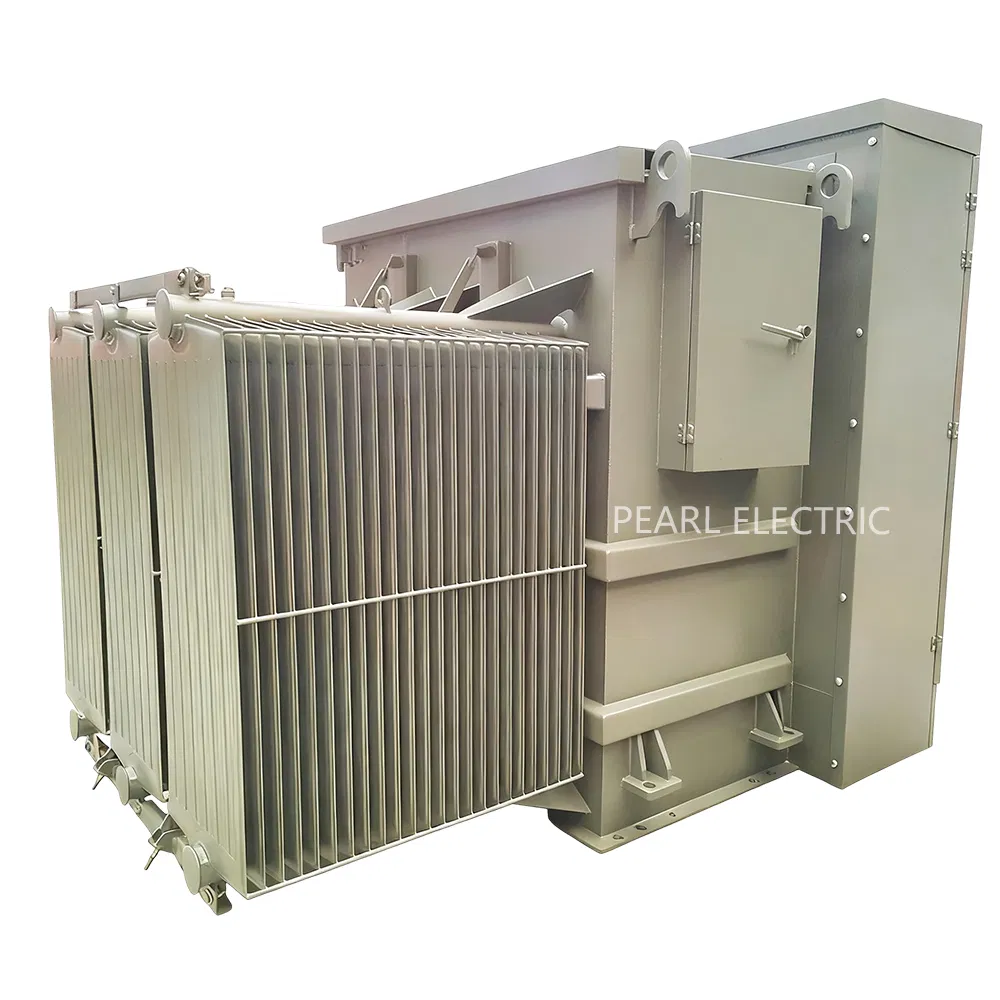

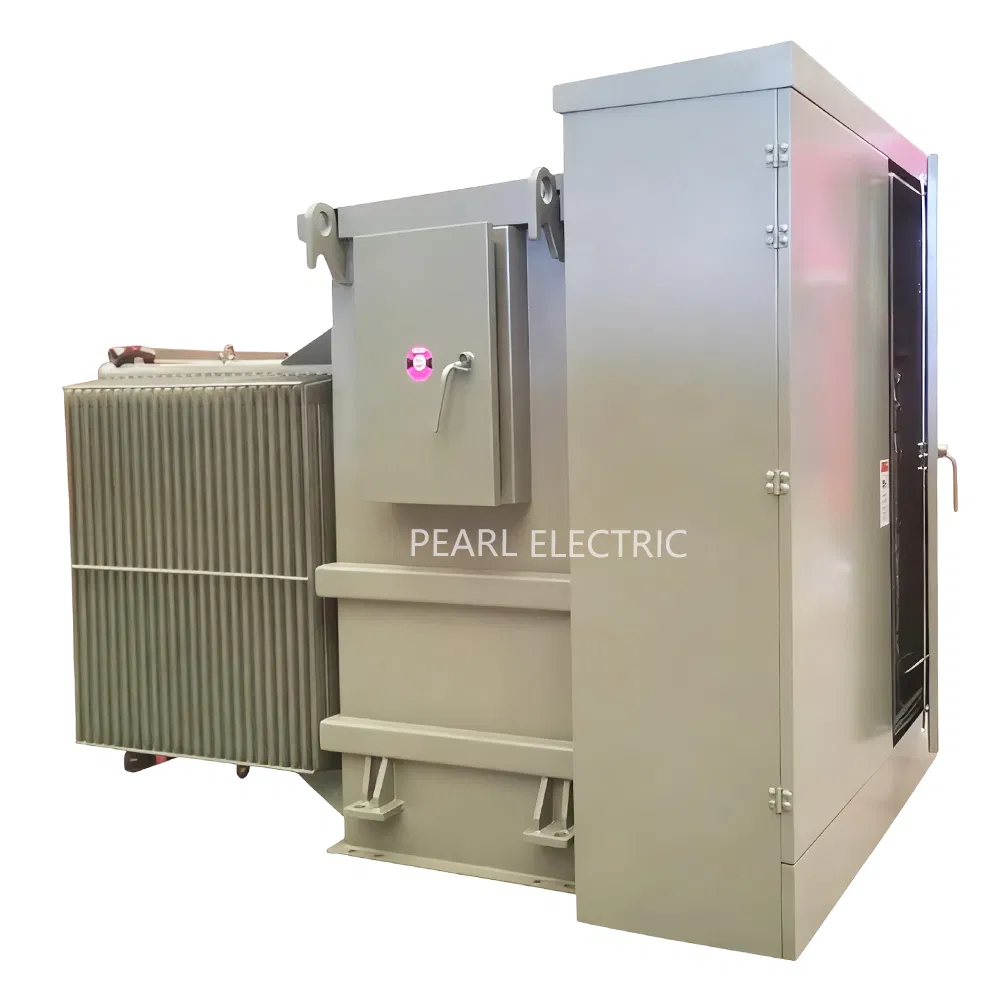

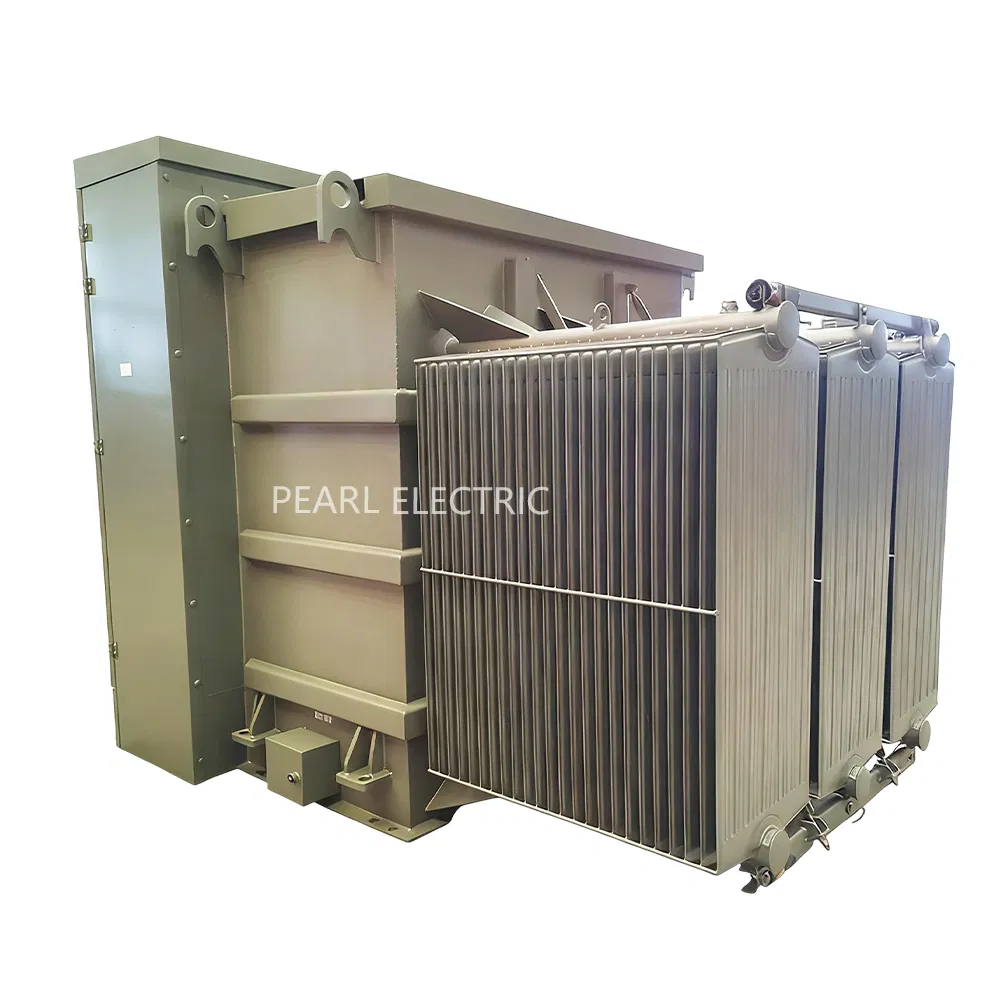

Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer
Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer
Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer
Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer
Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer
1 / 5
Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer
Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer
Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer
Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer
Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer

Customization Three Phase Low Loss Oil Immersed Prefabricated Substation Pad Mounted Transformer

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase: Three
Send Inquiry

Product Description

Basic Information
Model NO.PEZ-S-3500/33
CoreCore-type Transformer
Cooling MethodOil-immersed Type Transformer
UsageRectifier, Combined, Power, Distribution, Pad-mounted transformer
Capacity1000-10000kVA
Rated H. V.33kV
Rated L. V.0.4kV
Insulation LevelIEC Standard or customized
EnclosureIP54
Winding MaterialCopper
Insulation MediaMineral Oil, FR3 Oil, or Customized
Connecting WayDyn11
Product Description
Three Phase Pad Mounted Transformer

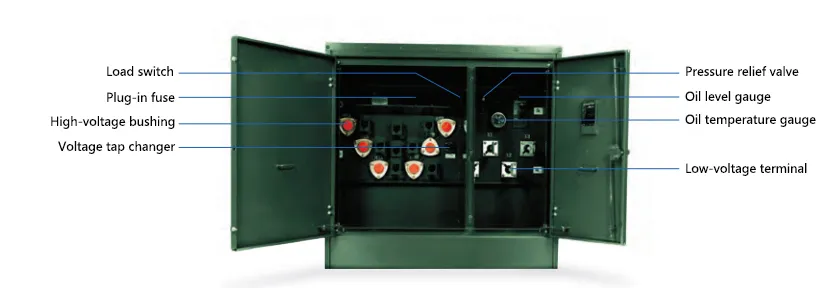

Pad-mounted transformer, also known as "American Type Substation Transformer", is a complete power distribution solution. It features a hermetically sealed tank housing the transformer active-part, HV load switch, protective fuses, and HV/LV connections. It is equipped with monitoring devices such as pressure gauges, oil-level indicators, and temperature sensors.

The new Pad mounted transformer utilizes FR3 oil and holds UL/IEEE/CSA design certifications. It features an advanced control system for intelligent operation and remote monitoring. Designed for efficiency, it offers low loss, compact size, easy installation, and minimal maintenance costs.

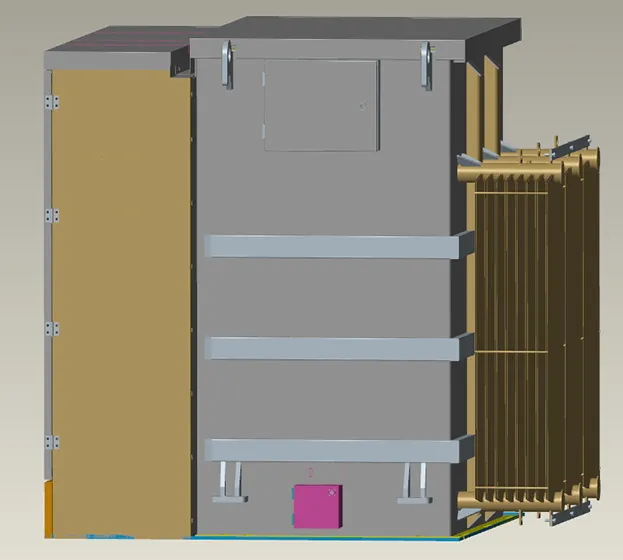

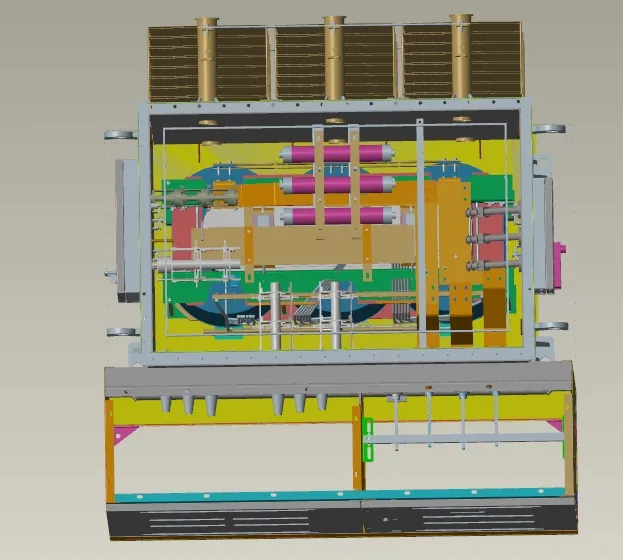

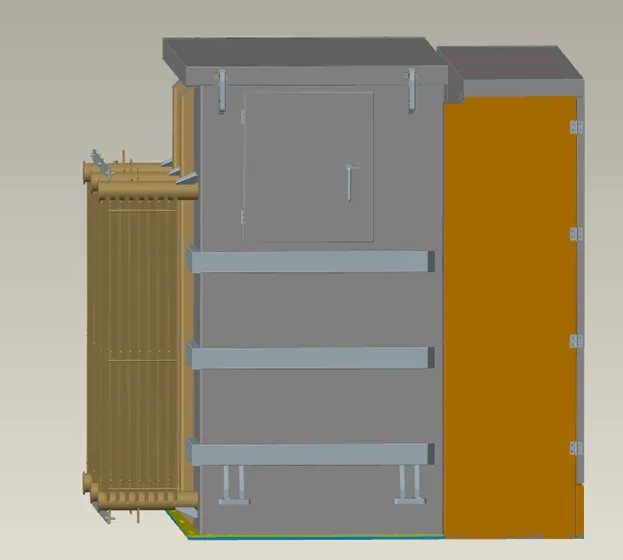

Transformer Details Transformer Details Transformer Details
Technical Specifications
CapacityUp to 10MVA
Frequency50Hz / 60Hz
Voltage (HV)Up to 34.5KV or Customized
Impedance10%-18%
Core MaterialsSilicon Steel / Amorphous Alloy
Winding MaterialsAluminum or Copper
Temperature Rise60/65K
Cooling methodONAN/ONAF
Main Product & Certifications

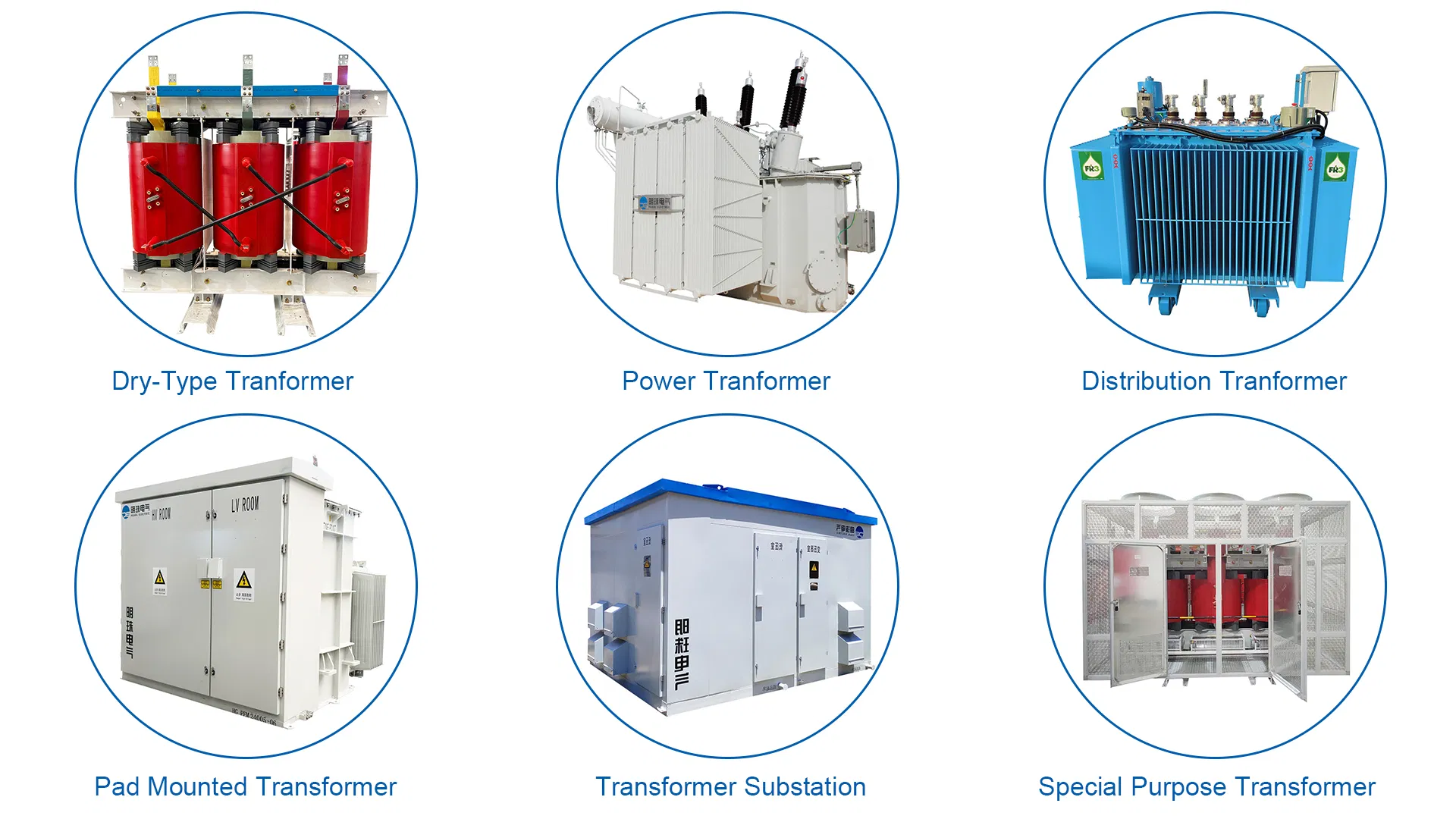

Main Products

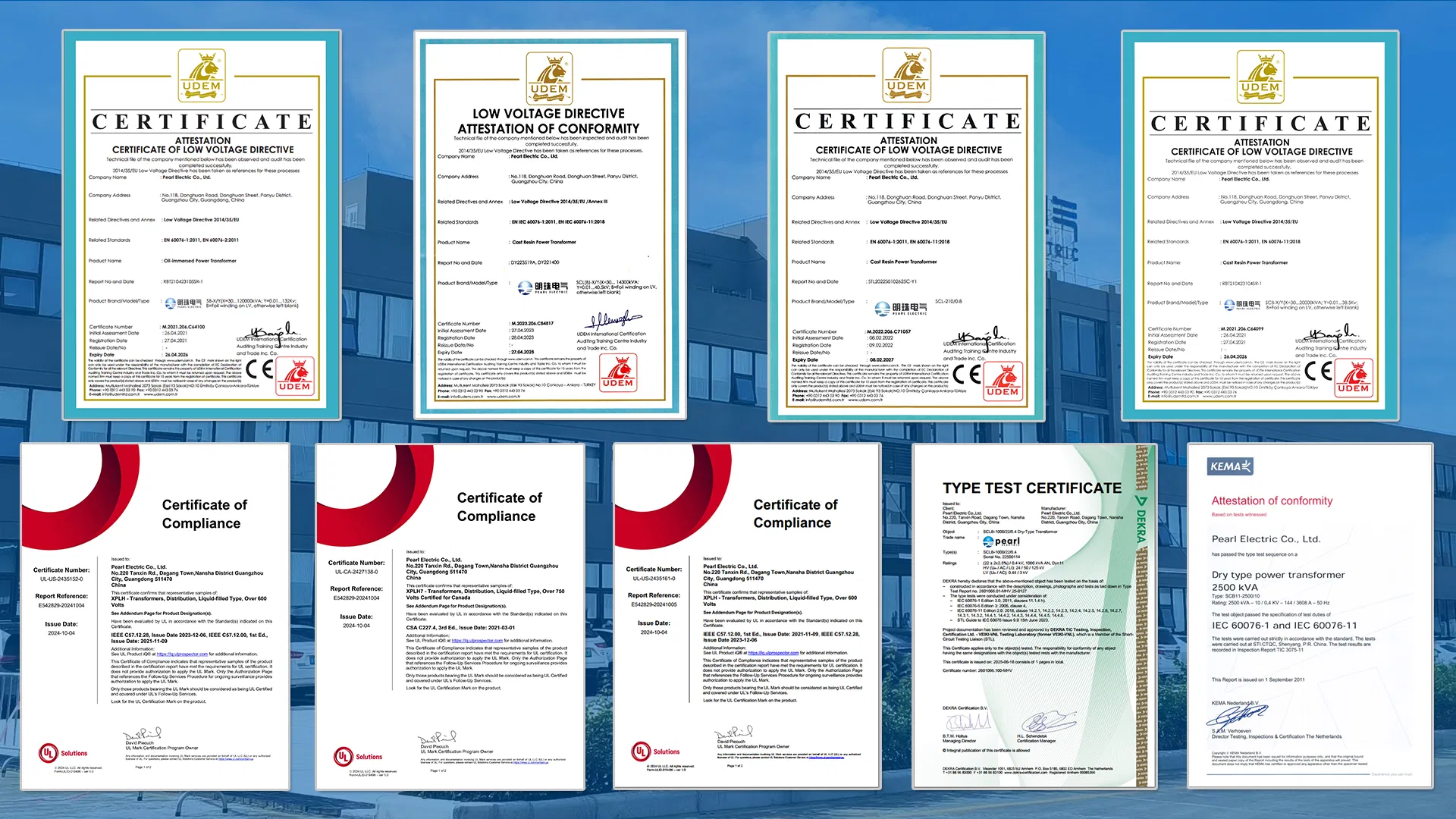

Certifications
Application Areas

This equipment is widely applied in industrial areas, residential neighborhoods, commercial centers, high-rise buildings, factories, mines, and ports. It is also an ideal choice for power grid renovation works and renewable energy projects like wind and solar farms.

Applications
Manufacturing Excellence

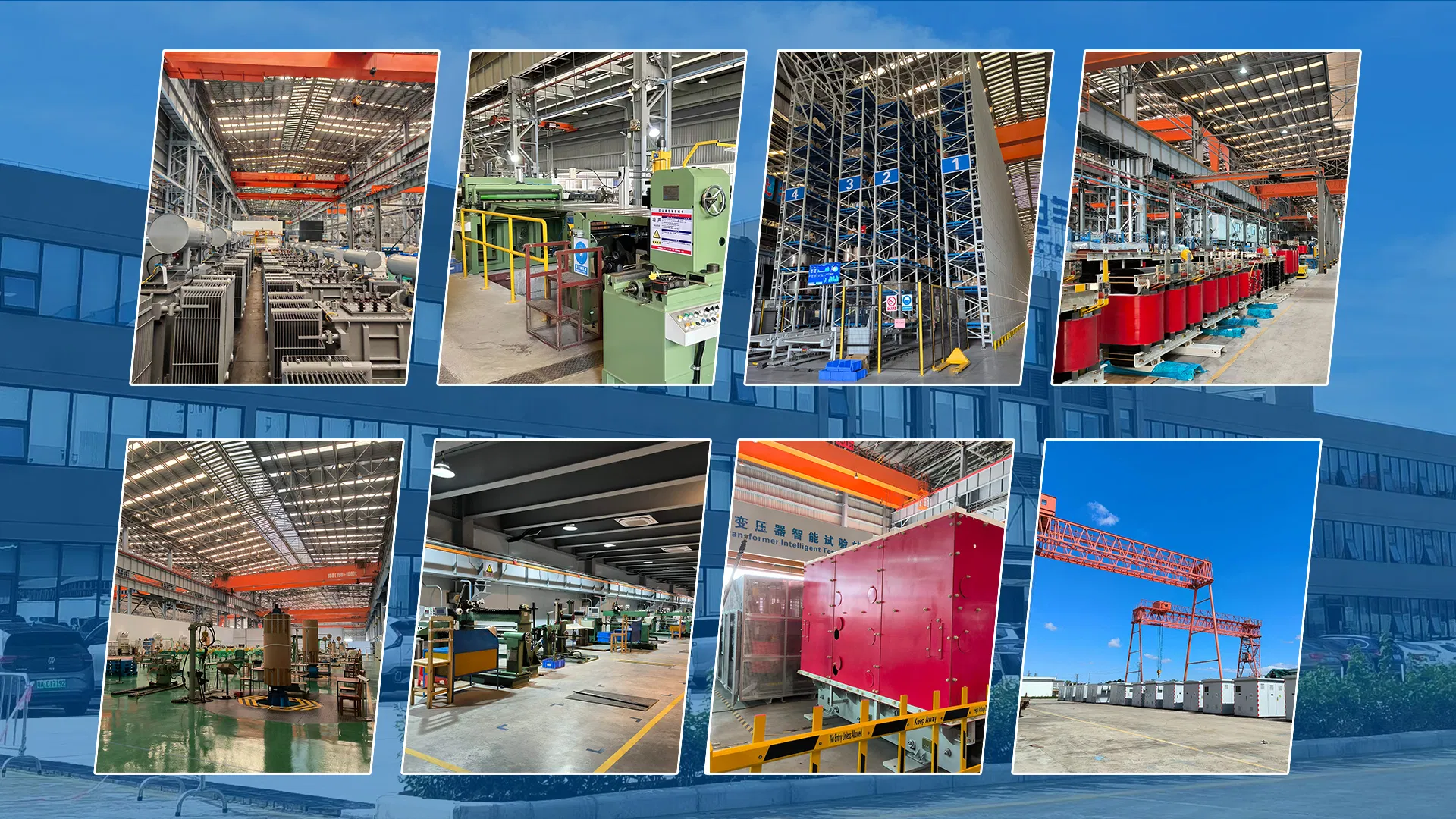

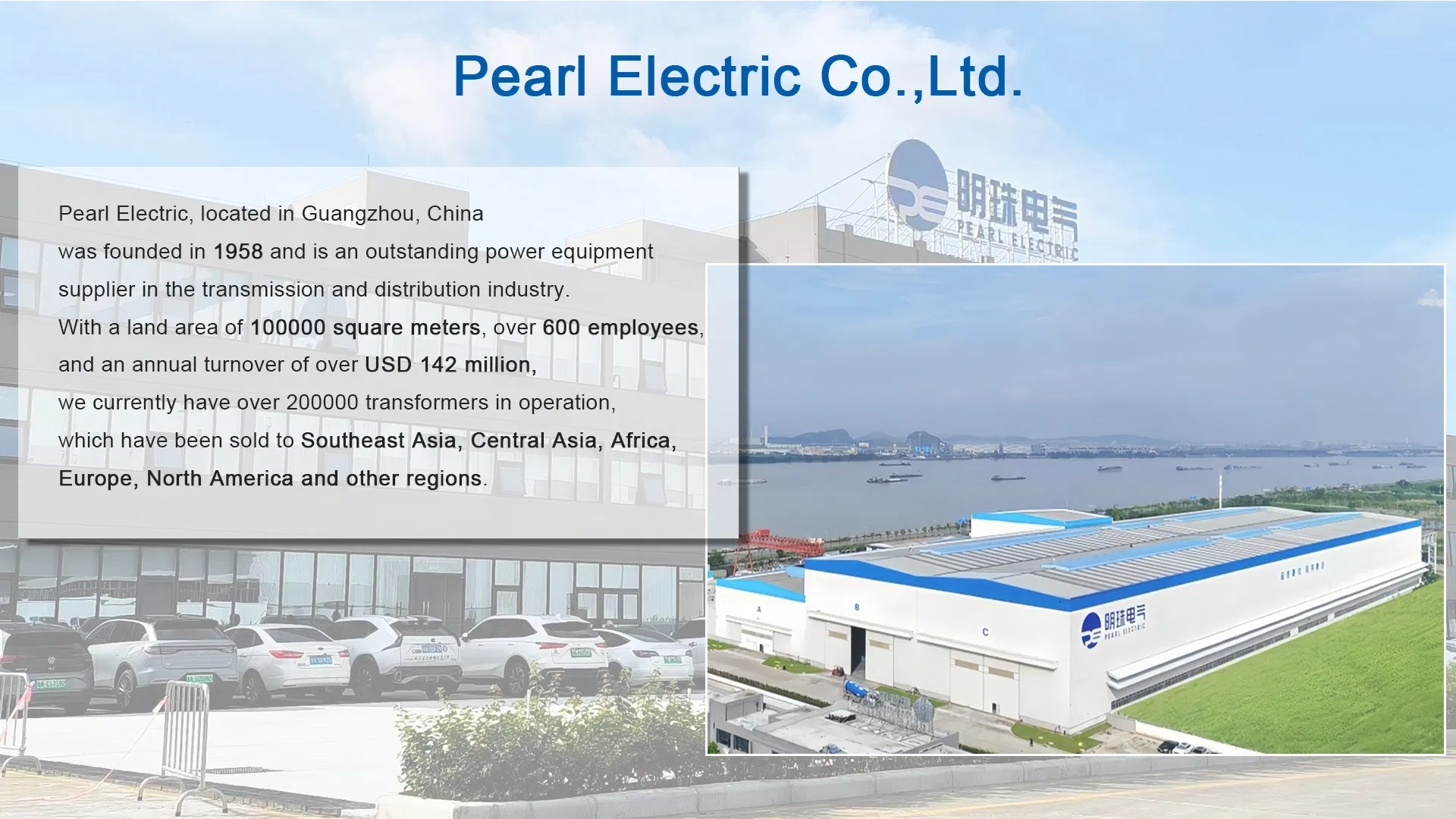

Production Facility Manufacturing
Customer Visit Global Cooperation Projects

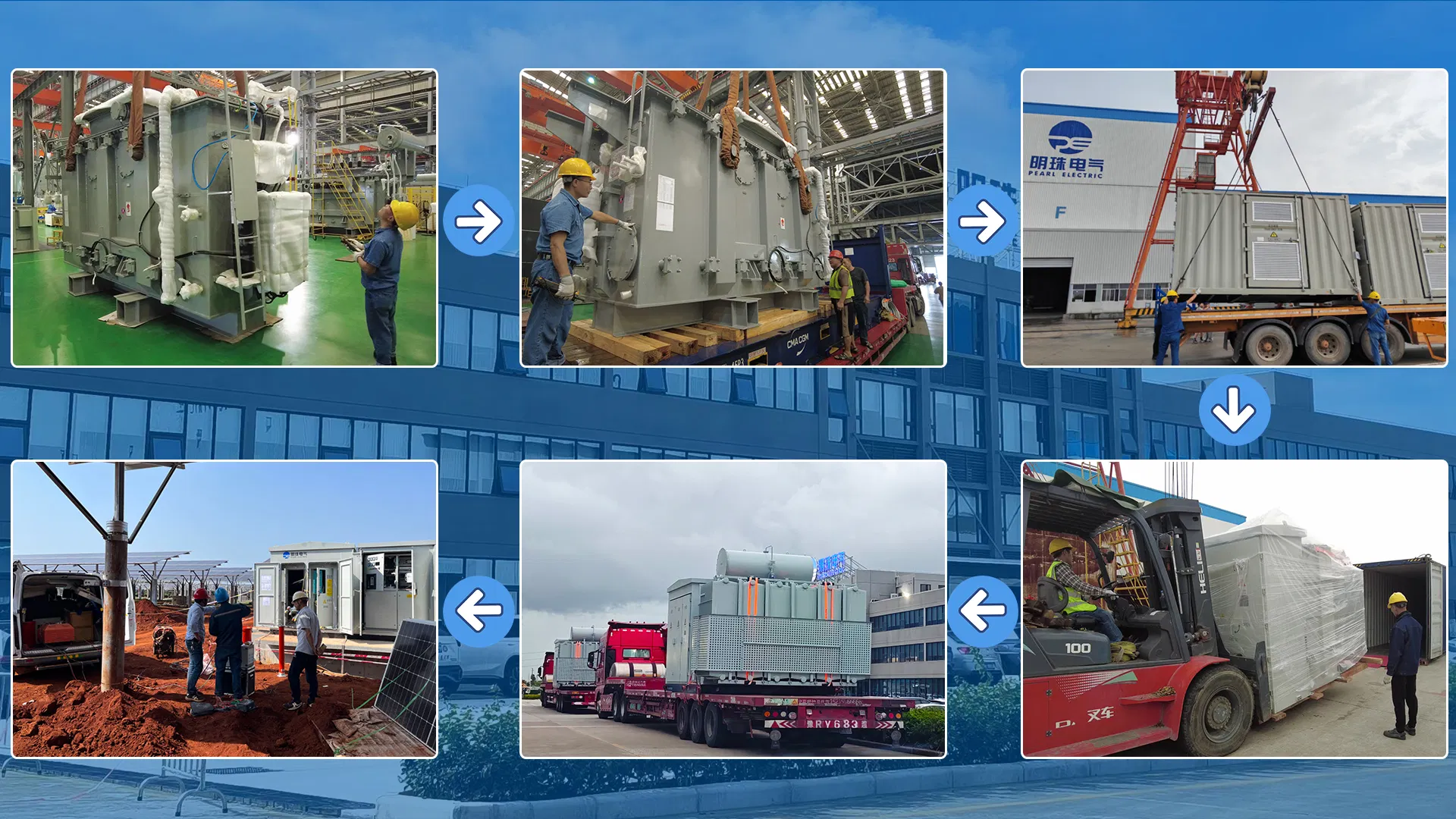

Packaging & Shipping
Packaging
Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a dedicated manufacturer specializing in high-quality transformer solutions with extensive production capacity.
What certifications do your transformers carry?
Our products have awarded CE, UL, and KEMA certificates, ensuring compliance with international safety and performance standards.
What are your standard payment terms?
We primarily accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) for our transactions.
What is the typical production lead time?
Generally, production takes approximately 4 to 6 weeks, depending on the specific model and customization requirements.
Can you provide customized technical specifications?
Yes, we can customize capacity, voltage levels, winding materials (Copper/Aluminum), and cooling methods to meet your project needs.
Do you support remote monitoring for your substations?
Our modern pad-mounted transformers can be equipped with advanced control systems that enable intelligent operation and remote monitoring.
