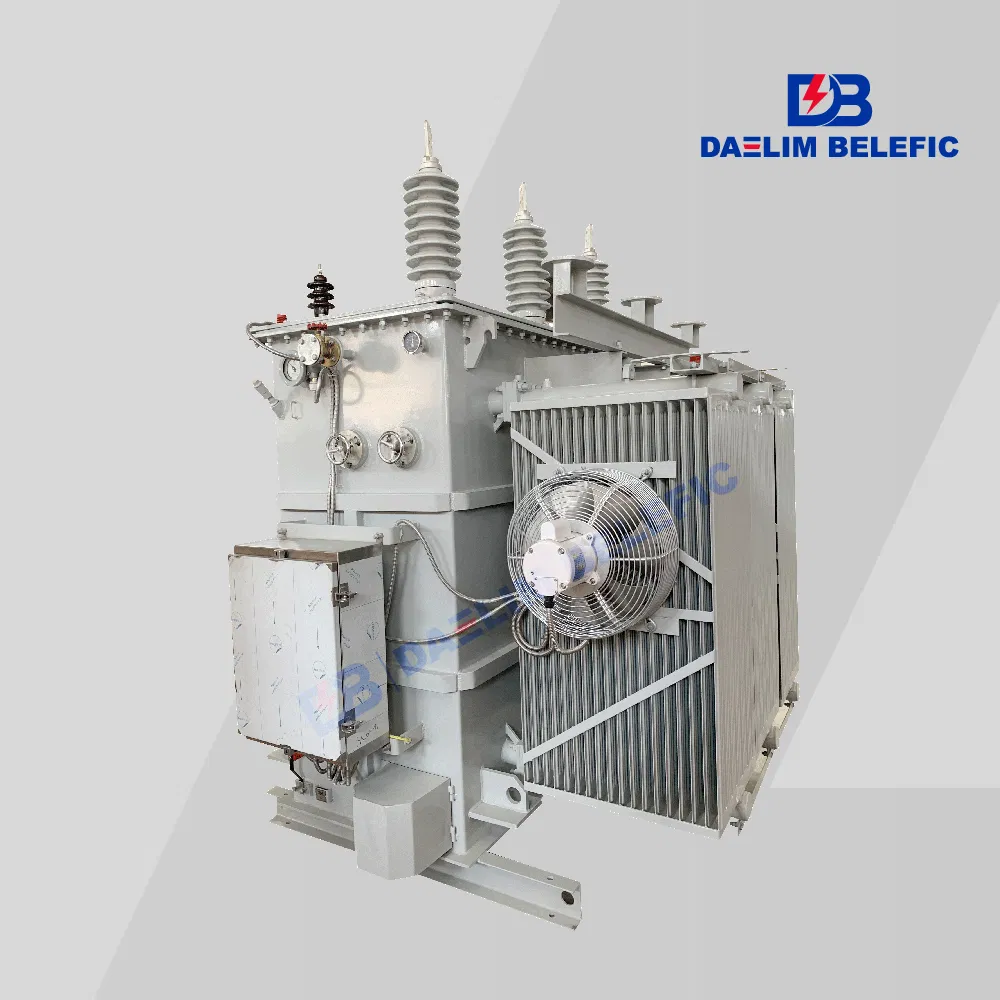

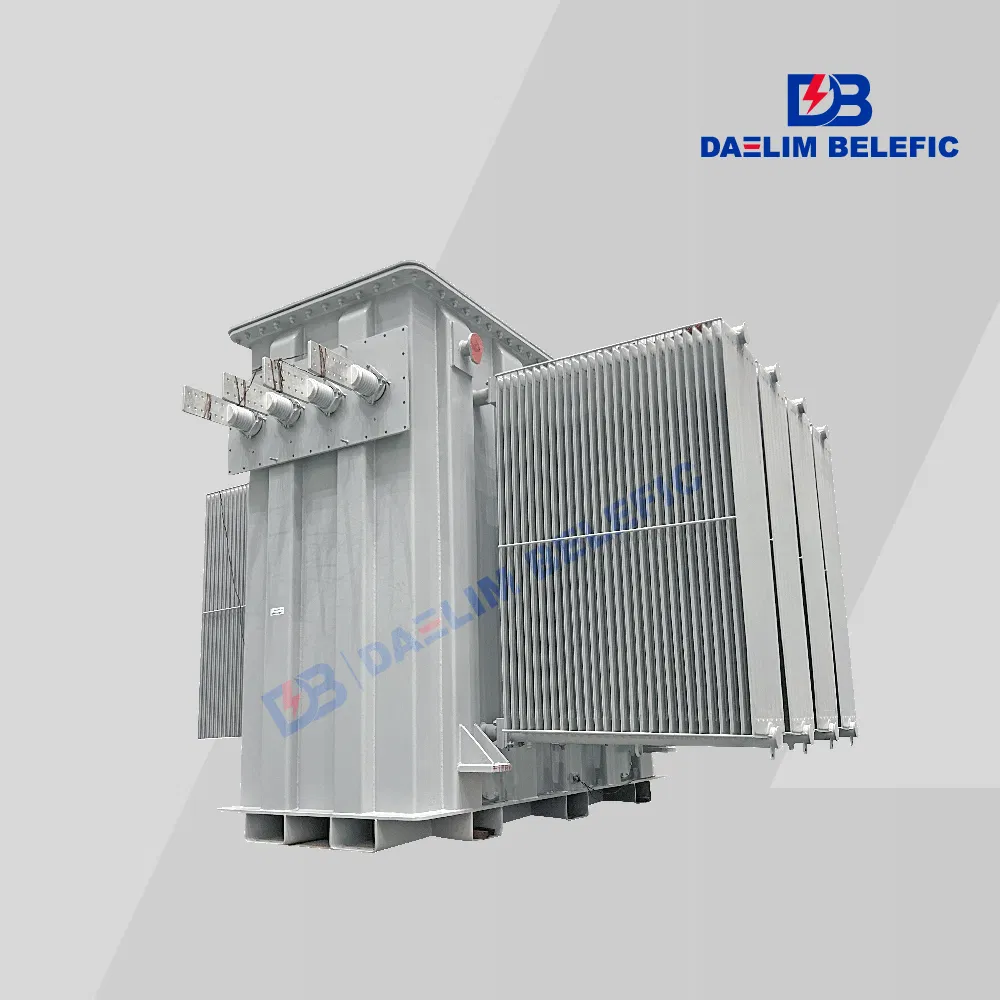

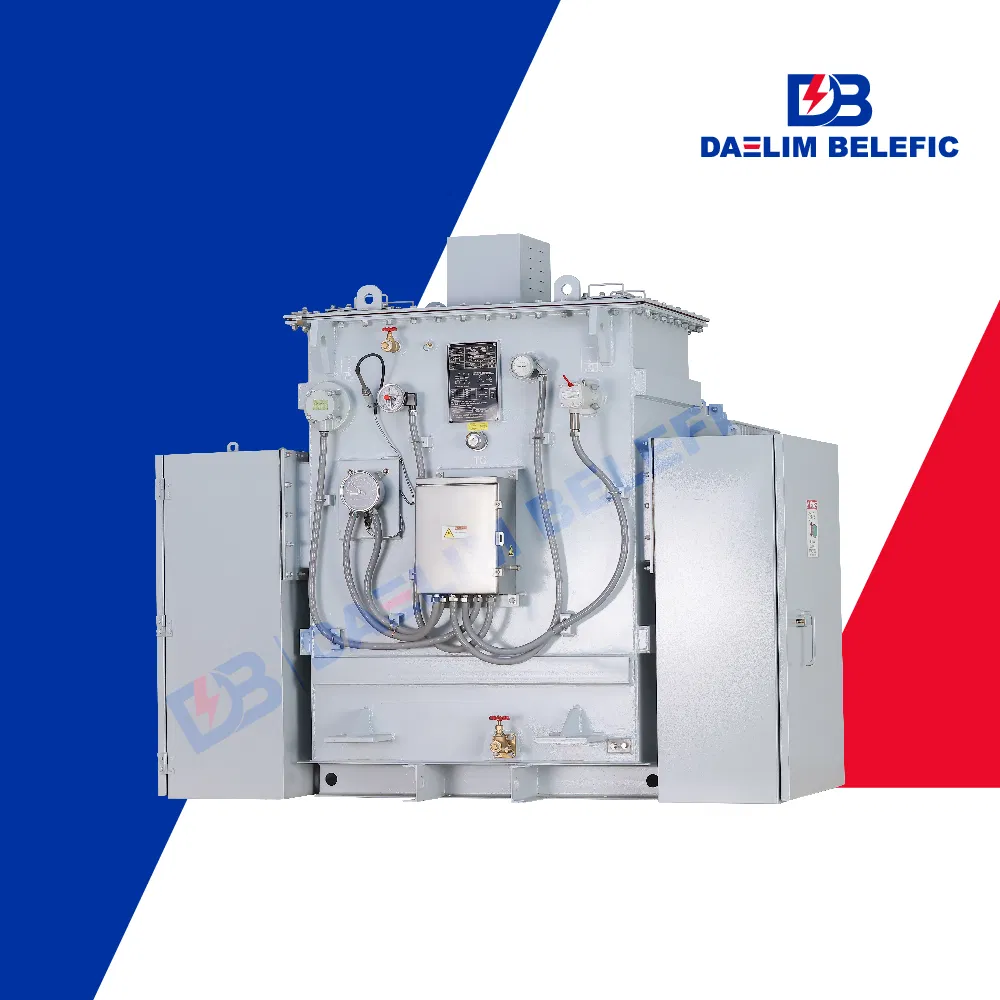

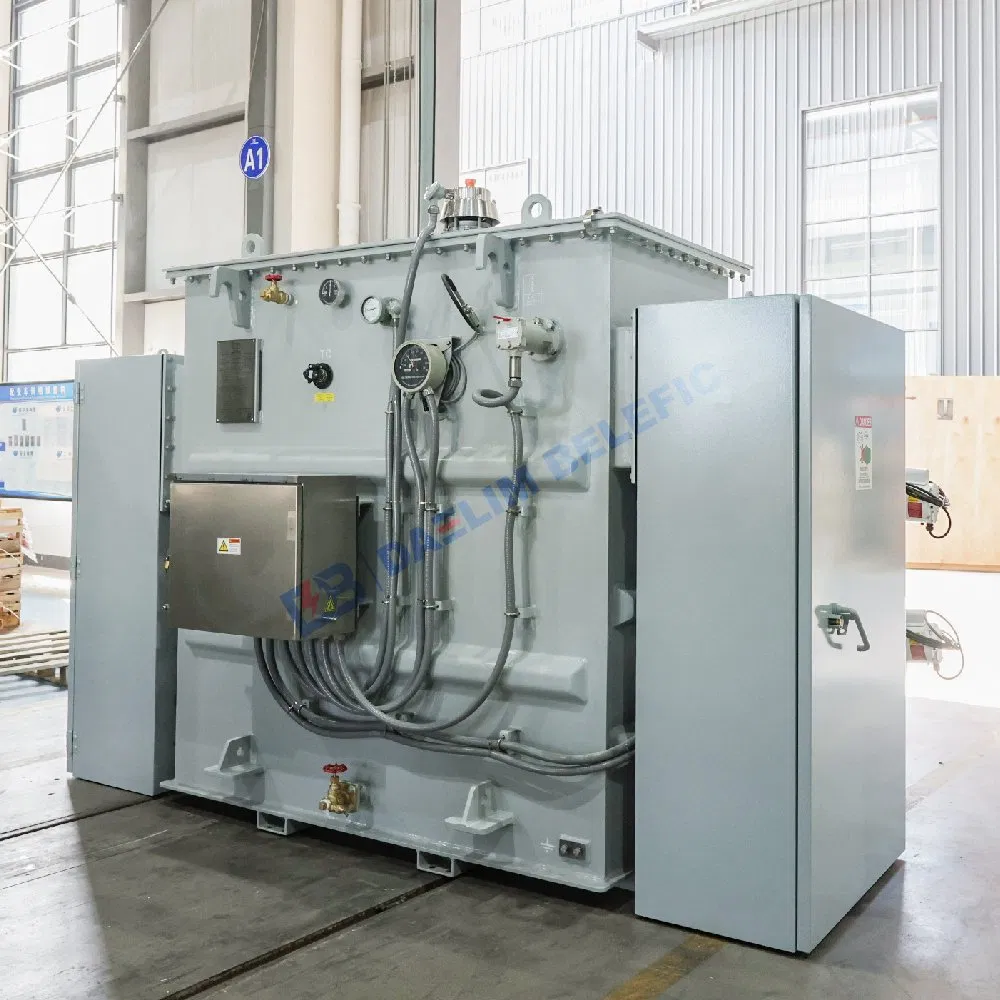

Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price
Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price
Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price
Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price
Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price
1 / 5
Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price
Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price
Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price
Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price
Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price

Transformador Daelim 15mva 5 Mva 1600kVA 1000kVA 500kVA 400kVA 44kv 35kv 25kv 15kv 12kv to 415V 480V Electric Small Power Substation Transformer Price

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
S
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001-2000, ISO9001, UL, cUL
Usage
Power Transformer, Distribution Transformer, Utilities/New Energy
Frequency
50/60Hz
Shape of Core
Stacked Iron Core
Product Name
1600kVA Distribution Power Transformer
Standard
IEC60076/IEEE/ANSI/AS/AZS/GOST
Type
Oil Immersed Transformer
Material
Copper/Aluminum
Warranty
2 Years
Rated Capacity
300kVA-20mva
Vector Group
Dyn11/Yyn0/Yd11/Ynd11
Oil Type
Mineral and Vegetable Oil
Power Substation Transformer
⚙️ Product Description

The three-phase oil-immersed small substation transformer is designed for use in power distribution systems. A substation is a critical component of a system that generates, transmits, and distributes electricity. Substations convert high to low voltage—or vice versa—and conduct a variety of other critical duties. Electricity may travel through many substations at varying voltage levels between the generating station and the customer. Transformers may be used in a substation to convert voltage levels between high transmission and low distribution voltages or to connect two separate transmission voltages.

Transformer Details
⭐ Key Features & Quality
1. Certifications
Professional transformer manufacturing customized to international standards: IEEE/ANSI, CSA, AS/NZS, IEC, EN 60076, GOST. Products carry UL/cUL, CSA, CESI certifications.
2. Quality Control
A rigorous quality control system covers every detail from design and raw material procurement to assembly, testing, and delivery. Regular inspections by UL third-party agencies ensure high standards are maintained.
3. Specialized Characteristics
  • High capacity handling for industrial and residential distribution.
  • High efficiency design to minimize energy losses.
  • Multiple cooling methods: Oil-immersed, Air-cooled, or Water-cooled.
  • Reliable insulation materials and advanced manufacturing.
  • Integrated overload and short-circuit protection.
  • Fully customizable input/output voltages and sound levels.
📊 Technical Parameters
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Connection Symbol Impedance (%) No-load Loss (W) On-load Loss (W) Weight (KG)
80012.0 - 44.0 or others208/210 - 13800 or othersDyn1, Ynyn0, Dyn11, Dd0, Ynd112.7 - 6.098093502050
10002.7 - 6.01160115002450
16002.7 - 6.01660166003400
25002.7 - 6.02450196004750
50002.7 - 6.04500270009500
100002.7 - 6.085003550015800

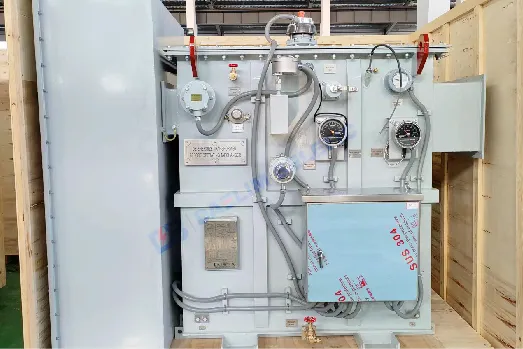

Substation Transformer 1 Substation Transformer 2

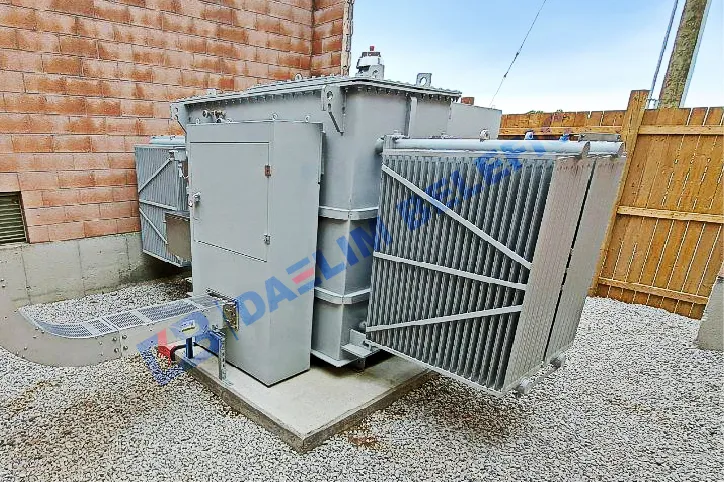

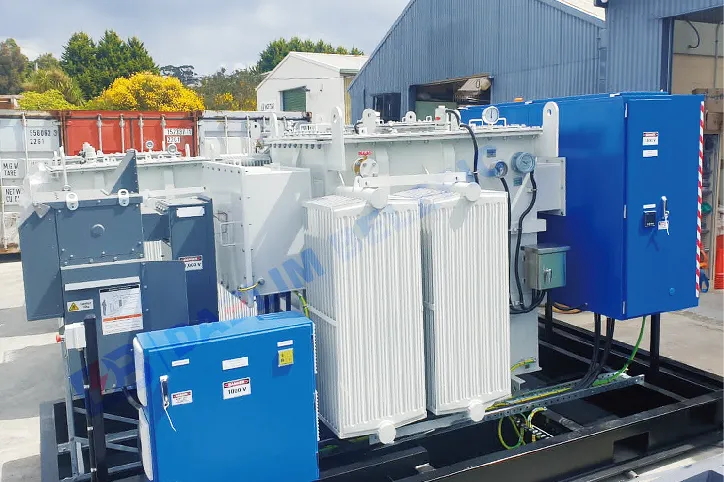

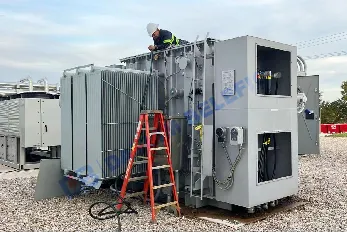

Installation 1 Installation 2 Installation 3
Final Transformer Product
FAQ
What international standards do these transformers comply with?
Our transformers can be customized to meet various international standards, including IEEE/ANSI, CSA, AS/NZS, IEC, EN 60076, and GOST.
What is the standard warranty period?
We provide a 24-month quality guarantee period. Extensions are available upon request for long-term project requirements.
What cooling methods are available for medium-sized transformers?
Options include oil-immersed (ONAN/ONAF), air-cooled, or water-cooled systems, with forced air cooling available for units from 7.5 MVA and above.
Can the voltage and capacity be customized?
Yes, we specialize in customizing input/output voltages (from 120V to 44kV) and capacities ranging from 300kVA to 20MVA to meet specific site requirements.
What safety and protection devices are included?
Transformers are equipped with pressure relief devices, winding temperature sensors, sudden pressure relays, and alarm contacts to ensure safe operation.
What is the typical delivery timeframe?
Standard production and shipping lead time is approximately 20-30 days after payment, depending on the order quantity and customization complexity.
