Product Description
Overview

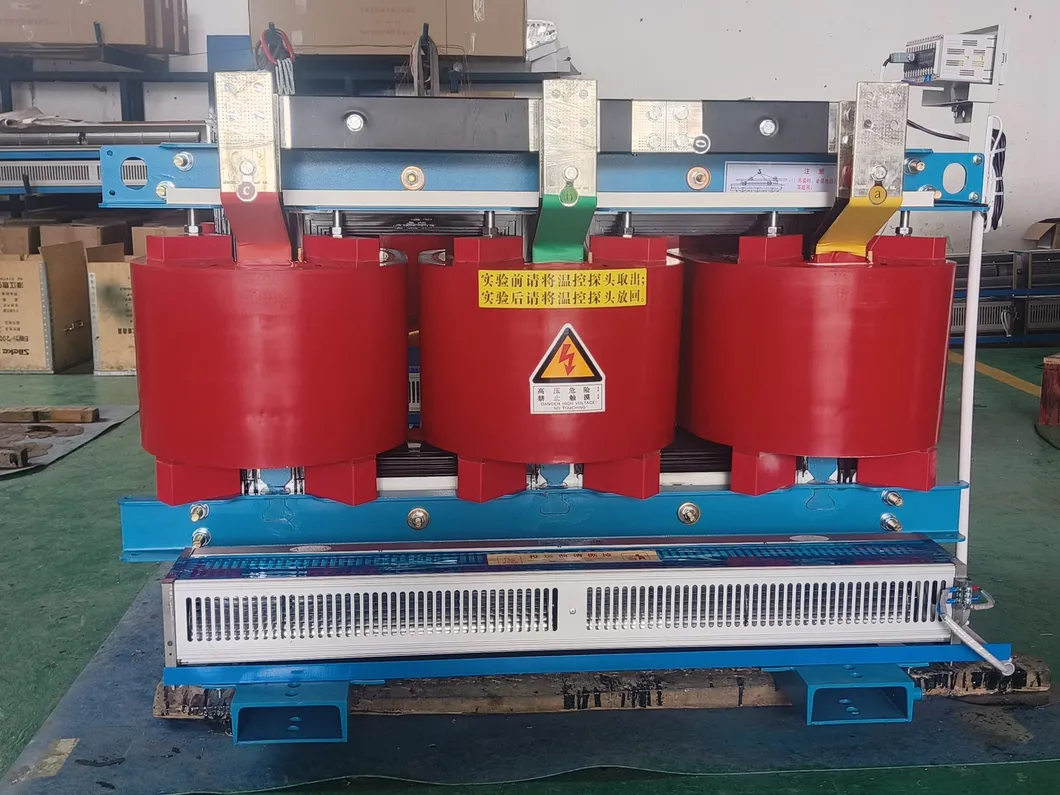

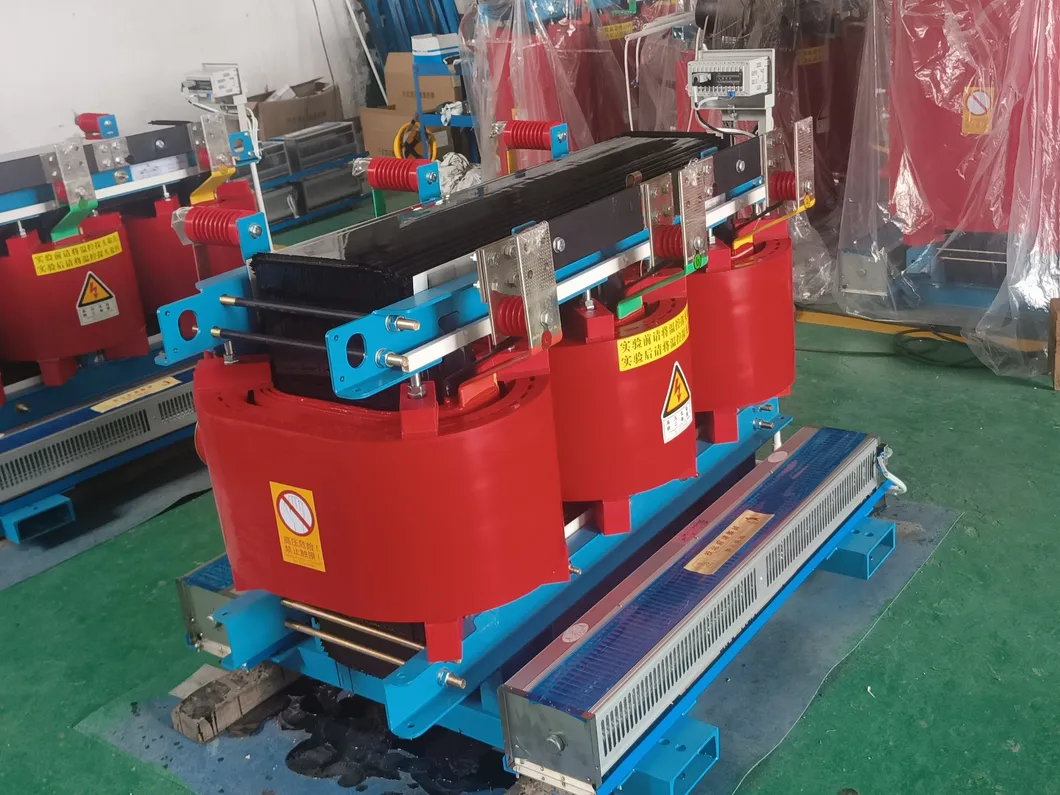

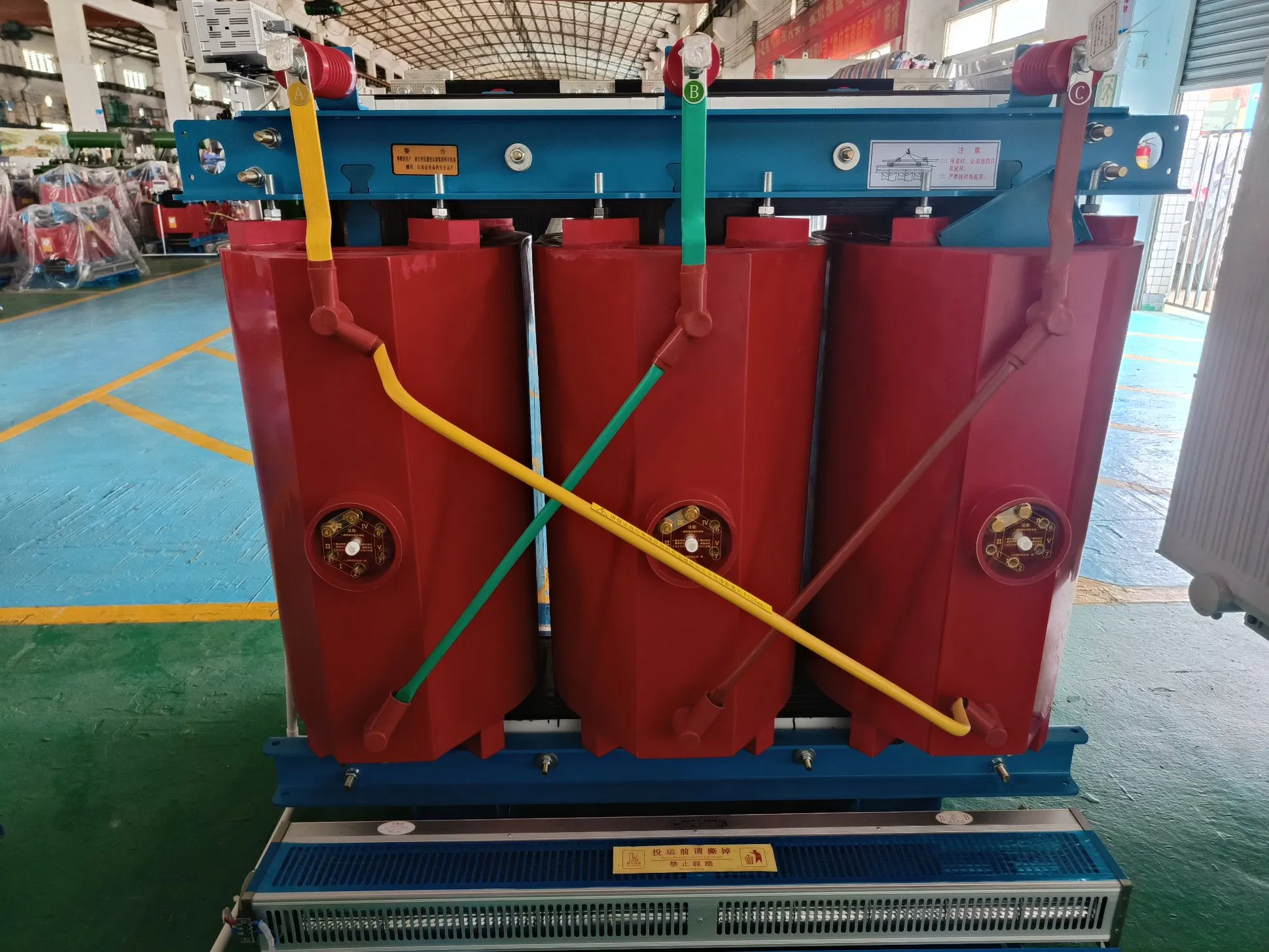

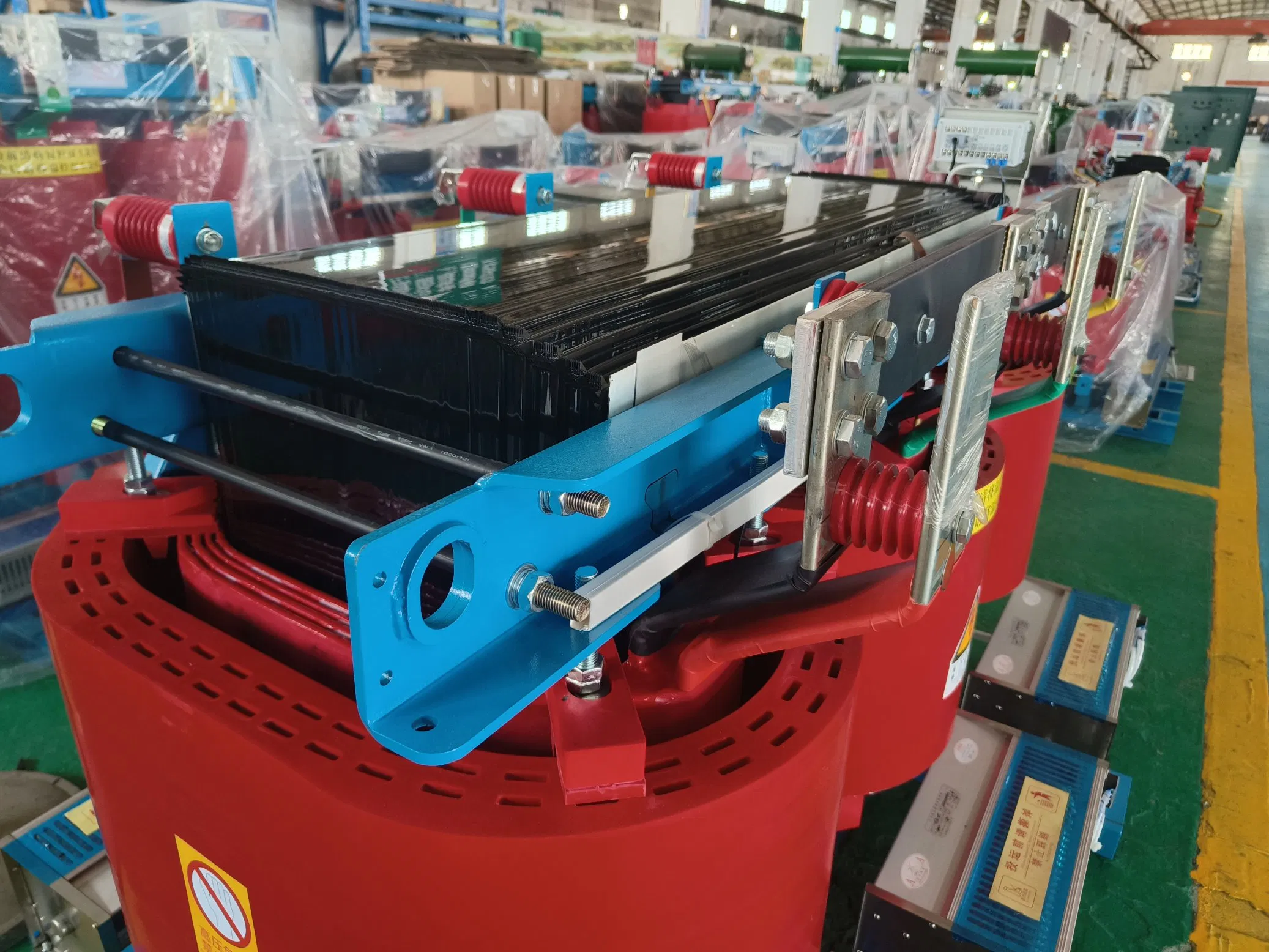

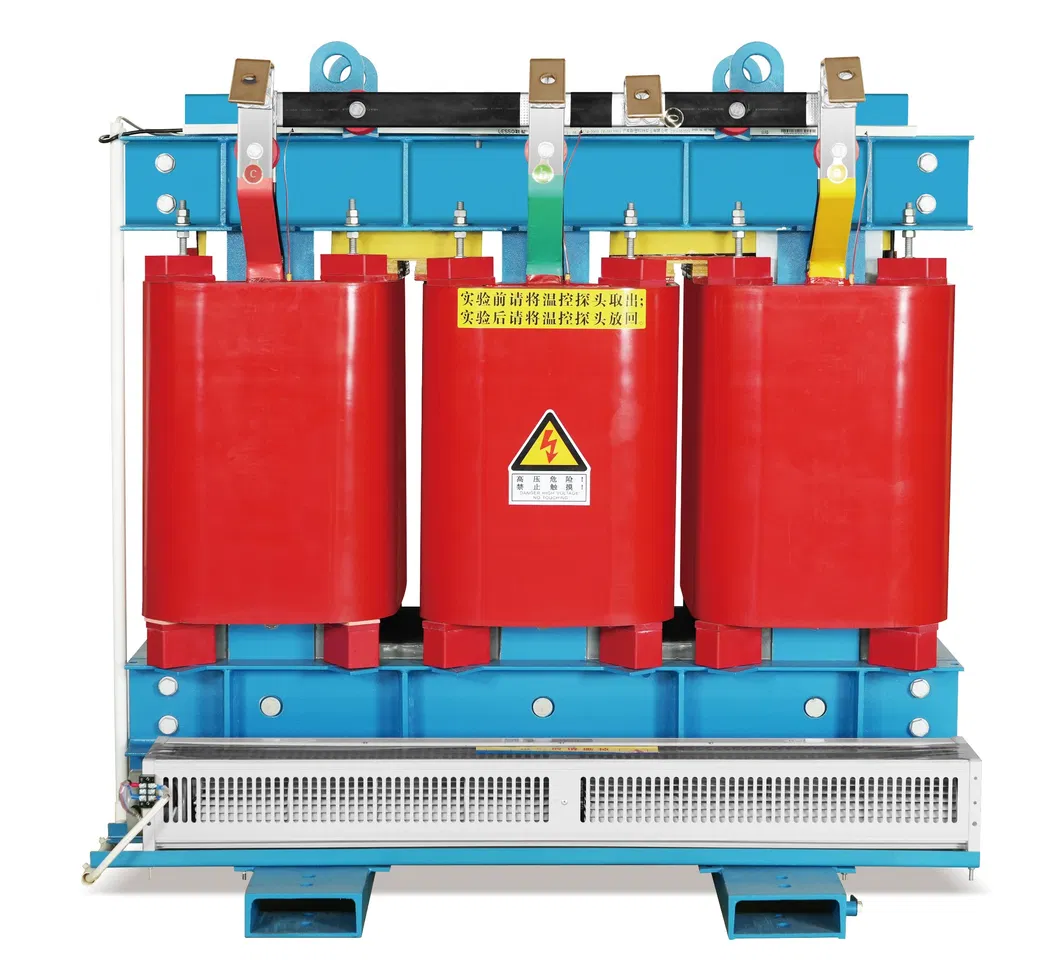

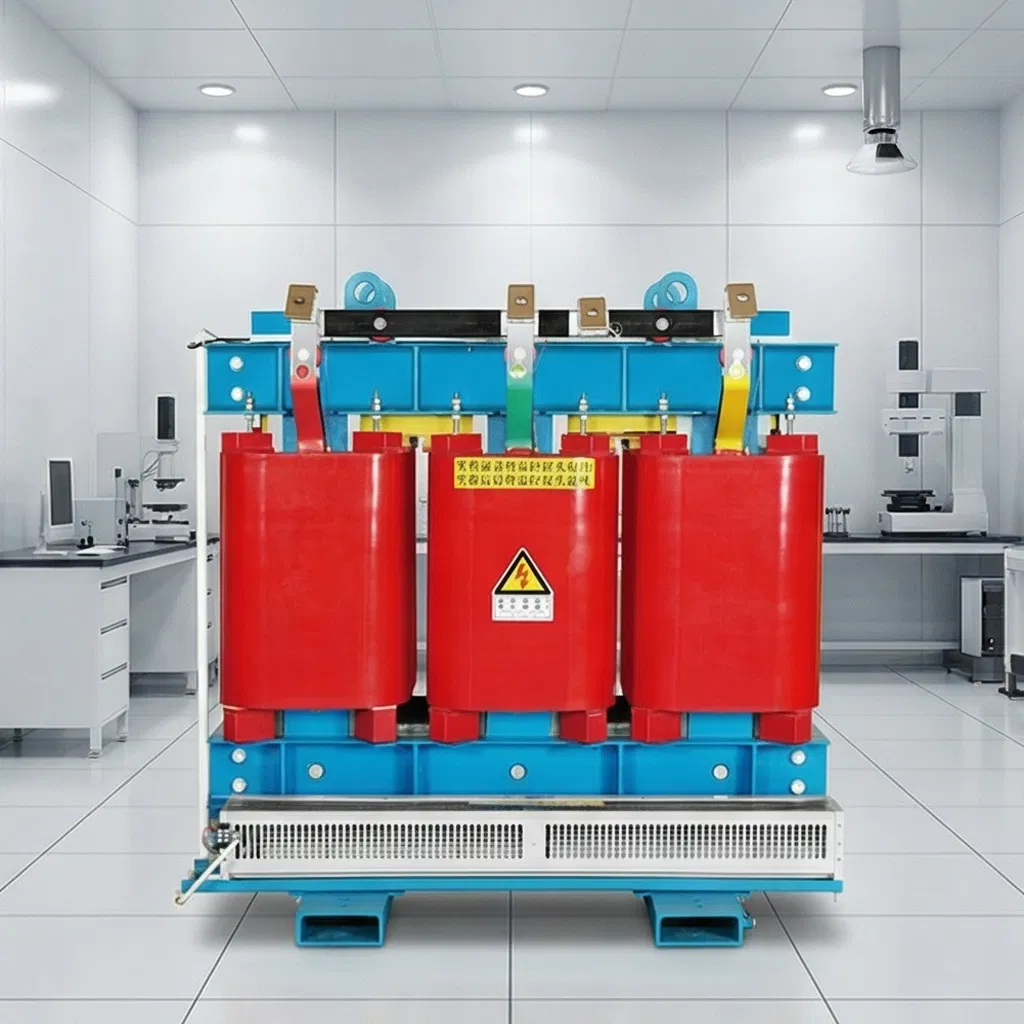

SC(B) serie products are resin cast dry type transformers that are installed indoor with fire prevention functions. They are the first choice for places with limited spaces, close to the load center, or special place which has higher requirements of fire-proof.
SC(B) series transformers are widely used in various industries and applications because of their safety, reliability, and environmental benefits. Such as power station, hospitals, factories, buildings, commercial centers, airports, transportation tunnels, chemical plants, ships, etc.

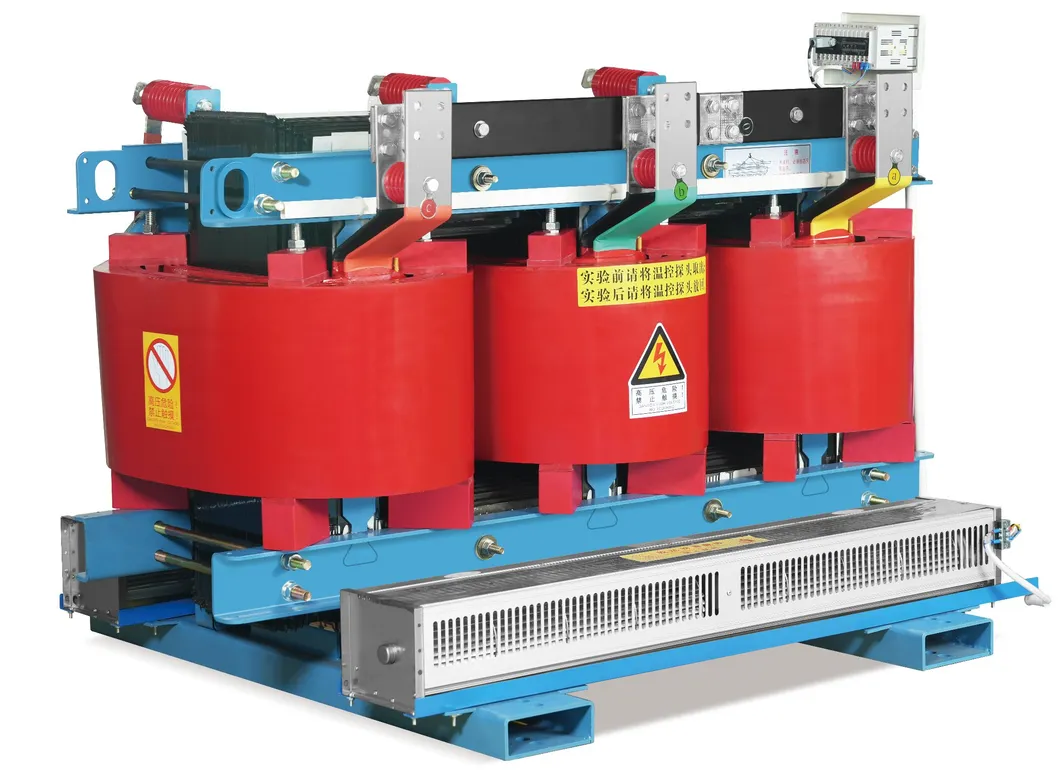

They can operate in harsh conditions such as high humidity, fire risk, and seismic events without compromising their performance or posing any hazard to people or property.
Key Advantages

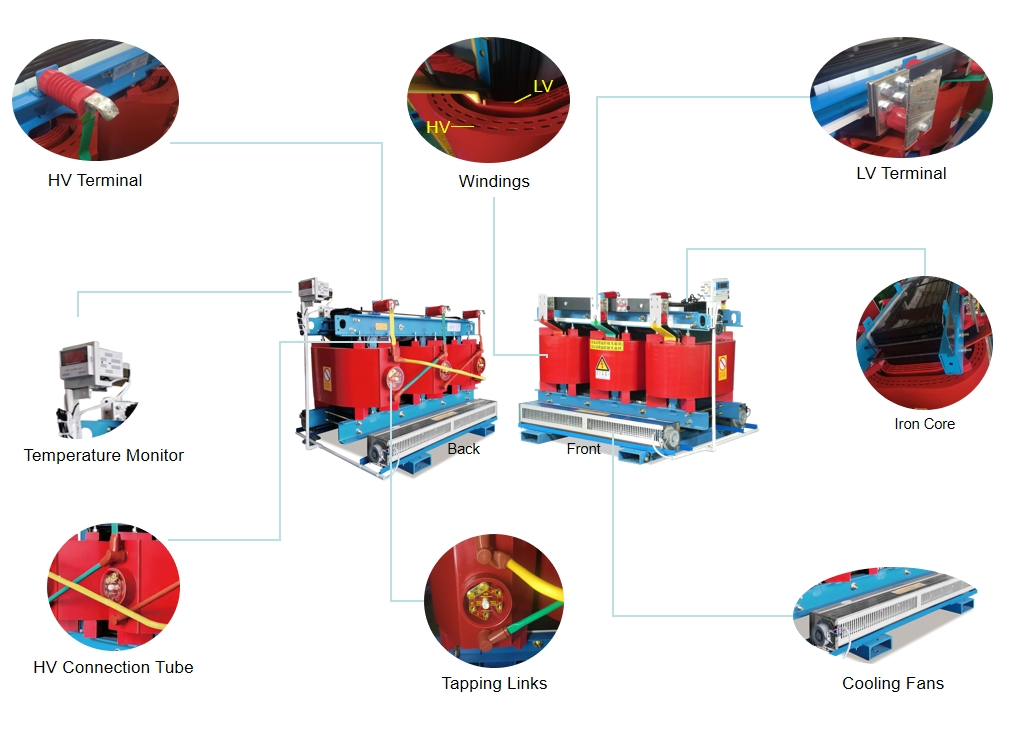

✔ Low noise & low loss: advanced design and high quality grain oriented cold-rolled silicon steel
✔ Low partial discharge: ensure transformer long-running safely
✔ Strong capability resist to short-circuit: epoxy glass fiber mesh structure insulation & vacuum resin casting

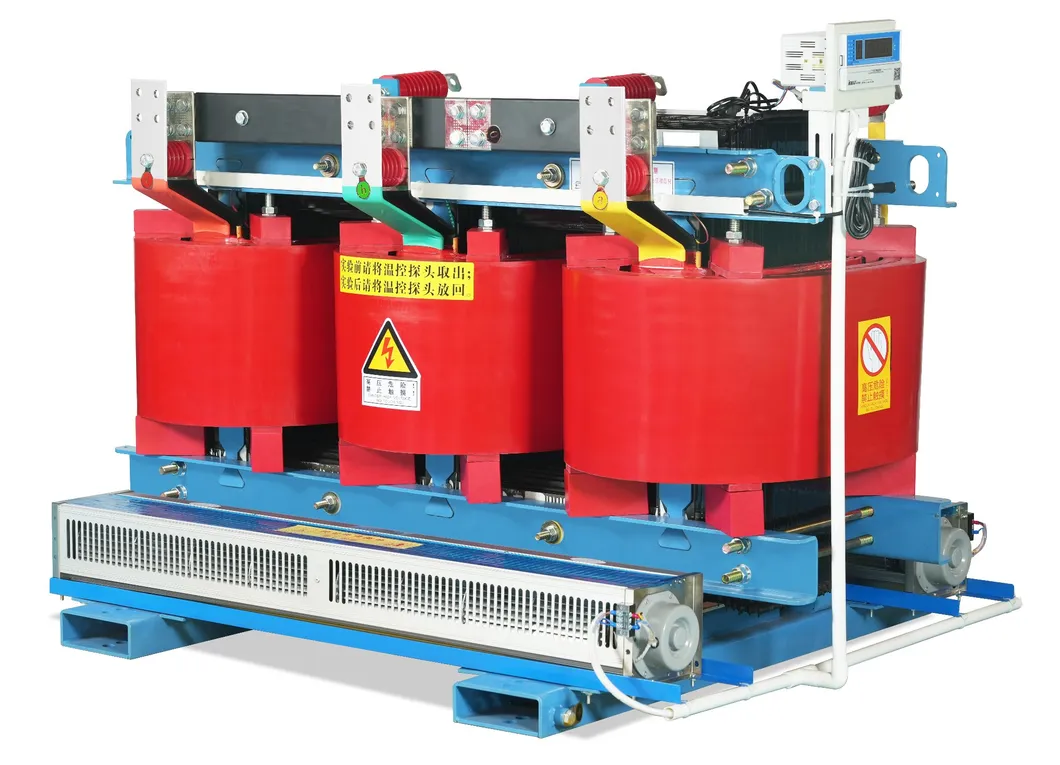

✔ Good impacting resistance and high level insulation and fire prevention
Technical Specification
| Standards |
IEC60726, GB 1094.11-2022, GB/T10228-2023, GB20052-2020 |
Insulation Level |
LI75 AC35/AC5 |
| Capacity Range |
30~10,000kVA |
Partial Discharge |
≤10PC |
| Voltage Class |
10KV, 35KV |
Insulation Grade |
F |
| Tapping Range |
±2x2.5% / ±5% |
Max. Heat Rise |
100k |
| Voltage Regulation |
Non-excitation, or On-load |
Operation Condition |
Temp ≤40ºC, Altitude ≤1000m |
| Connection |
Dyn11 / Yyn0 |
Cooling |
AN (Air Nature) / AF (Air + Fan) |
| Protection |
IP00(No cover), IP20(indoor), IP23(outdoor) |

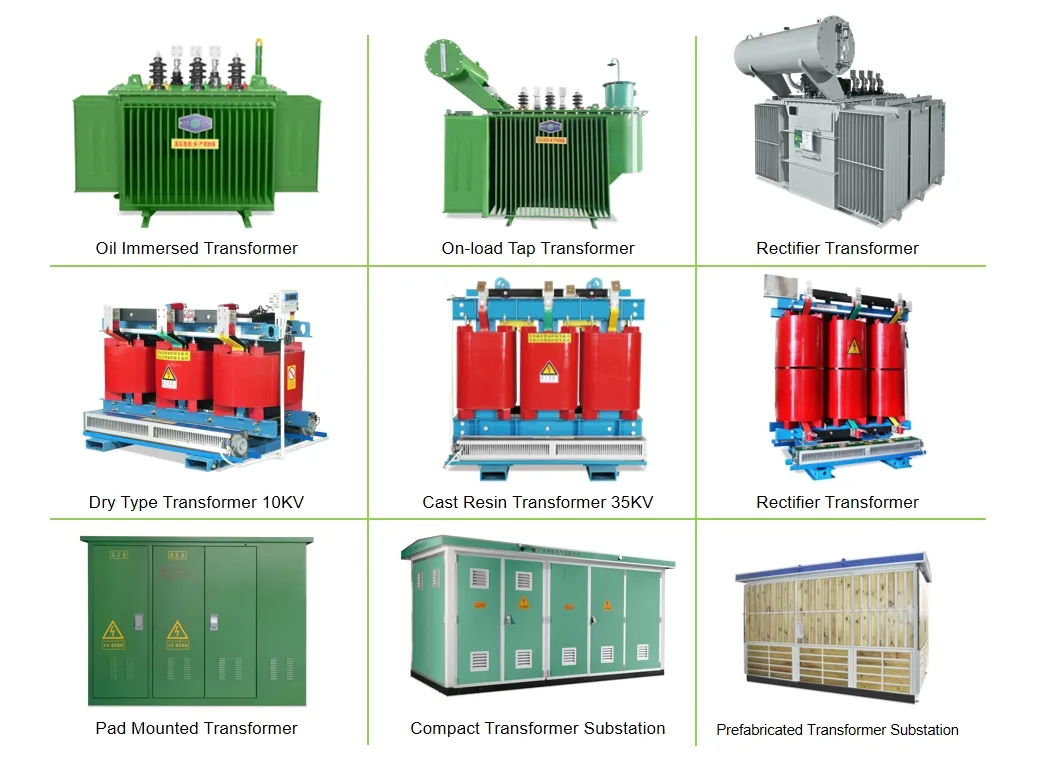

Product Lines
We mainly produce and sell all kinds of distribution transformers with capacity from 30kVA to 2500kVA (or above) with voltage class of 10KV/35KV.
Our product series include dry-type transformers, oil-immersed transformers, underground transformers, rectifier transformers, prefabricated and combined transformers, wind power and photovoltaic transformers, as well as HV/MV/LV switchgears. Our annual production capacity exceeds 5 million kVA.

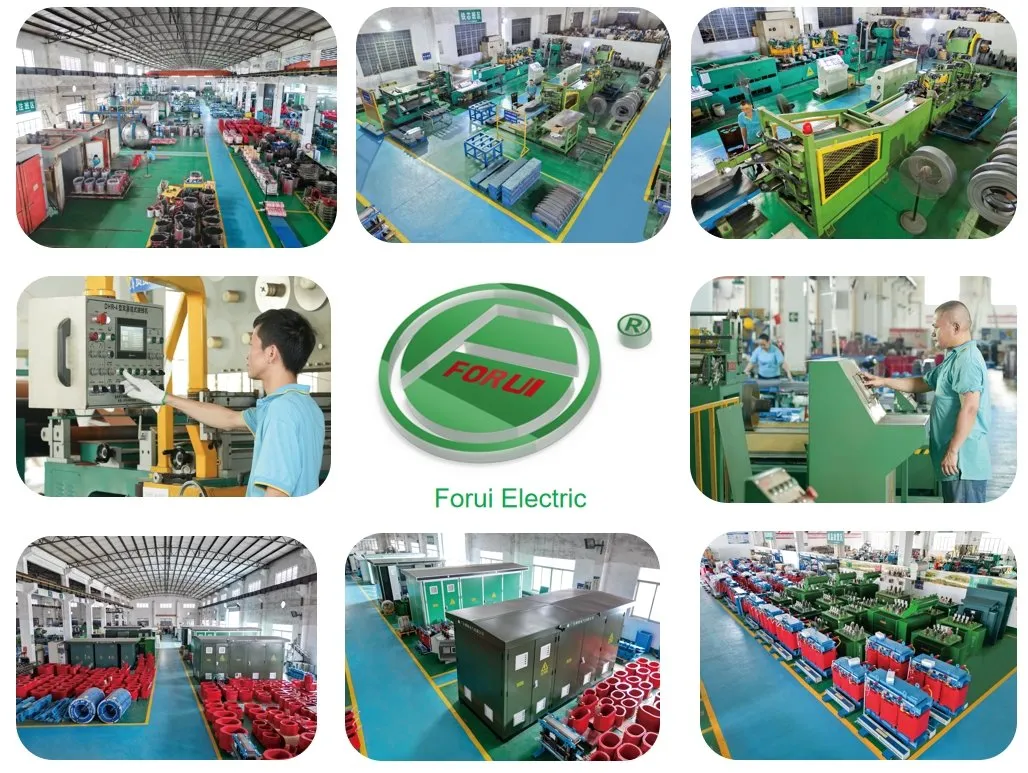

Factory Workshop
Established in 2007, we are a professional manufacturer of electric power equipment with integrated R&D, Production, Sales and Service departments.
We have more than 10,000 square meters of production plants and adopt the ISO9001: 2015 quality management system. We are recognized as a High & New Technology Enterprise certificated by the government.
Frequently Asked Questions
What are the primary benefits of SC(B) series dry-type transformers?
SC(B) series transformers offer high safety, low noise, and low loss. They are fire-proof, maintenance-free, and pollution-free, making them ideal for indoor environments and load centers.
Where are these transformers typically installed?
They are widely used in power stations, hospitals, high-rise buildings, commercial centers, airports, tunnels, chemical plants, and ships, especially where space is limited or fire safety is a priority.
Do these transformers require regular oil maintenance?
No, these are dry-type resin cast transformers. They do not use oil, which eliminates the need for oil changes, oil tests, and the risk of oil leaks.
What cooling methods are supported?
They support both Air Nature (AN) cooling and Air + Fan (AF) cooling systems to ensure optimal performance under different load conditions.
Can these transformers withstand harsh environmental conditions?
Yes, they are designed to operate reliably in high humidity, damp, and contaminated areas. They also have excellent resistance to seismic events and short-circuit currents.
What is the capacity range available?
The capacity range typically spans from 30kVA to 10,000kVA, covering a wide range of distribution and power needs.
