Type: Loop feed / Radial feed
Primary Voltage: Up to 36kV
Secondary Voltage: 120/240/480/600V
Rating Power: Up to 10 MVA
| Rated Capacity (kVA) | High Voltage (kV) | Tapping Range | Low Voltage (V) | Vector Group | Impendance (%) | Dimensions (LxWxH mm) |
|---|---|---|---|---|---|---|
| 75 | 7.2 - 34.5 | ±5% / ±2x2.5% | 120 - 600 | Dyn11 | 5.5 | 1550x1170x1750 |
| 150 | 7.2 - 34.5 | ±5% / ±2x2.5% | 120 - 600 | Dyn11 | 5.5 | 1730x1550x1750 |
| 300 | 7.2 - 34.5 | ±5% / ±2x2.5% | 120 - 600 | Dyn11 | 5.5 | 2350x1650x1750 |
| 500 | 7.2 - 34.5 | ±5% / ±2x2.5% | 120 - 600 | Dyn11 | 5.5 | 2570x1650x1750 |
| 1000 | 7.2 - 34.5 | ±5% / ±2x2.5% | 120 - 600 | Dyn11 | 6.0 | 3900x1850x1950 |
| 2500 | 7.2 - 34.5 | ±5% / ±2x2.5% | 120 - 600 | Dyn11 | 6.0 | 5200x2050x2150 |

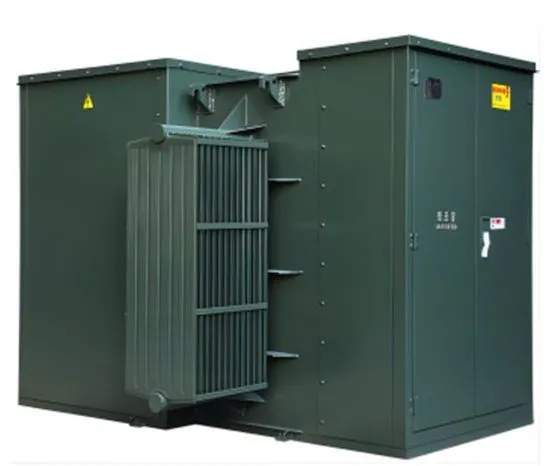

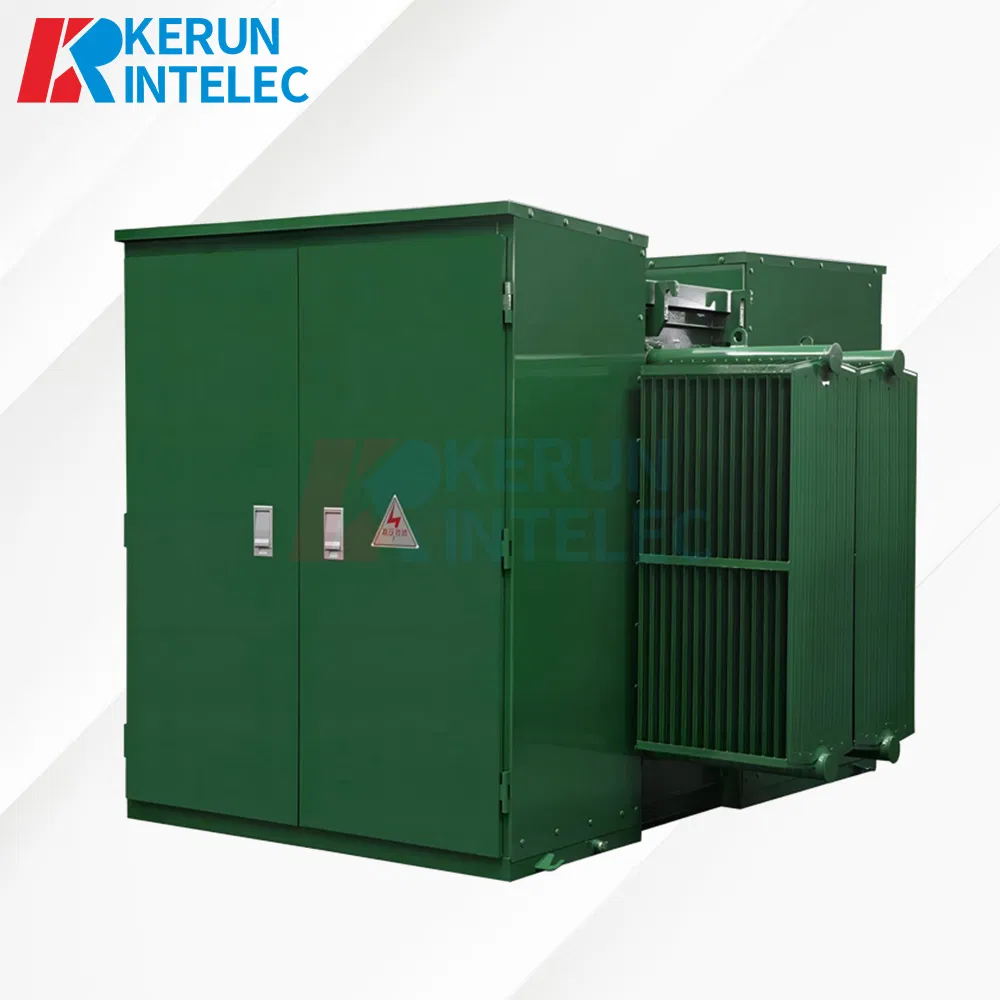

These padmounted transformers are designed for outdoor installation, typically on concrete pads. They are ideal for:
Our transformers meet or exceed ANSI, IEEE, NEMA, and IEC standards, including ISO9001 and CE certifications.
They are commonly used in residential areas, commercial complexes, parks, and industrial sites where underground power distribution is required.
Yes, we provide professional engineering support to customize voltage, capacity, and accessory configurations based on specific project requirements.
These are oil-immersed, self-cooled transformers designed for stable outdoor operation and efficient heat dissipation.
Once the technical plan is finalized, production and shipping preparation typically take around 20 days, depending on the order quantity.
Transformers are wrapped in protective plastic, cushioned with pearl cotton, and secured on wooden pallets or within wooden frames/boxes to ensure safety during transit.
