200kVA to 2500kVA Pad Mounted Transformers 35kv 30kv 33kv 34.5kv 38.5kv IEC 60076 Standard ONAN Cooling for Global B2B Buyers

Application:	Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase:	Three
Core:	Core-type Transformer

i

Basic Info

Model NO.customizable

Cooling MethodOil-immersed Type

Winding TypeTwo-winding Transformer

CertificationISO9001, CCC, CE

Frequency50Hz/60Hz Low Frequency

Core MaterialSilicon Steel Sheet

Winding MaterialCopper/Aluminum

Insulation ClassF/H

Protection ClassIP20/IP54

Voltage Regulator5 Steps

Efficiency98%

StandardIEC60076

P

Product Description

Product Introduction

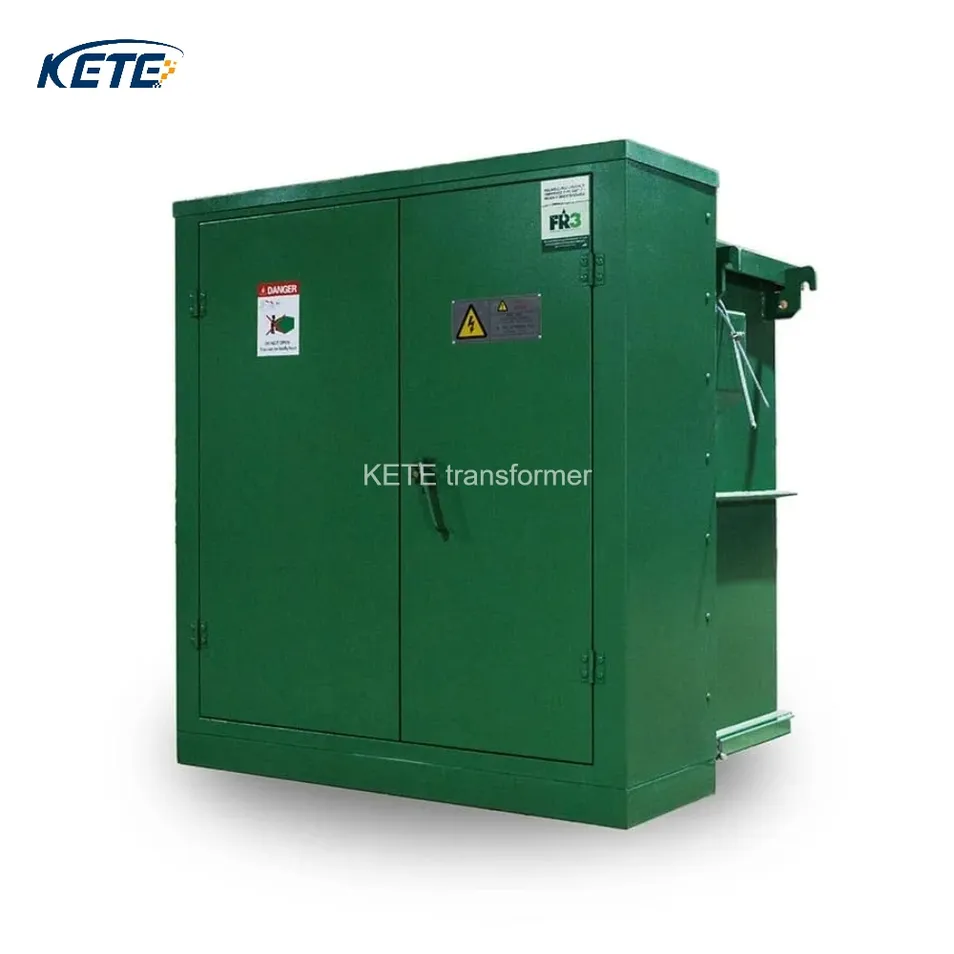

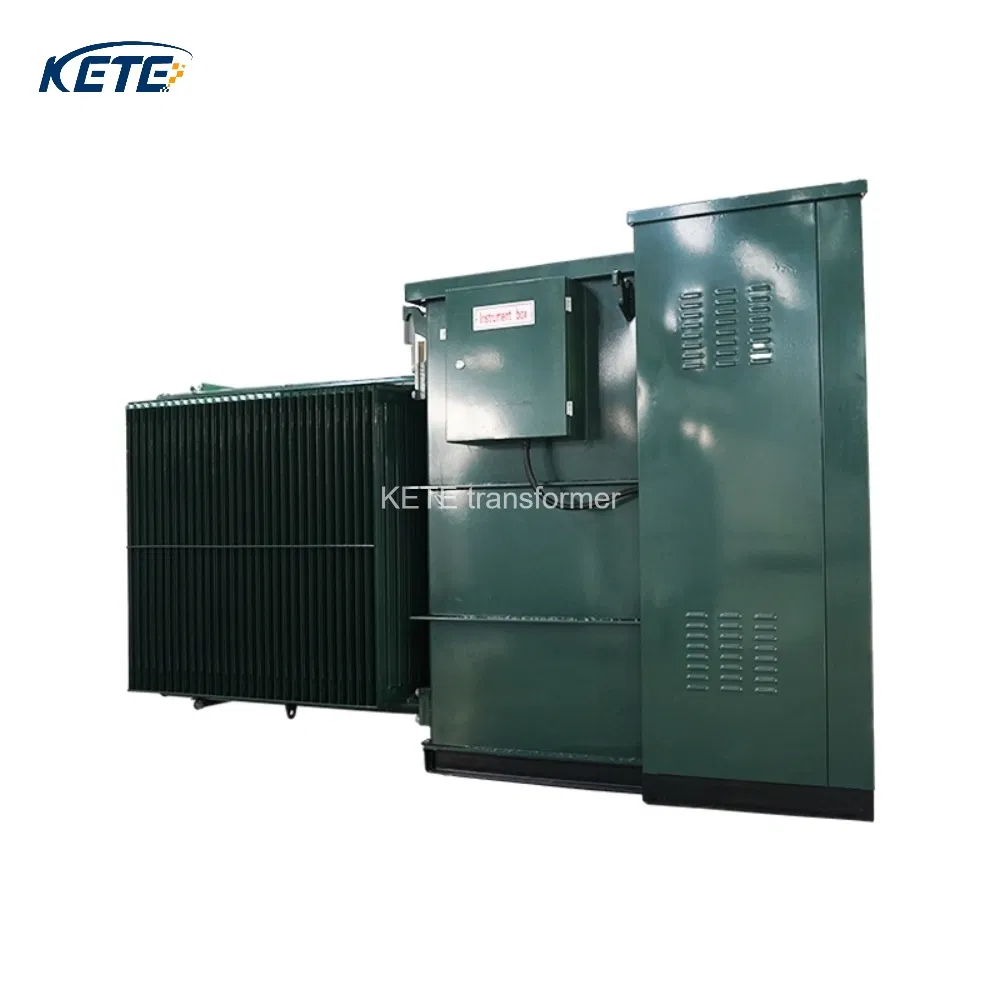

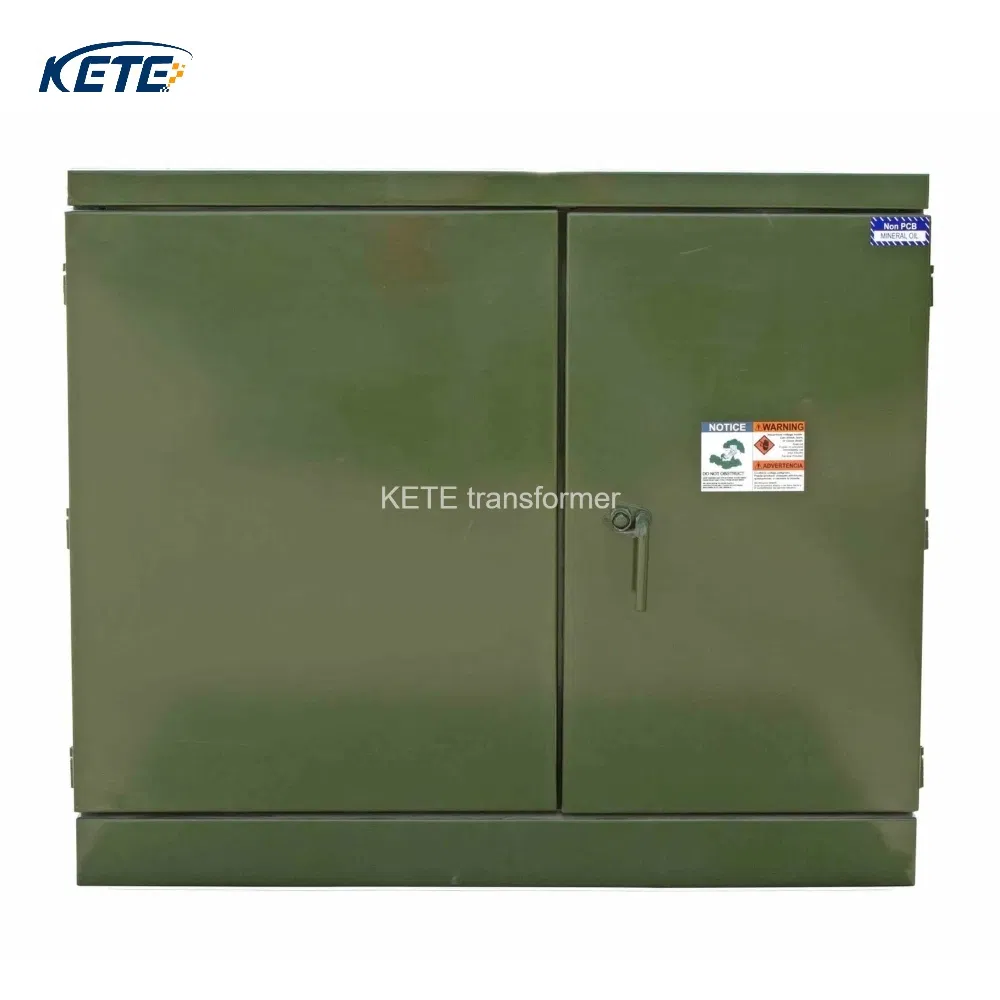

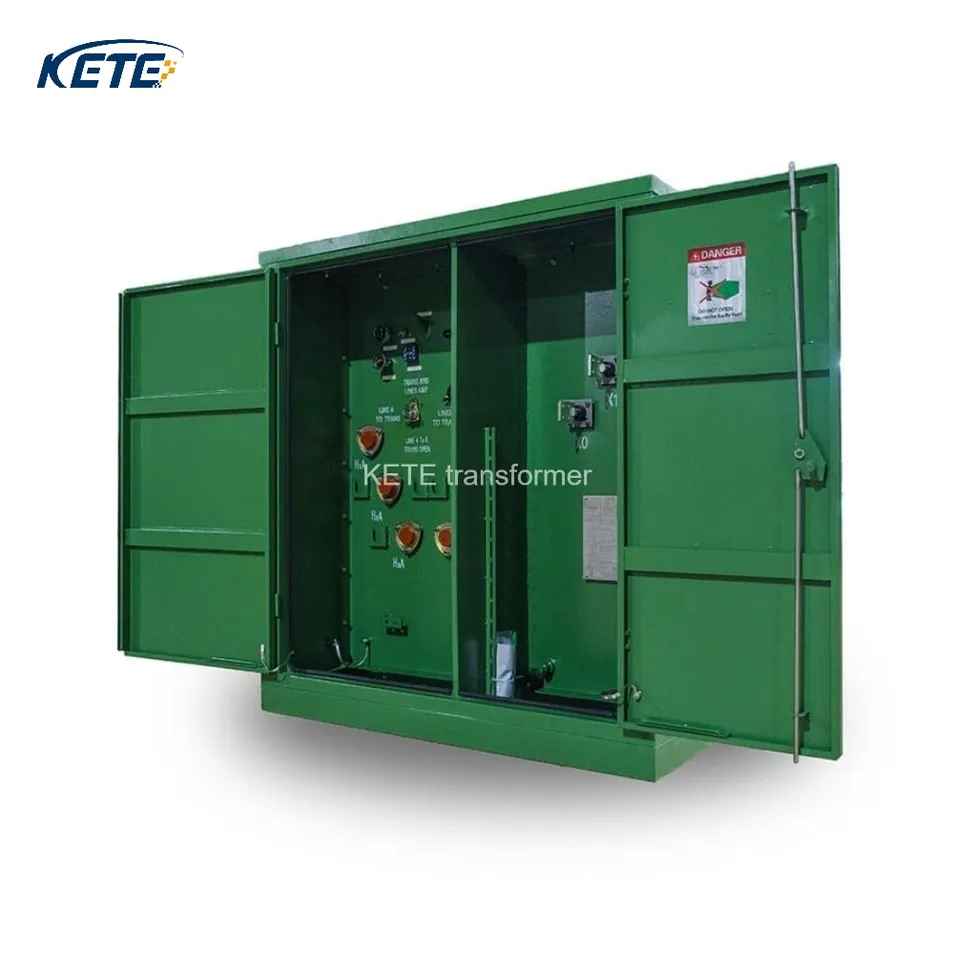

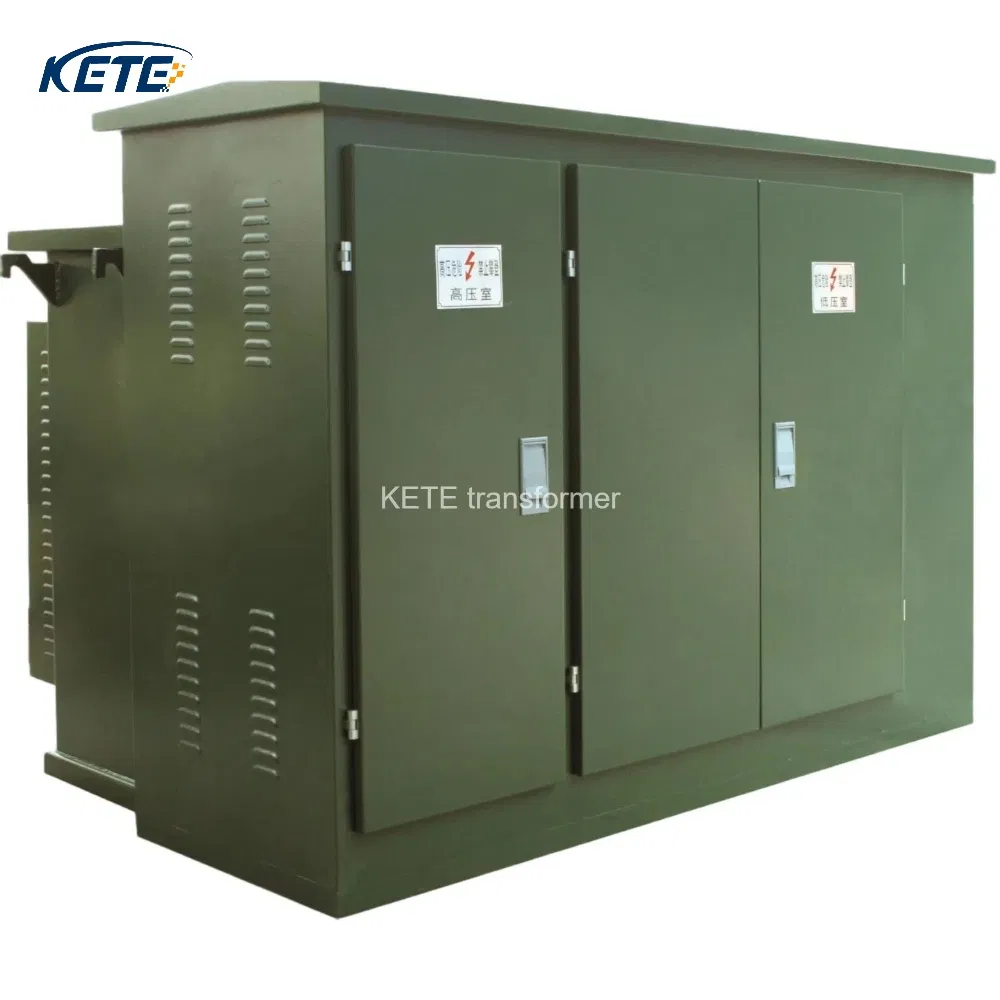

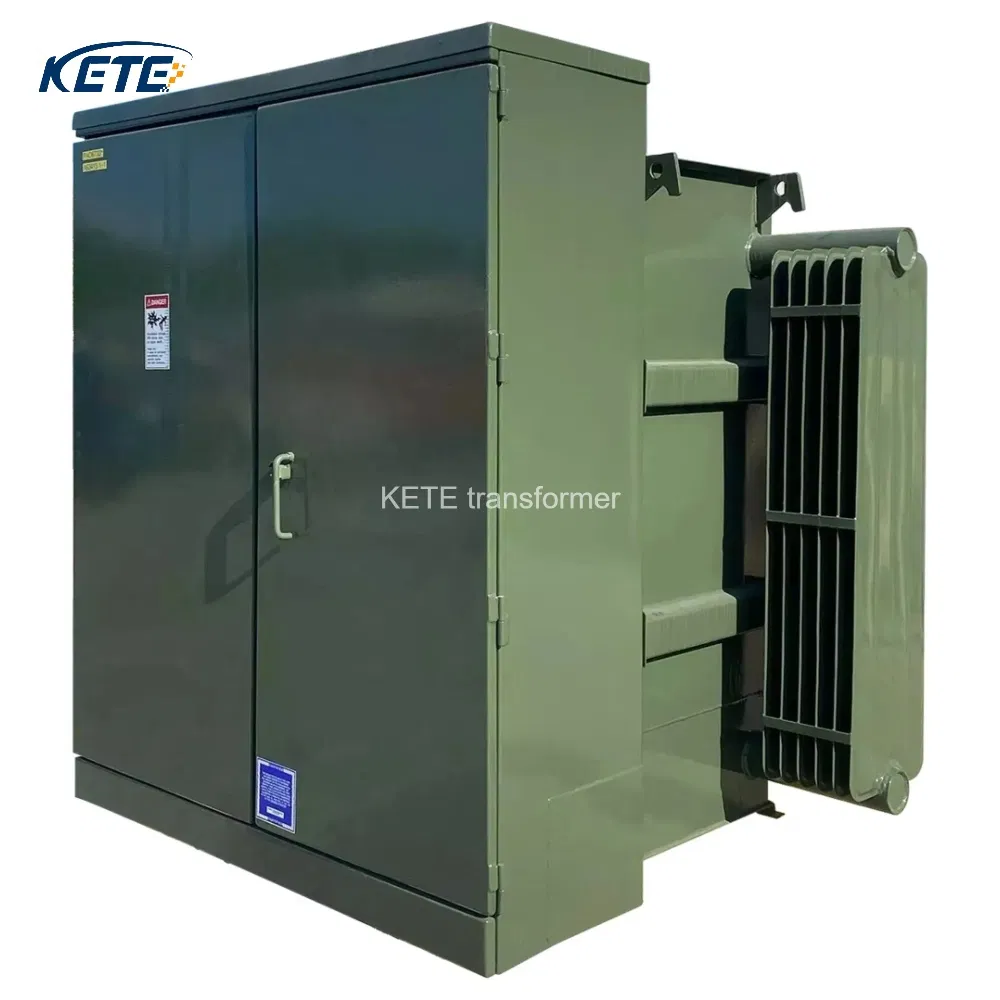

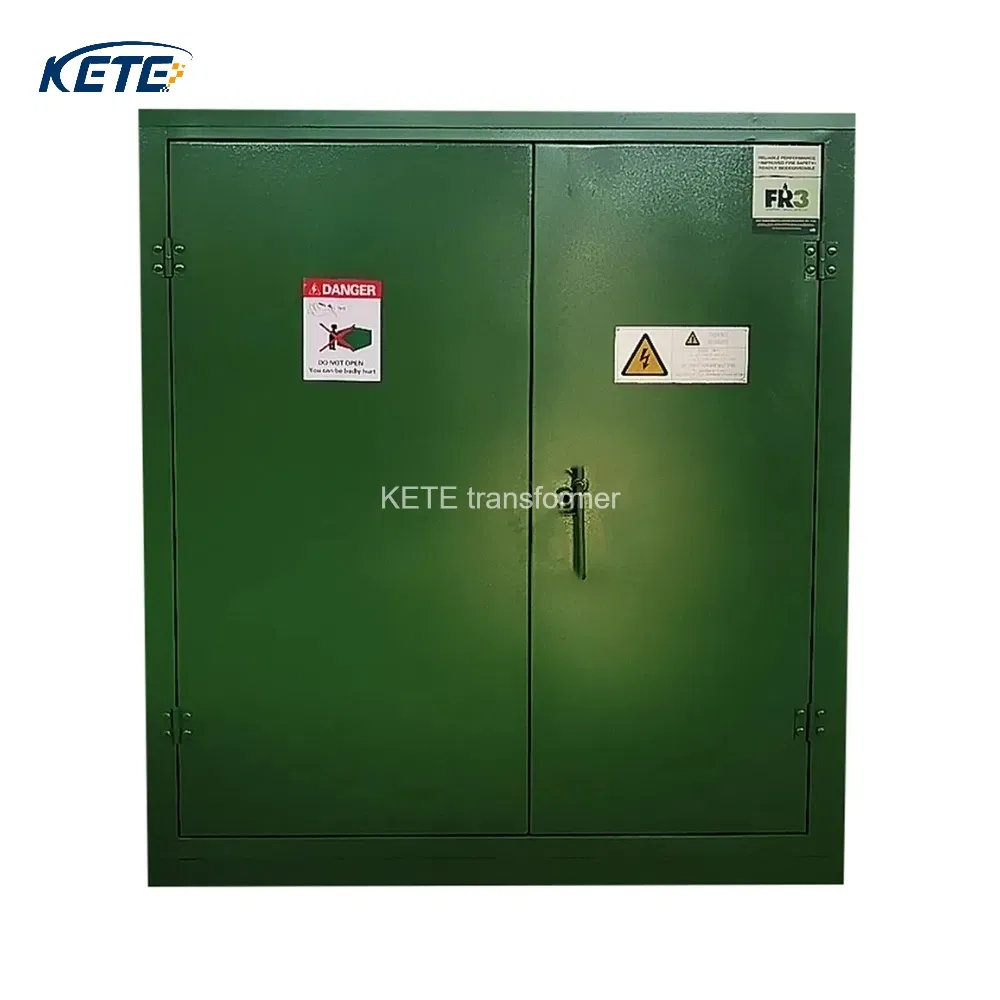

The Pad Mounted Transformer is a compact power distribution device that integrates the transformer, high-voltage switchgear, and low-voltage outlet cable into a fully sealed metal enclosure. Designed specifically for outdoor terminal distribution scenarios, its core advantages lie in its fully sealed protection, corrosion resistance, durability, and easy installation.

Product Advantages

Efficient Installation: Pre-installed and commissioned at the factory, reducing installation time to 1-2 days on-site.
High Safety Redundancy: UL 1551-certified high-voltage switch with strong short-circuit breaking capacity and explosion-proof enclosure.
Easy Maintenance: Modular components enable quick replacement; sealed enclosure reduces dust and moisture intrusion.

Operating Conditions

Altitude≤ 1000 meters

Ambient Temp-25°C to +40°C

Relative HumidityDaily ≤ 95%, Monthly ≤ 90%

Seismic Resistance0.2g horiz / 0.1g vert

T

Technical Datasheet

Rated Capacity (kVA)	H.V. (kV)	L.V. (kV)	Connection Symbol	No-load loss (kW)		On-load loss (kW)		Short Circuit Impedance (%)
Rated Capacity (kVA)	H.V. (kV)	L.V. (kV)	Connection Symbol	S11	S13	S11	S13	Short Circuit Impedance (%)
50	35 / 38.5	0.4 / 0.418 / 0.48	Dyn11 / Yyn0	0.16	0.112	1.20	1.20	6.5
100				0.23	0.161	2.01	2.01
250				0.40	0.280	3.95	3.95
500				0.68	0.476	6.91	6.91
1000				1.15	0.805	11.5	11.5
2500				2.36	1.652	23.2	23.2

W

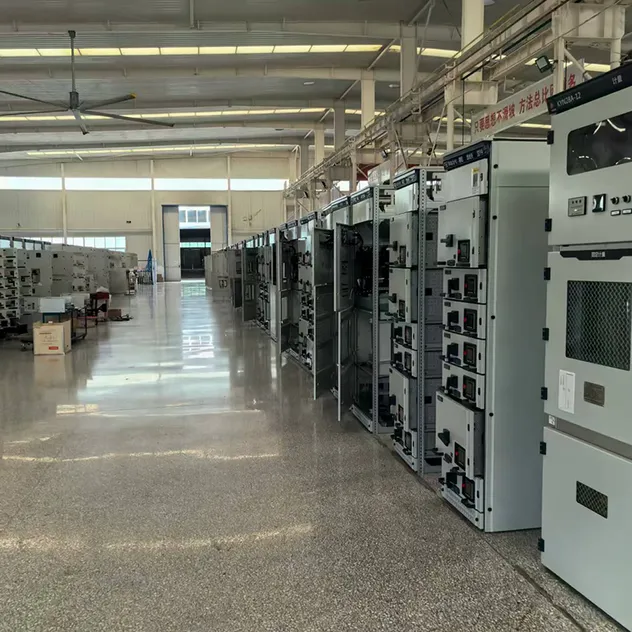

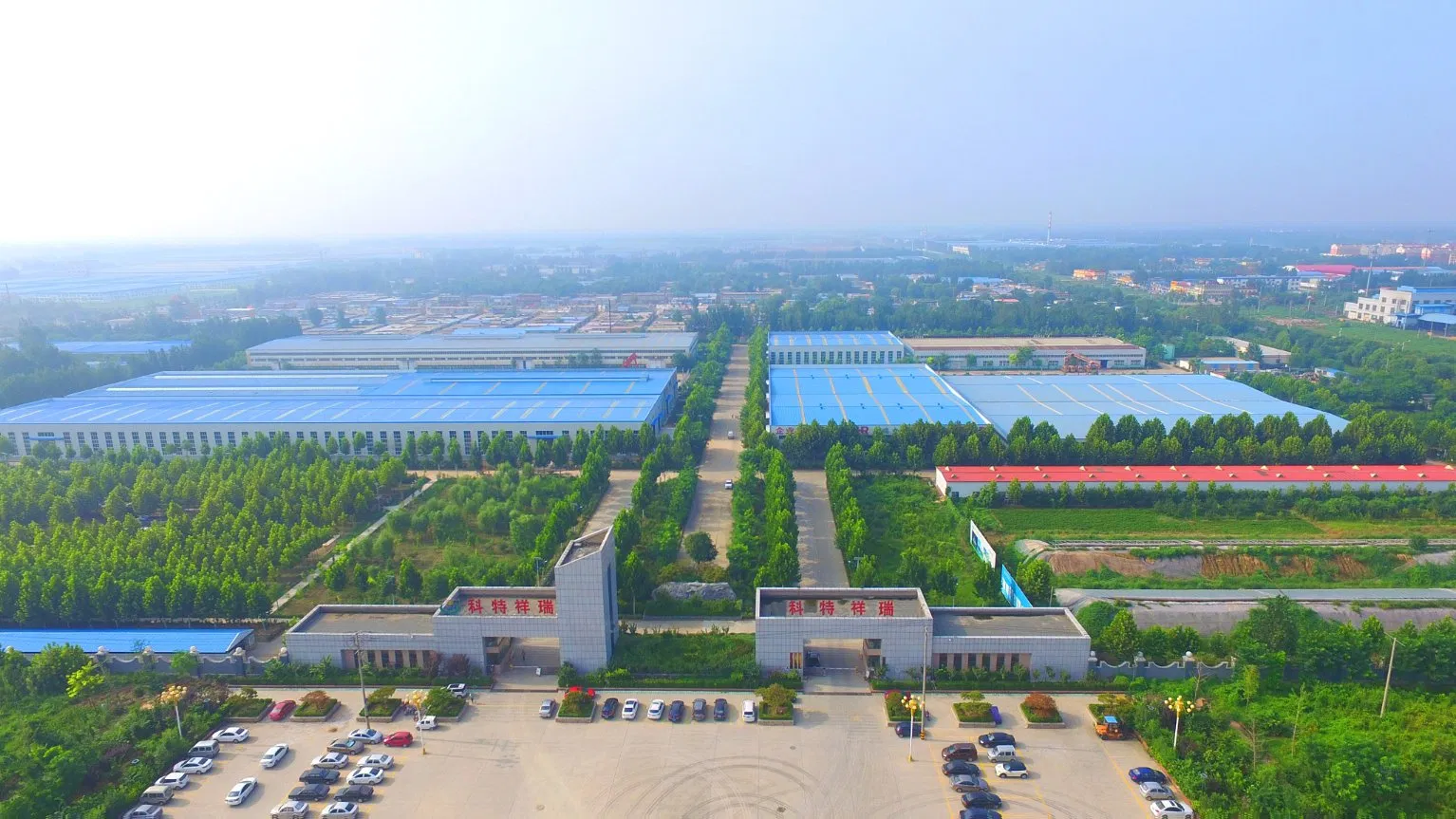

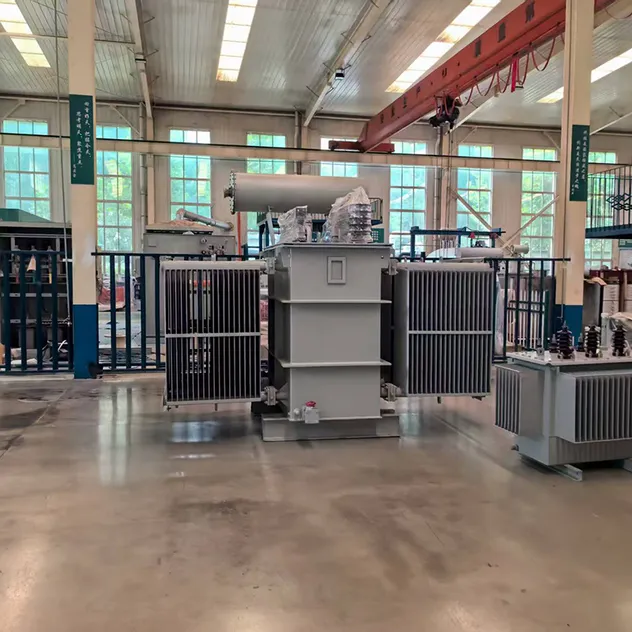

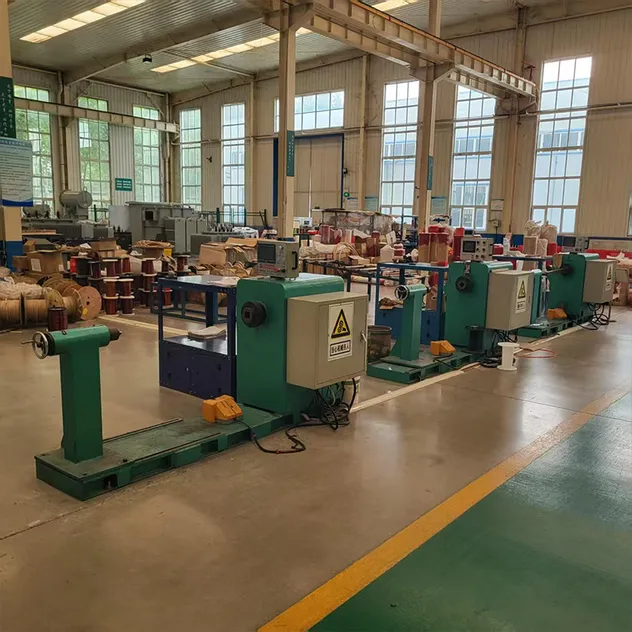

Factory & Workshop

Product Series

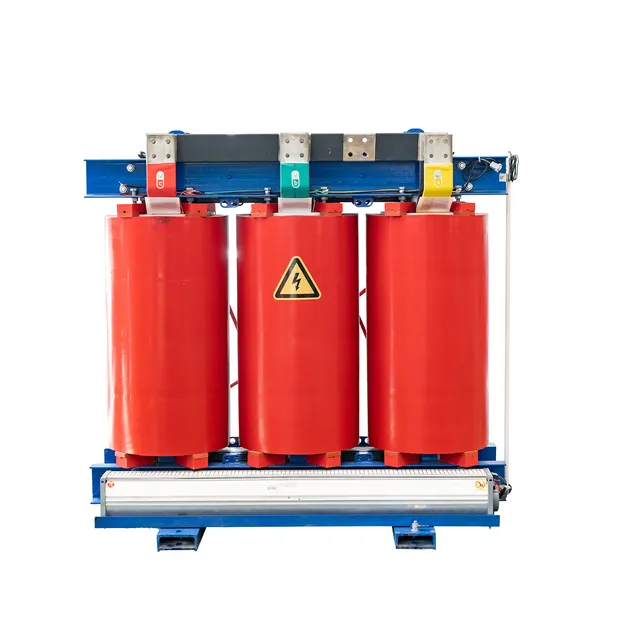

Dry Type Transformer

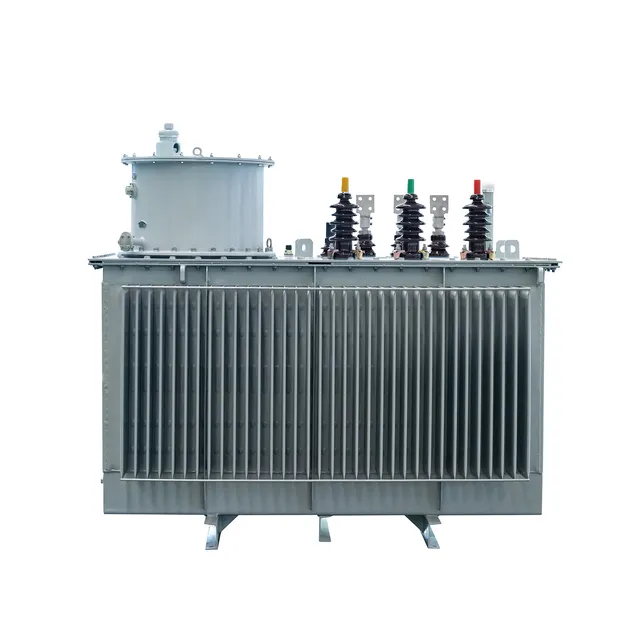

Oil Immersed Transformer

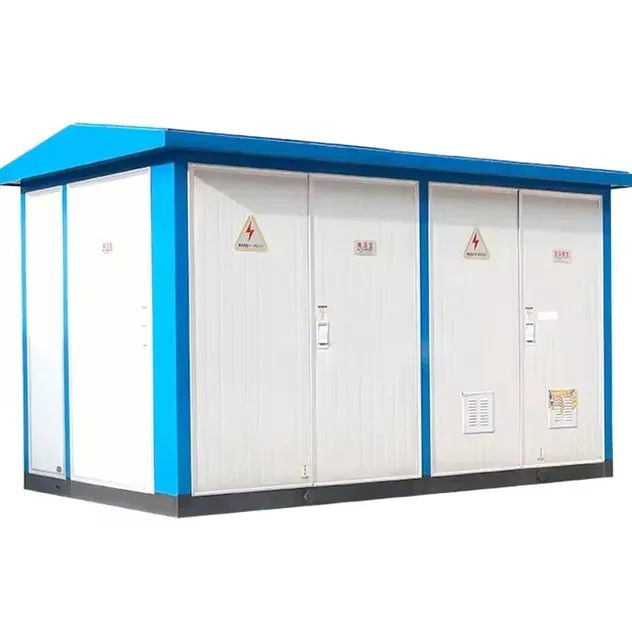

Prefabricated Substation

S

After Sales Service

Warranty includes performance failures caused by material defects or manufacturing issues.
Free spare parts for maintenance during the warranty period.
24/7 technical support hotline, ensuring a response time of ≤ 2 hours.
Regular return visits (every 3 months) for operation status testing.
Lifelong maintenance services and spare parts supply provided at cost price after warranty.
Standard warranty period is one year, with extension options available.

?

Frequently Asked Questions

QWill you provide guidance documents for installation?

Yes. For large transformers that require partial disassembly for shipping, we provide installation videos and electronic instruction manuals.

QWhat is the typical manufacturing and delivery lead time?

Transformers below 2500KVA are generally completed within 20 days. Units above 2500KVA typically take 30 to 40 days depending on complexity.

QHow are the transformers packaged for international shipping?

For bulk cargo, we use robust wooden cases. For full container loads (FCL), we use reinforced wooden pallets to secure the equipment.

QWhat are the standard payment terms?

We accept T/T (30% deposit, 70% before delivery), LC at sight, or DP at sight.

QWhat delivery terms do you offer?

We offer flexible delivery terms including EXW, FOB, CFR, and CIF based on customer requirements.

QDo the transformers comply with international industry standards?

Yes, our oil-immersed transformers meet IEC 60076 and GB 1094 standards, with certifications including CCC, ISO, CE, UL, and more.
