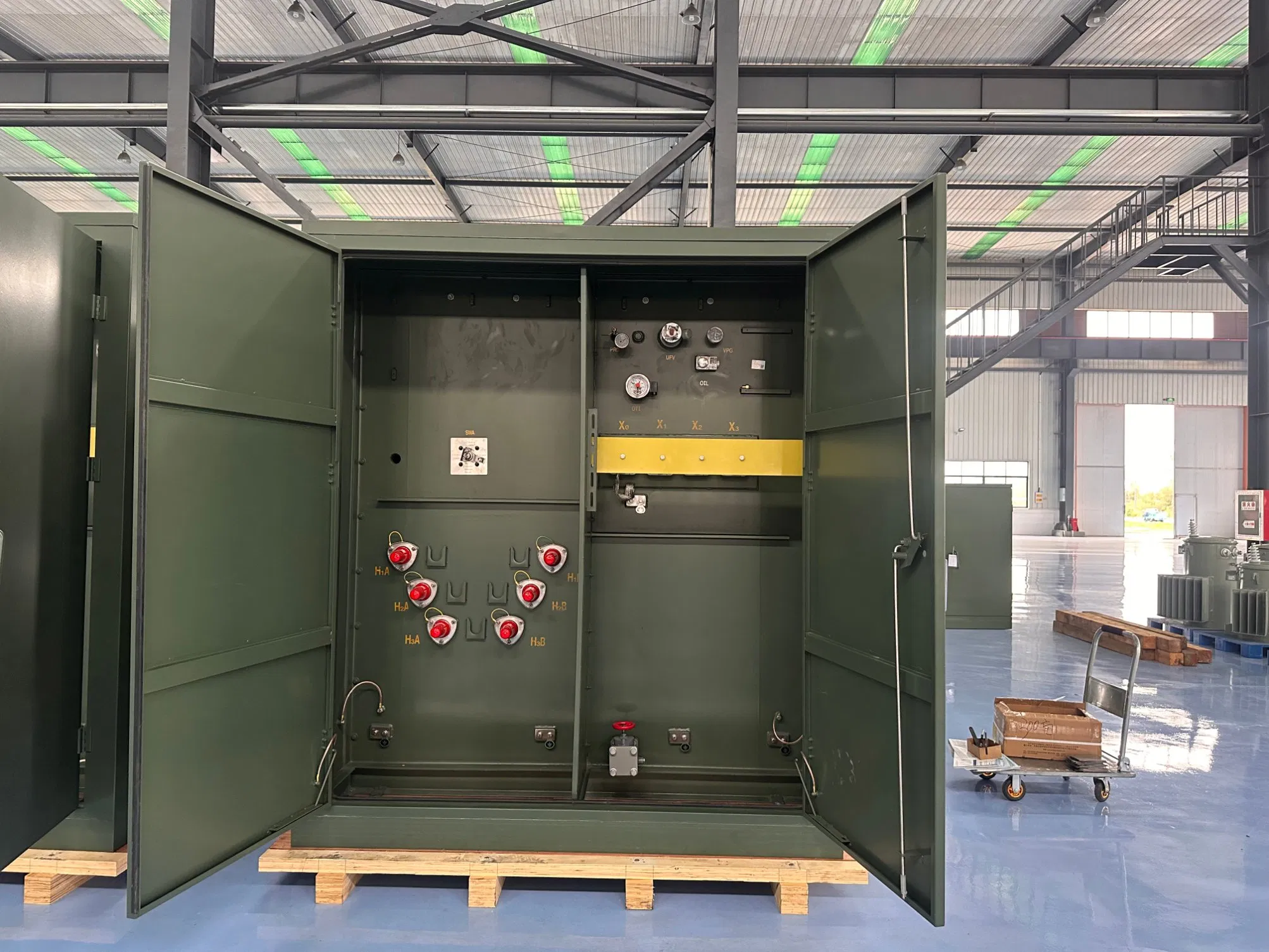

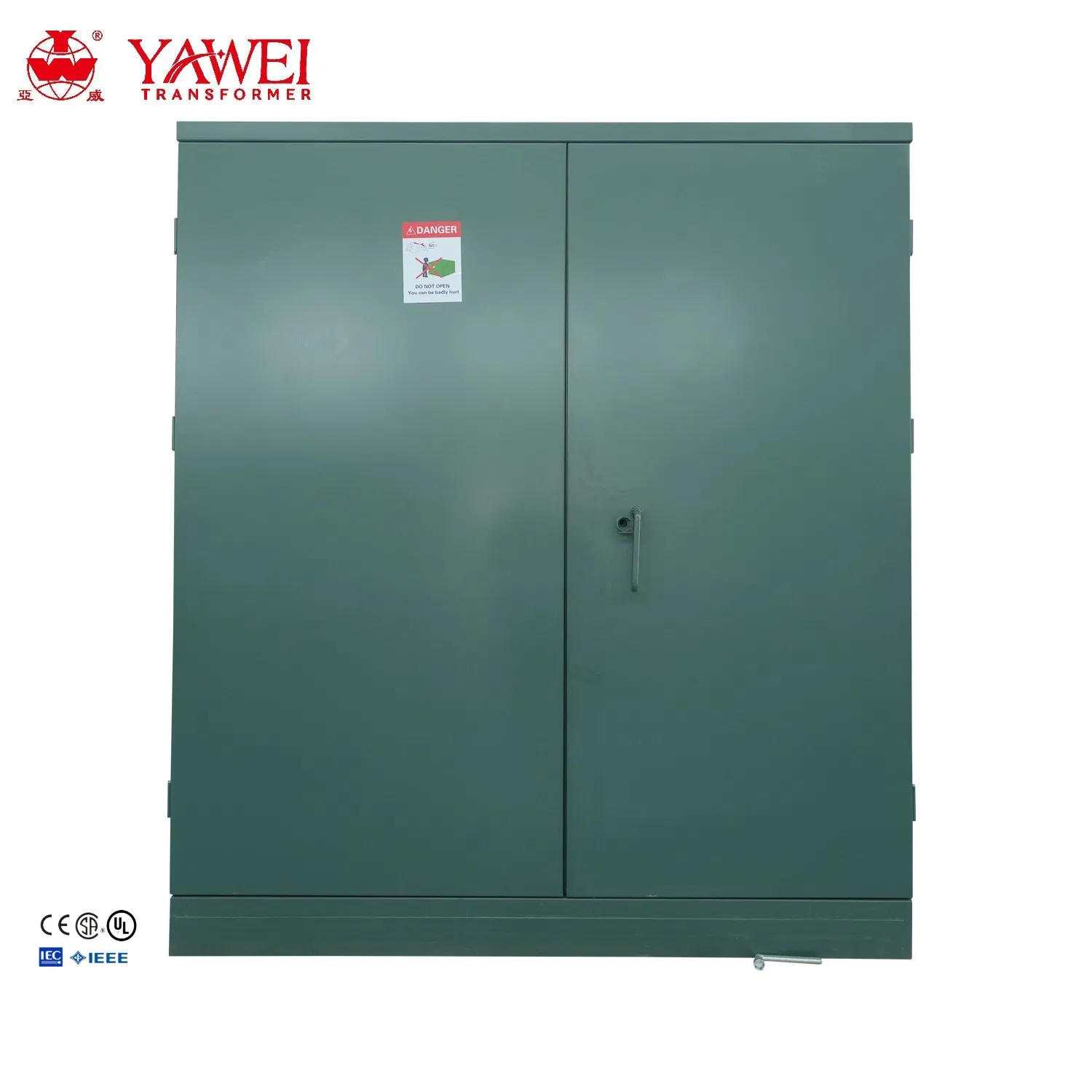

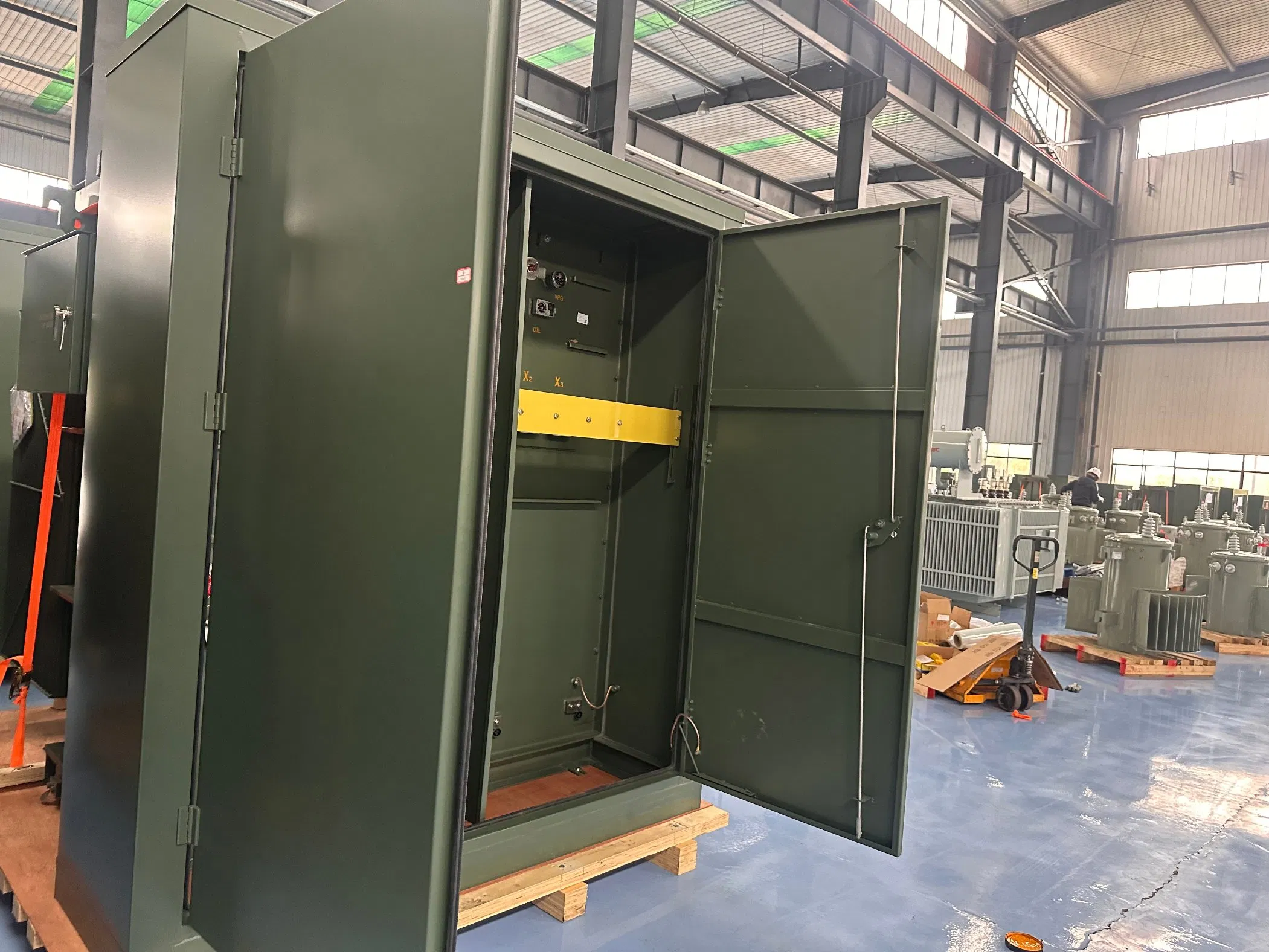

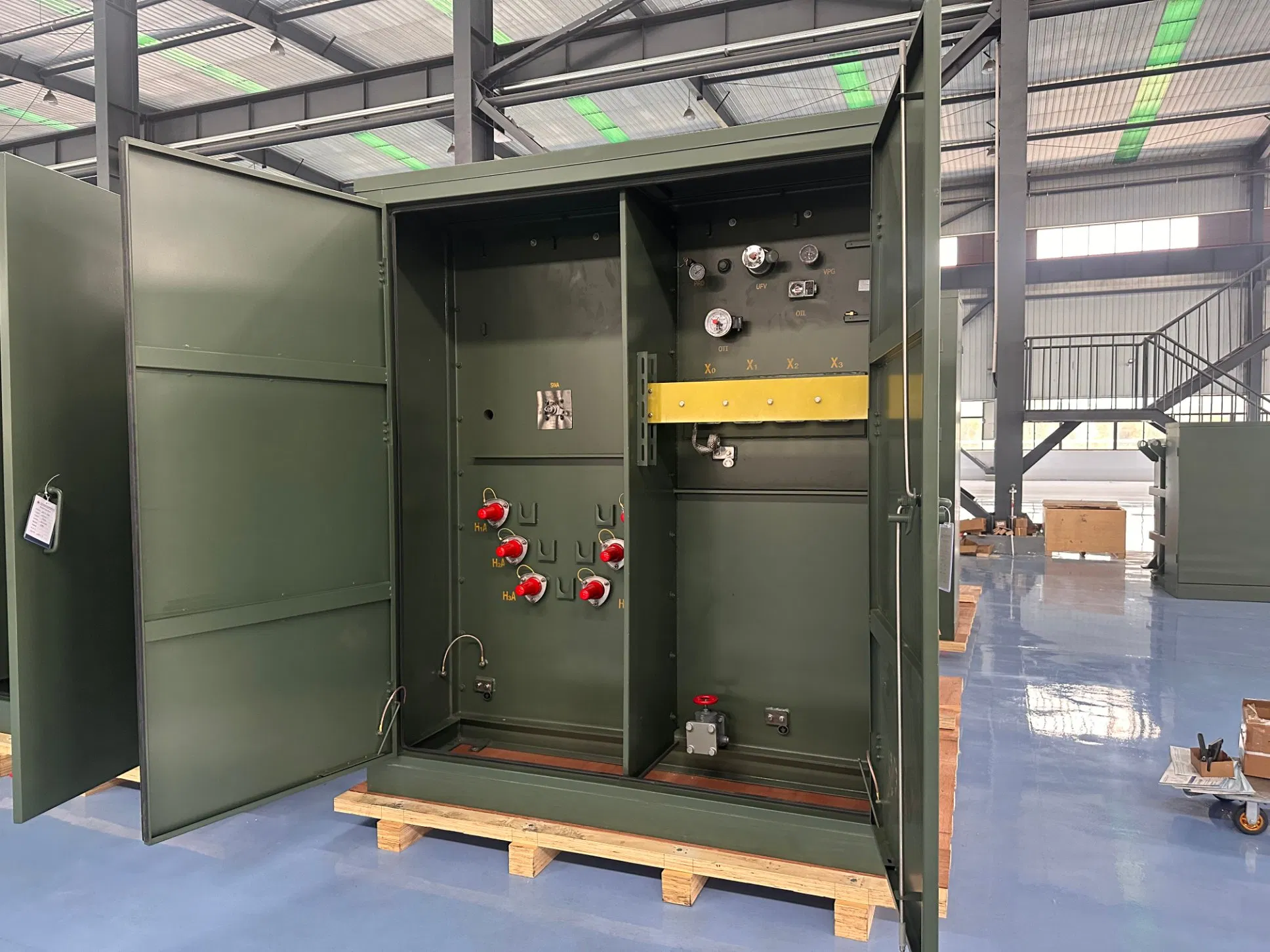

Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers
Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers
Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers
Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers
Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers
1 / 5
Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers
Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers
Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers
Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers
Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers

Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers

Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

Basic Information
Model NO.
ZGS11
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Usage
Power Transformer, Distribution Transformer
Frequency
Power Frequency (50Hz/60Hz)
Shape of Core
Ring
Rated Capacity
2000kVA 1600kVA
Winding Material
Copper/Aluminum
Warranty
24 Months
Cooling
ONAN/KNAN
Product Description

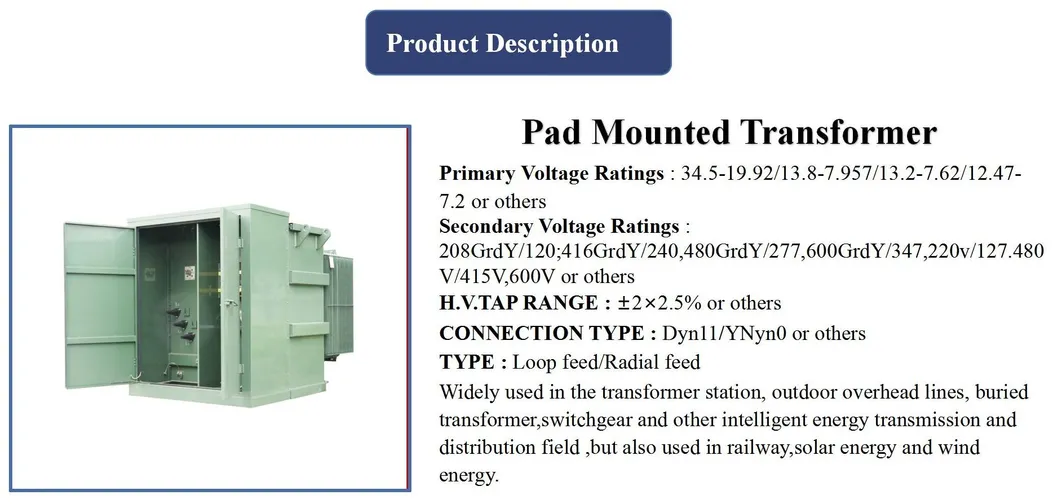

Pad-Mounted Transformer

ZGS11-H(Z) Combined Transformer

The ZGS11 series combined transformer is an innovative power distribution equipment designed with a compact volume and optimized structure. This combined transformer is specifically engineered for load centers in urban power grids, effectively reducing power consumption while significantly enhancing the quality of the power supply.

Widely applicable to residential communities, public facilities, and industrial mining enterprises.

✔
Safety: Fully sealed and insulated structure ensures complete personal security.
✔
Versatility: Suitable for both ring network and terminal distribution systems.
✔
Efficiency: Features low loss, low noise, and superior operational performance.
✔
Durability: Excellent low-temperature performance and high overload capability.
Technical Specifications
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss On-load Loss
75KVA34.5KV / 19.92KV / 13.8KV / 13.2KV / 12.47KV / 7.2KV / Others240V / 480V / 277V / 600V / 347V1801250
150KVA2802200
300KVA4803650
500KVA6805100
1000KVA115010300
2000KVA216020645
3750KVA412537875
Product Gallery

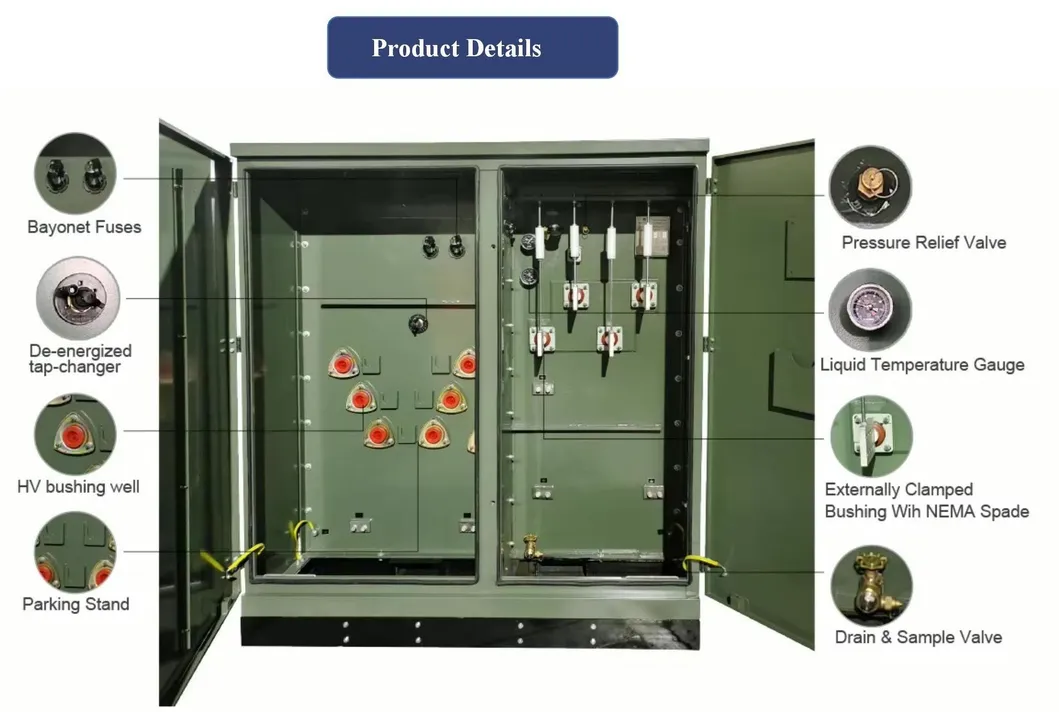

Transformer Details
Equipment View
Internal View
Production Facilities

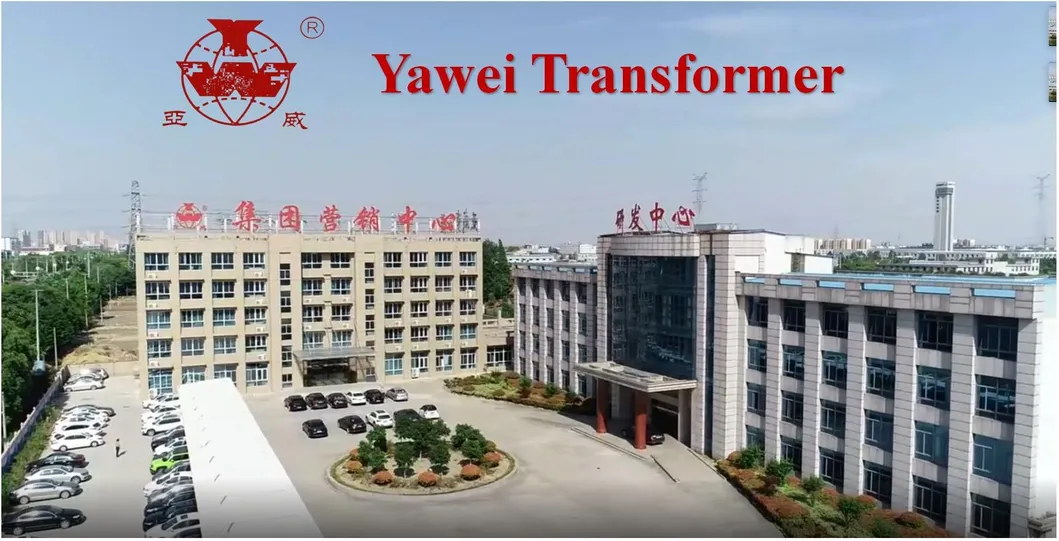

Workshop
Manufacturing
Quality Control
Testing Area
Assembly Line
Final Product
Frequently Asked Questions
What are the main advantages of the ZGS11 combined transformer?
The ZGS11 series offers a compact structure, low operational noise, and minimal energy loss. Its fully sealed design ensures high safety levels for both the equipment and personnel.
Where are these pad-mounted transformers typically used?
They are ideal for urban load centers, residential communities, public parks, and industrial mining sites where space is limited and safety is a priority.
Can the ZGS11 be used in a ring network system?
Yes, this series is versatile and can be configured for both ring network and terminal distribution applications.
What is the warranty period for this equipment?
We provide a 24-month warranty period to ensure long-term reliability and customer satisfaction.
How does the oil-immersed cooling method benefit the transformer?
The oil-immersed (ONAN/KNAN) method provides efficient heat dissipation, ensuring the transformer maintains a low operating temperature even under significant load.
Are these transformers certified for international standards?
Yes, the products are manufactured under strict quality control and carry ISO9001 and CCC certifications.
